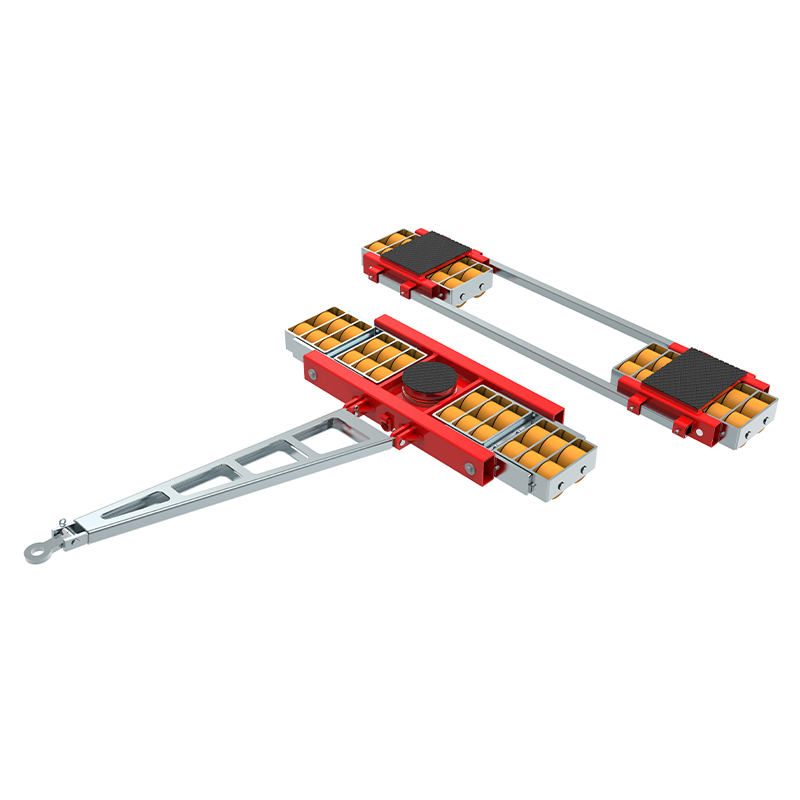

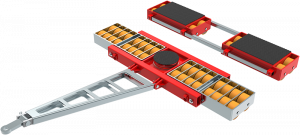

Transportfahrwerk ECO-Skate mit Dreipunktauflage

Carrinhos de transporte ECO-Skate

Com os seus carrinhos de transporte ECO-Skate, a HTS oferece a maior seleção de soluções do mundo para o transporte de cargas pesadas. Tecnologia de rolos, alturas de instalação e capacidades de carga disponíveis - tudo num só fabricante.
Rodas blindadas da HTS
Os rodízios blindados ECO-Skate estão disponíveis numa vasta gama de séries e modelos. São robustos, fáceis de manusear e praticamente isentos de manutenção. A aplicação clássica é o transporte de máquinas, mas os carrinhos de transporte profissionais ECO-Skate também são utilizados em linhas de produção ou para o transporte de contentores.

Made in Germany

O material rodante pesado ECO-Skate para uso diário no sector profissional caracteriza-se pelas seguintes caraterísticas:

  • Design compacto
  • Rodas de poliuretano e nylon de alta qualidade como padrão em todos os carrinhos de transporte ECO-Skate
  • O revestimento de borracha antiderrapante evita que a carga escorregue durante o transporte.
  • Superfícies revestidas a pó ou galvanizadas
  • Combinabilidade - os carrinhos de diferentes séries com a mesma altura total podem ser combinados entre si, conforme necessário

Para todas as áreas de aplicação em que o equipamento standard da gama de séries não é suficiente, concebemos sistemas de transporte como soluções personalizadas, adaptadas individualmente ao cliente.

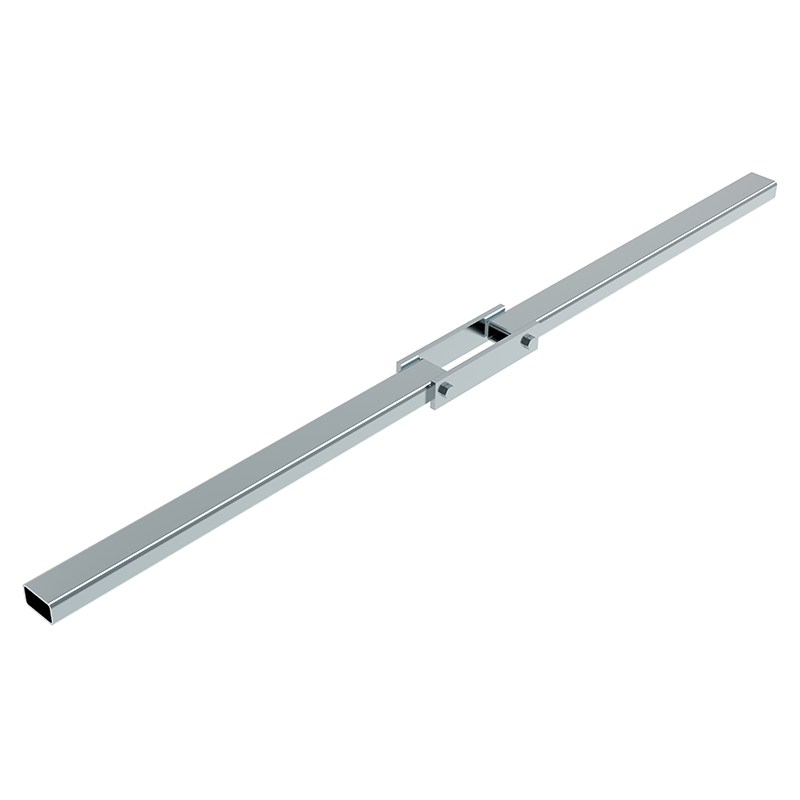

Biela dobrável VIK‑131

HTS ECO-Skate VIK-131
Article Number
940.620.900
Dimensions: Length x Width x Height
1315 x 80 x 40 mm
Weight
4.9 kg
Fits into …
IDEAL

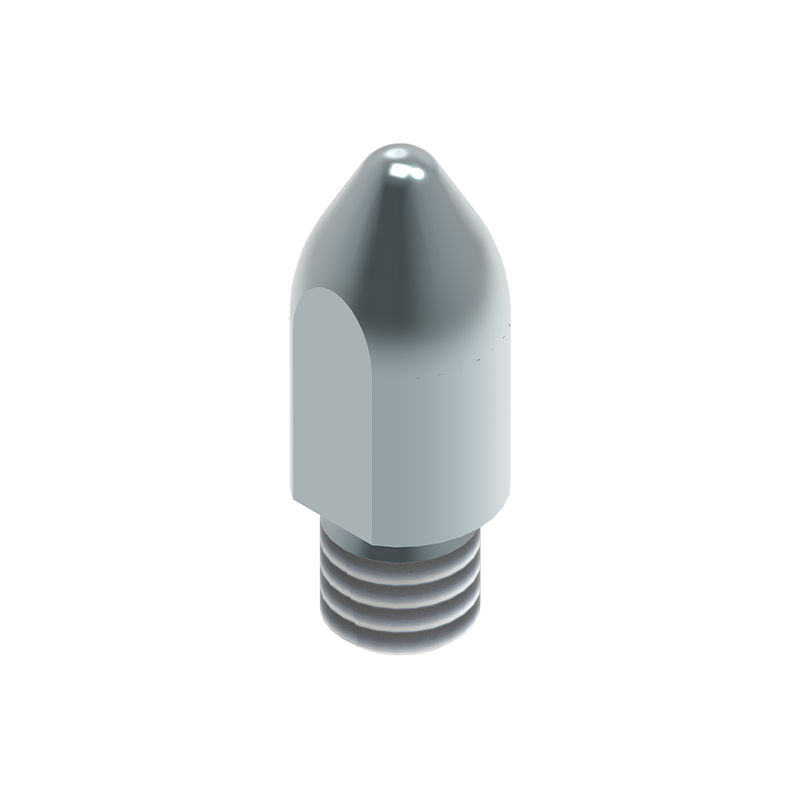

Parafuso central P‑M16

HTS ECO-Skate Zentrierbolzen P-M16
Article Number
911.000.001
Dimensions: Length x Width x Height
56 x 22 x mm
Weight
0.12 kg
Fits into …
SPEZIAL

RMN11 (NY)

ECO-Skate Roto Mini RMN11 (NY)
Article Number
10.011.08.40
Max. Capacity
1100 kg
Wheels
5 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 50 x 46 / Ø 15 mm
Load Areas x (Length x Width)
75 x 75 mm
Dimensions: Length x Width x Height
385 x 330 x 60 mm
Weight
9.8 kg

Biela VX‑20

Article Number
941.620.900
Dimensions: Length x Width x Height
2000 x 50 x 50 mm
Weight
11 kg
Fits into …
XL

Biela VM‑120

Article Number
940.222.912
Dimensions: Length x Width x Height
1200 x 15 x mm
Weight
1.7 kg
Fits into …
MINI

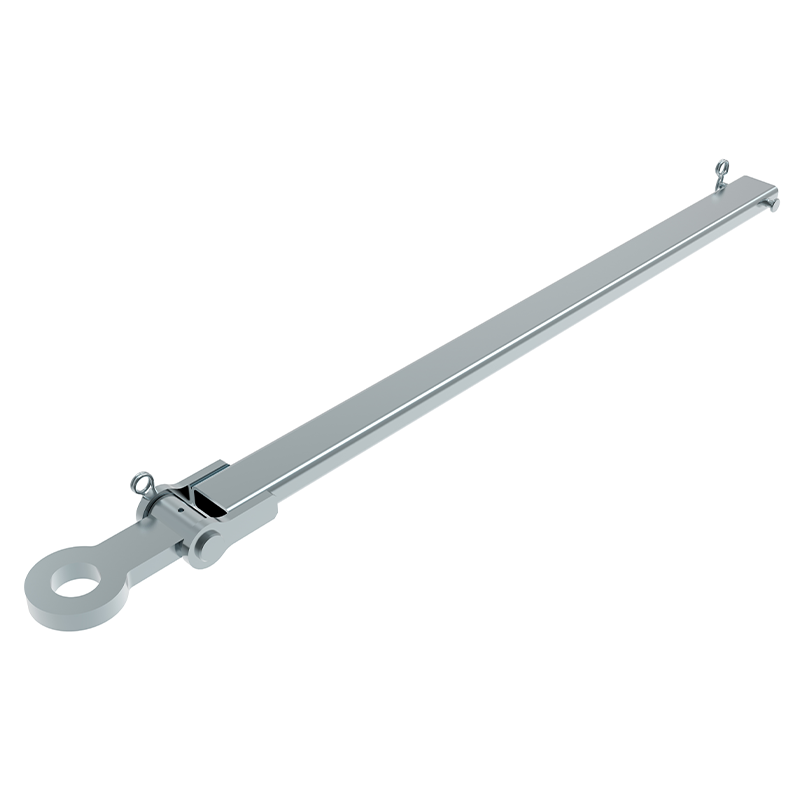

Barra de tração D1‑O

HTS ECO-Skate Deichselset D1-O
Article Number
100.009.015
Handle Length
1180 mm
Dimensions: Length x Width x Height
1000 x 100 x 30 mm
Fits into …
MINI, IDEAL, ROTO

Biela VM‑80

Article Number
940.222.900
Dimensions: Length x Width x Height
800 x 15 x mm
Weight
1.2 kg
Fits into …
MINI

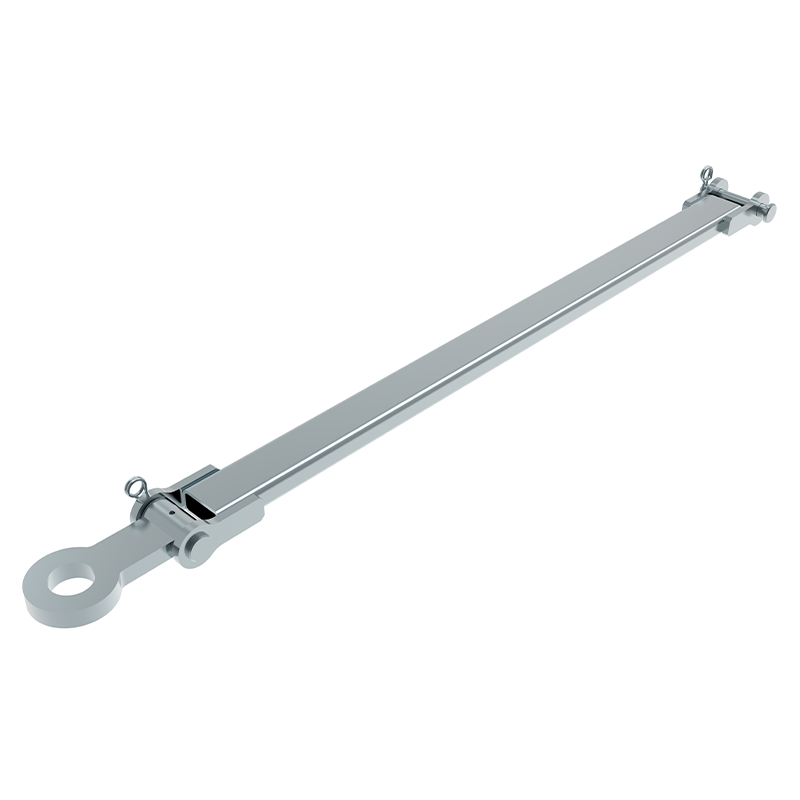

Barra de tração D2

HTS ECO-Skate Deichselset D2
Article Number
100.009.020
Handle Length
1200 mm
Dimensions: Length x Width x Height
1100 x 100 x 30 mm
Fits into …
IDEAL

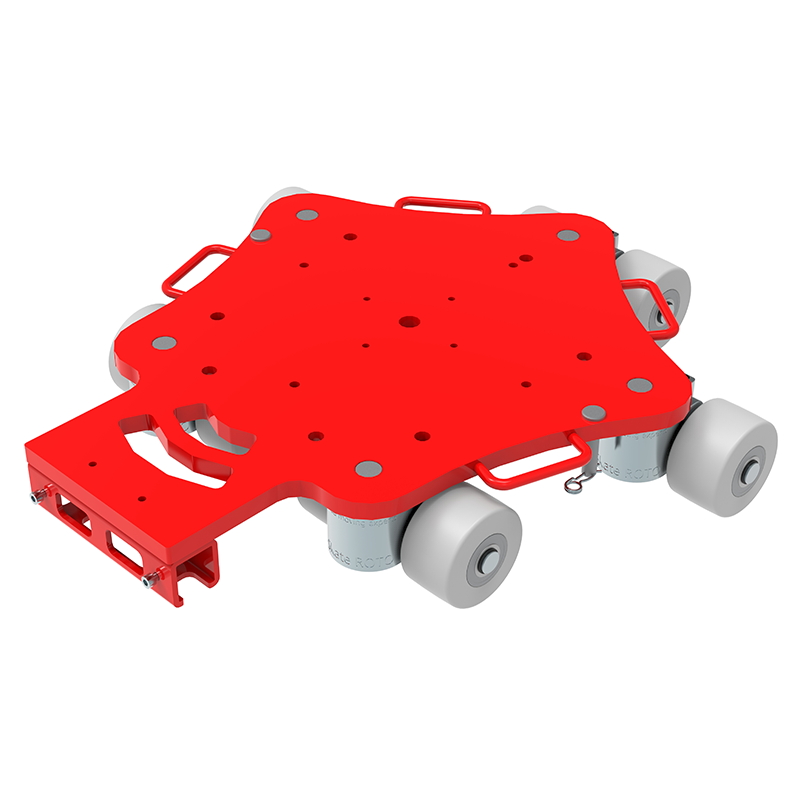

RFXN20‑G (NY)

ECO-Skate ROTOflex XL - RFXN20-G NY
Article Number
10.200.03.40
Max. Capacity
20000 kg
Wheels
10 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas
n.A.
Dimensions: Length x Width x Height
1000 x 915 x 180 mm
Weight
170 kg

Biela VM‑150

Article Number
940.222.915
Dimensions: Length x Width x Height
1500 x 15 x mm
Weight
2.1 kg
Fits into …
MINI

RFXN20 (NY)

ECO-Skate ROTOflex XL - RFXN20 NY
Article Number
10.200.03.41
Max. Capacity
20000 kg
Wheels
10 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diameter
Ø 220 mm
Dimensions: Length x Width x Height
1000 x 915 x 180 mm
Weight
170 kg

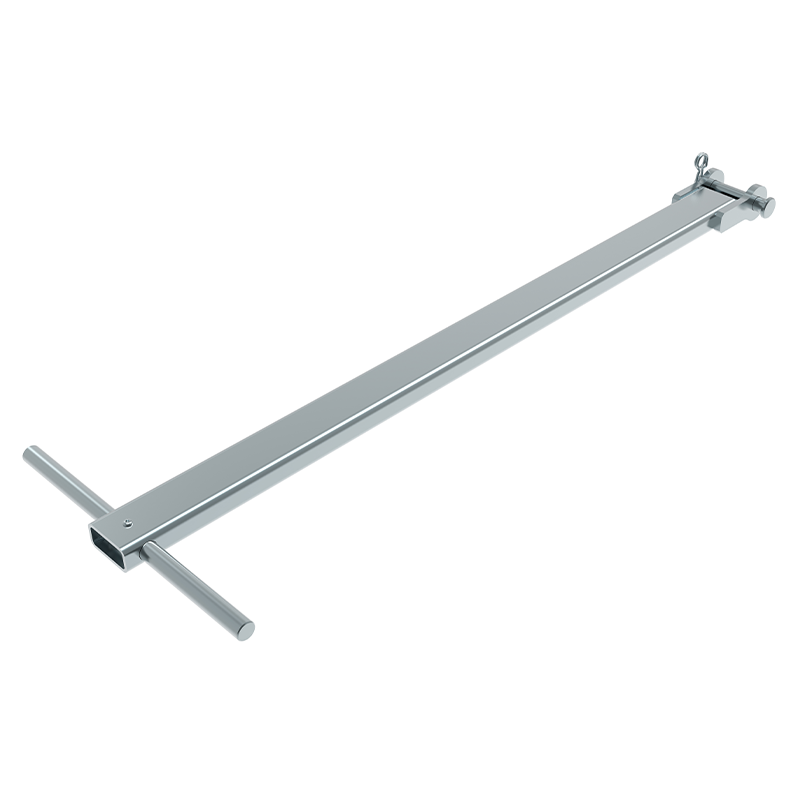

Barra de tração D2‑T

HTS ECO-Skate Deichselset D2-T
Article Number
100.009.025
Handle Length
1040 mm
Dimensions: Length x Width x Height
1100 x 350 x 30 mm
Fits into …
IDEAL

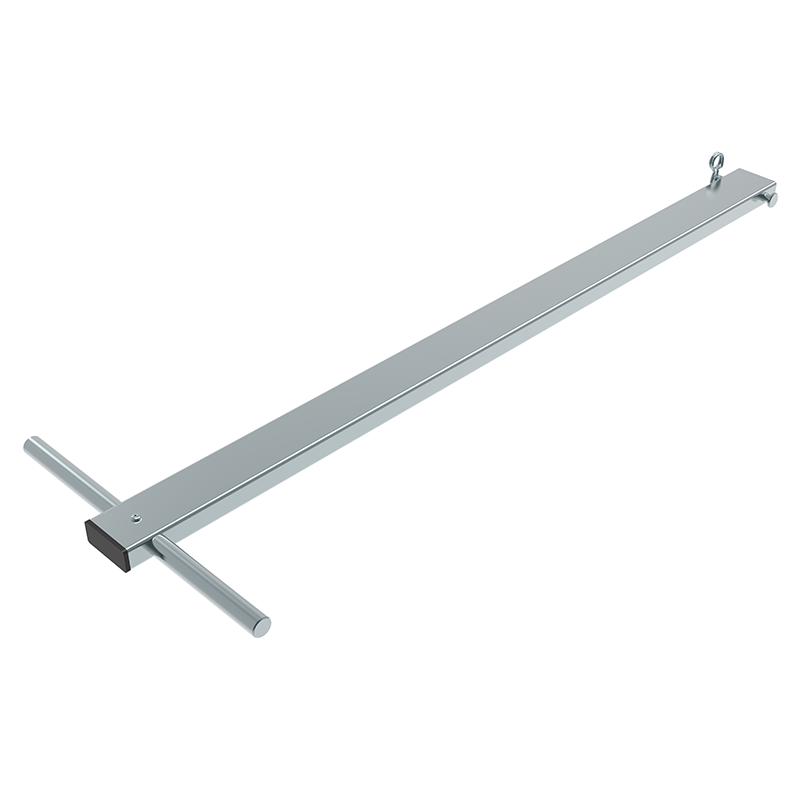

Barra de tração D1

HTS ECO-Skate Deichselset D1
Article Number
100.009.010
Handle Length
1000 mm
Dimensions: Length x Width x Height
1000 x 350 x 30 mm
Fits into …
MINI, IDEAL, ROTO

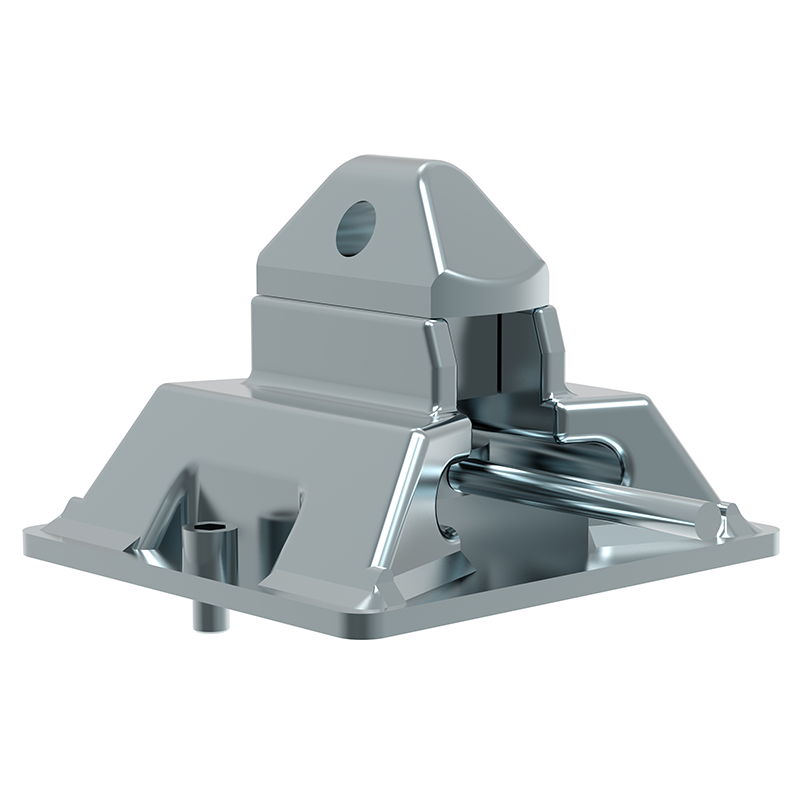

Placa de adaptação AP‑TLS

HTS ECO-Skate Adapterplatte AP-TLS
Article Number
940.010.002
Dimensions: Length x Width x Height
195 x 180 x 134 mm
Weight
9 kg
Fits into …
ROTO, ROTO XL

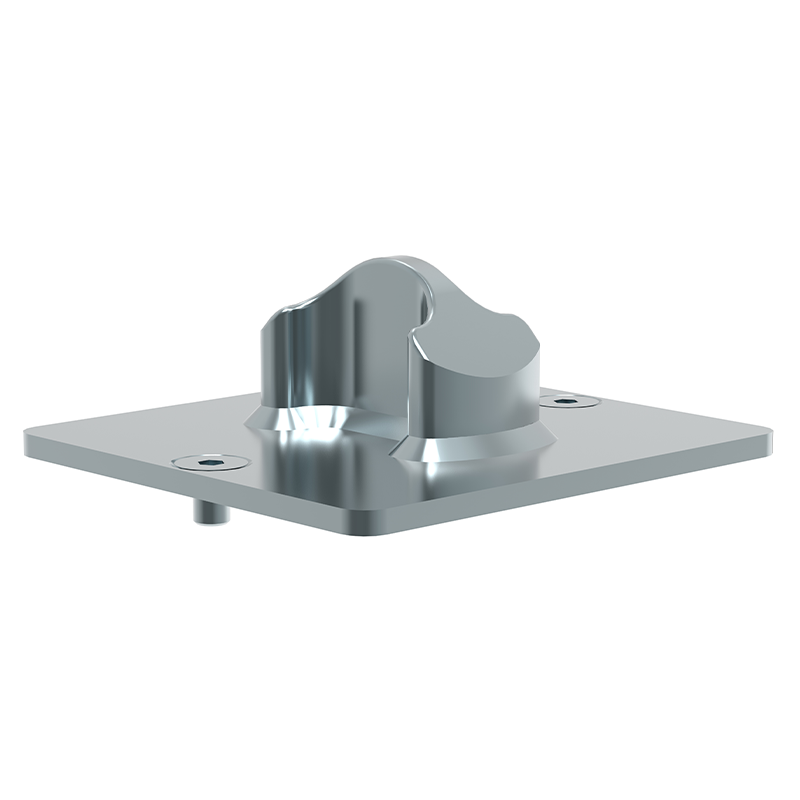

Placa de adaptação AP‑C

HTS ECO-Skate Adapterplatte AP-C
Article Number
940.010.003
Dimensions: Length x Width x Height
195 x 180 x 68 mm
Weight
3.1 kg
Fits into …
ROTO, ROTO XL

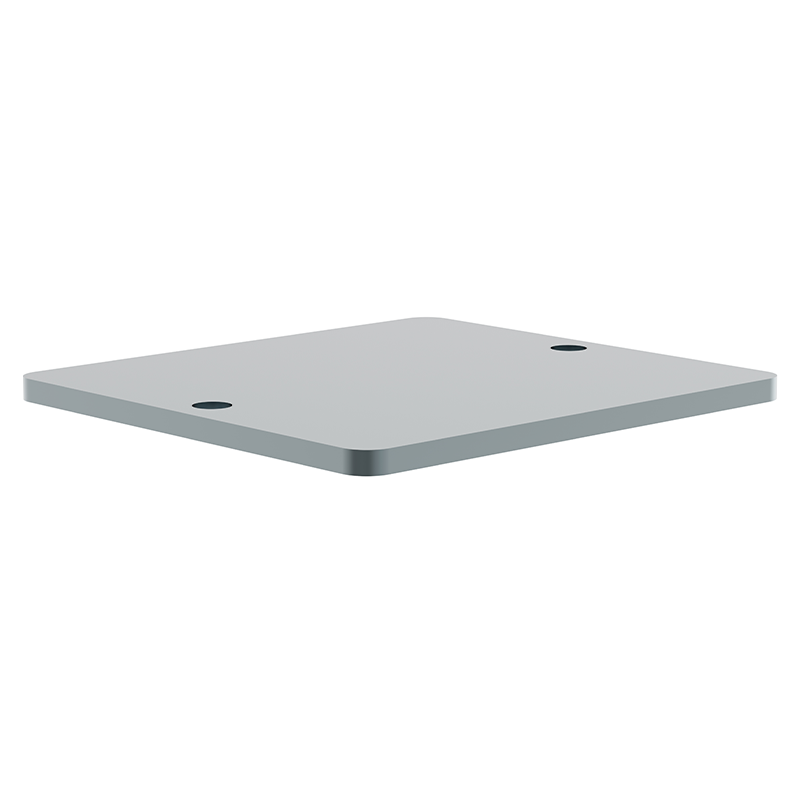

Placa de adaptação AP

HTS ECO-Skate Adapterplatte AP
Article Number
940.010.001
Dimensions: Length x Width x Height
195 x 180 x 8 mm
Weight
2.2 kg
Fits into …
ROTO, ROTO XL

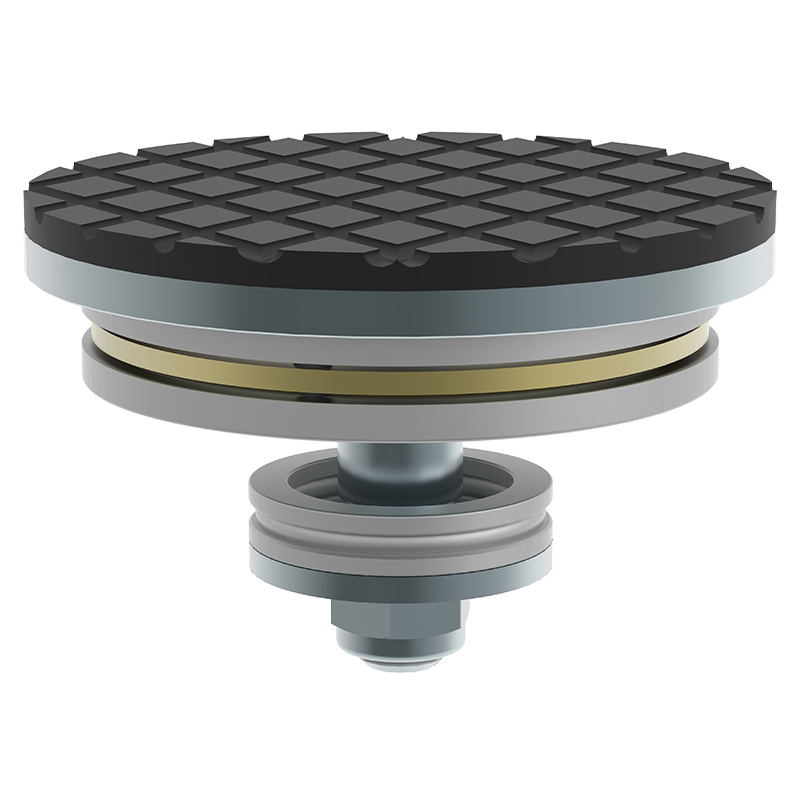

Conjunto de gira‑discos DTR‑XL

HTS ECO-Skate Drehtellerset DTR-XL
Article Number
940.010.009
Load Area Diameter
Ø 170 mm
Weight
4.2 kg
Fits into …
ROTO XL

Biela VI‑30

HTS ECO-Skate VI-20 VI-25 VI-30
Article Number
940.620.930
Dimensions: Length x Width x Height
3000 x 50 x 30 mm
Weight
10.2 kg
Fits into …
IDEAL

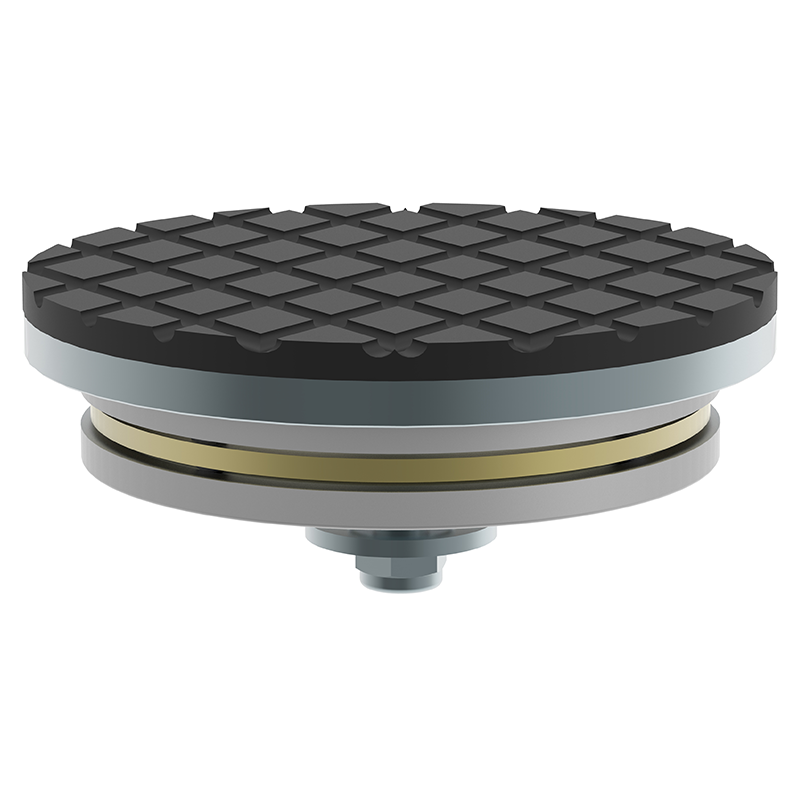

Conjunto de gira‑discos DTR‑I2

HTS ECO-Skate Drehtellerset DTR-I2
Article Number
940.010.007
Load Area Diameter
Ø 170 mm
Weight
3.6 kg
Fits into …
ROTO

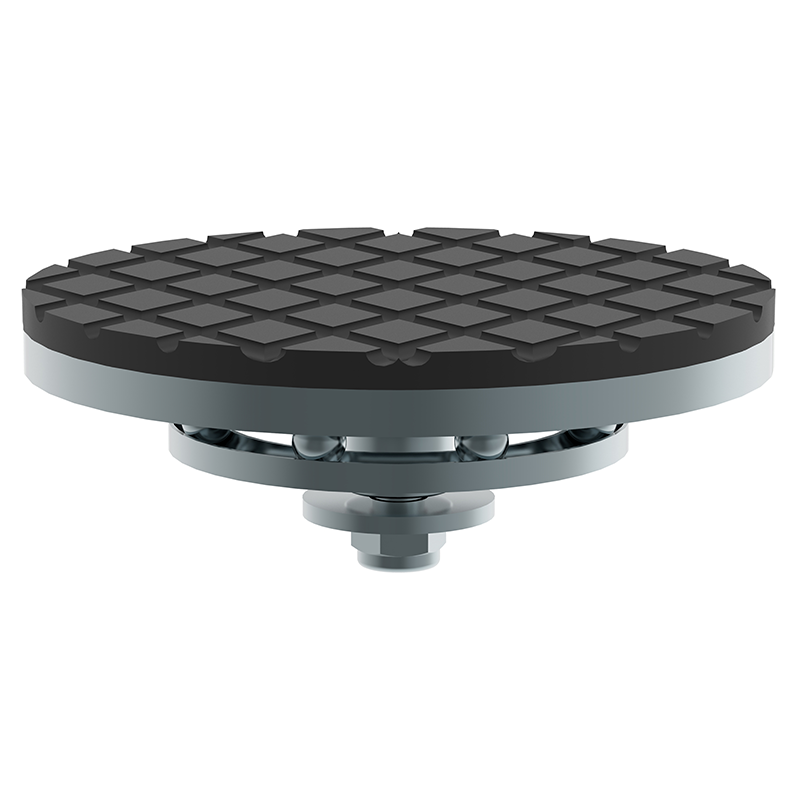

Conjunto de gira‑discos DTR‑I1

HTS ECO-Skate Drehtellerset DTR-I1
Article Number
940.010.006
Load Area Diameter
Ø 170 mm
Weight
2.1 kg
Fits into …
ROTO

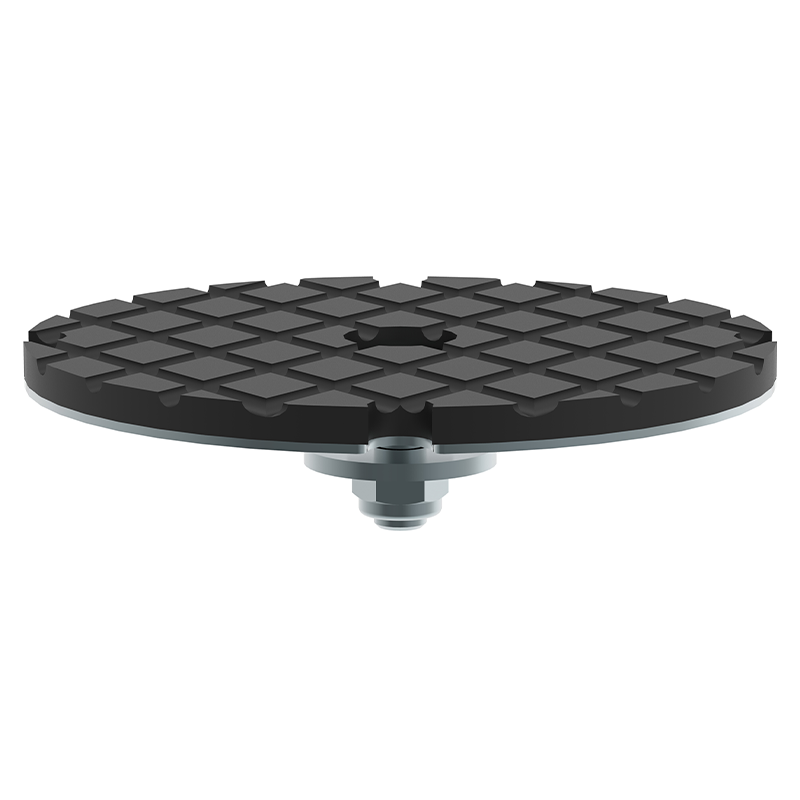

Revestimento de borracha aparafusado GAR

HTS ECO-Skate Gummibelag schraubbar GAR
Article Number
940.010.008
Load Area Diameter
Ø 170 mm
Weight
0.7 kg
Fits into …
ROTO

Barra de tração DRXL

Article Number
100.009.051
Handle Length
1620 mm
Weight
25 kg
Fits into …
ROTO XL

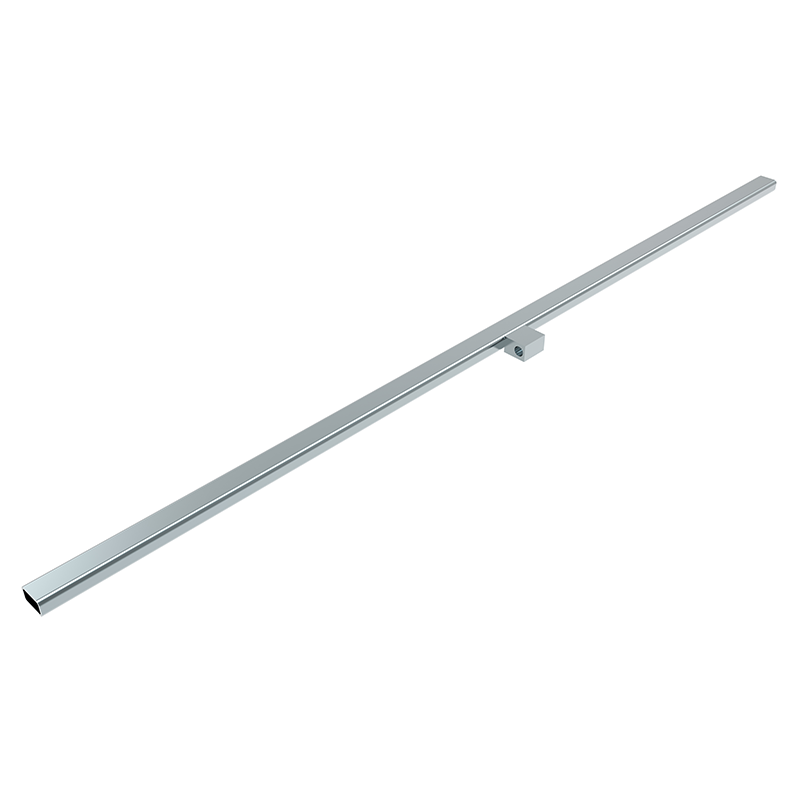

Biela VI‑25A

HTS ECO-Skate Verbindungsstange VI-20A / VI-25A
Article Number
940.255.000
Dimensions: Length x Width x Height
2500 x 100 x 30 mm
Weight
8.6 kg
Fits into …
ROTO

Biela VI‑25

HTS ECO-Skate VI-20 VI-25 VI-30
Article Number
940.620.925
Dimensions: Length x Width x Height
2500 x 50 x 30 mm
Weight
8.5 kg
Fits into …
IDEAL

Conjunto ICFXN20D (NY) + ICFXN20D (NY)

Max. Capacity
40000 kg

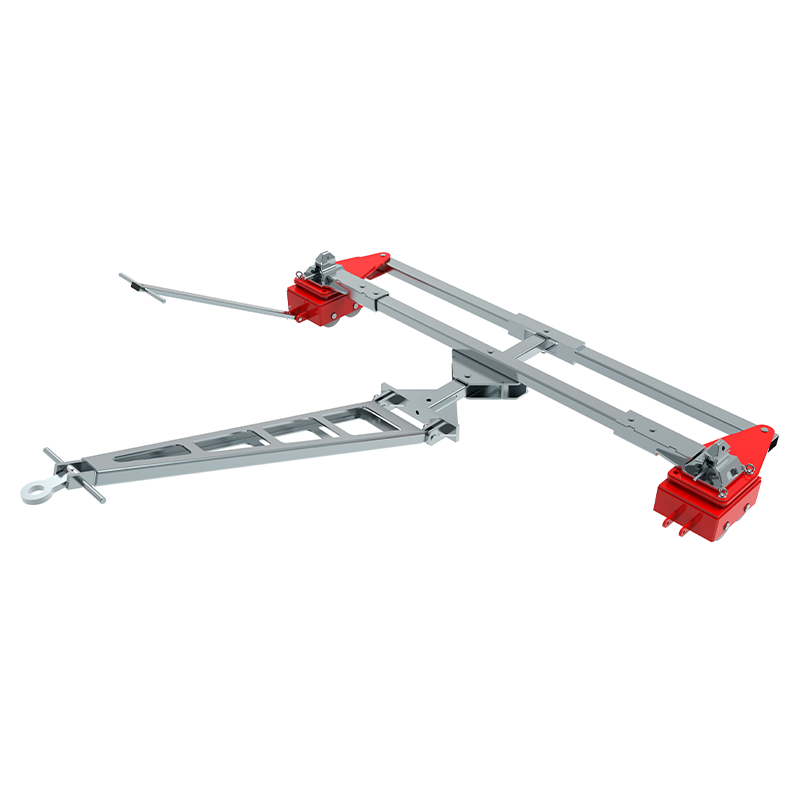

ICFXN20D (NY)

HTS ECO-Skate ISOCONflex XL (NY) - ICFXN20D
Article Number
10.200.03.36
Load Areas x Max. Capacity
2 x 10000 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Handle Length
1620 mm
Distance cone center
2259 mm
Dimensions: Length x Width x Height / Container Lock
1030 x 2537 x 282 / 359 mm
Weight
260 kg

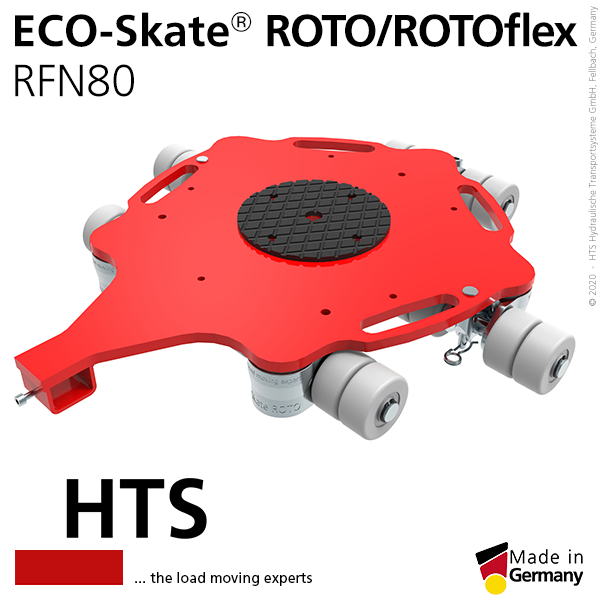

RFN80‑G‑CR (NY)

HTS ECO-Skate ROTO - RFN80-G-CR (NY)
Article Number
12.080.09.40
Max. Capacity
8000 kg
Wheels
20 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Handle Length
1170 mm
Adjustability
922 – 1940 mm
Dimensions: Length x Width x Height
829 x 786 x 102 mm
Weight
59 kg

RFN18‑G‑CR (NY)

HTS ECO-Skate ROTO - RFN18-G-CR (NY)
Article Number
12.018.09.40
Max. Capacity
1800 kg
Wheels
6 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Handle Length
1170 mm
Adjustability
590 – 1940 mm
Dimensions: Length x Width x Height
550 x 467 x 102 mm
Weight
22 kg

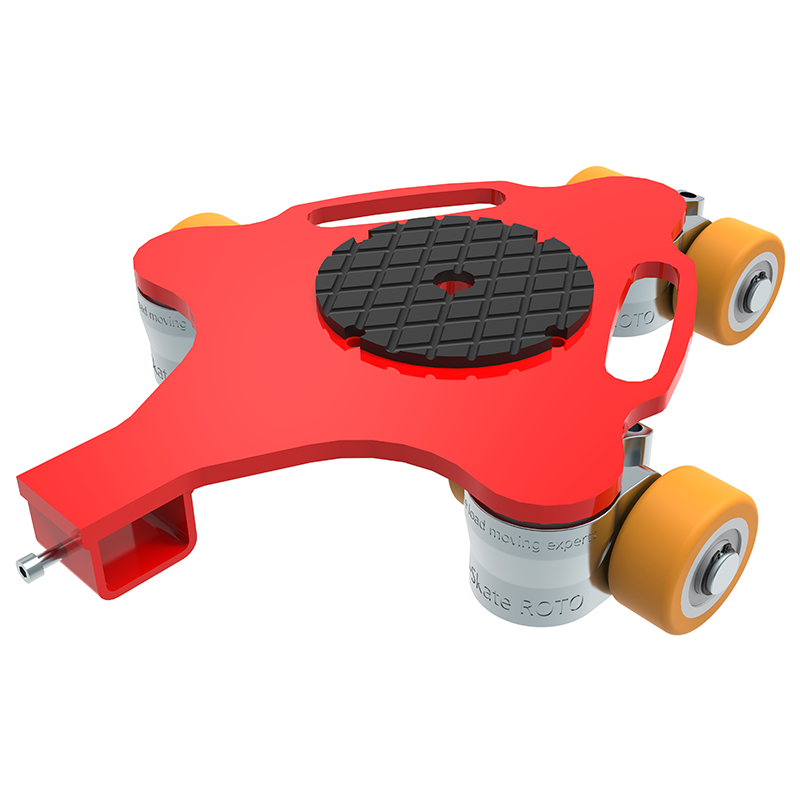

R14 (PU)

ECO-Skate ROTO R14 (PU)
Article Number
10.014.04.41
Max. Capacity
1400 kg
Wheels
6 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Adjustability
590 – 1940 mm
Dimensions: Length x Width x Height
550 x 467 x 110 mm
Weight
24 kg

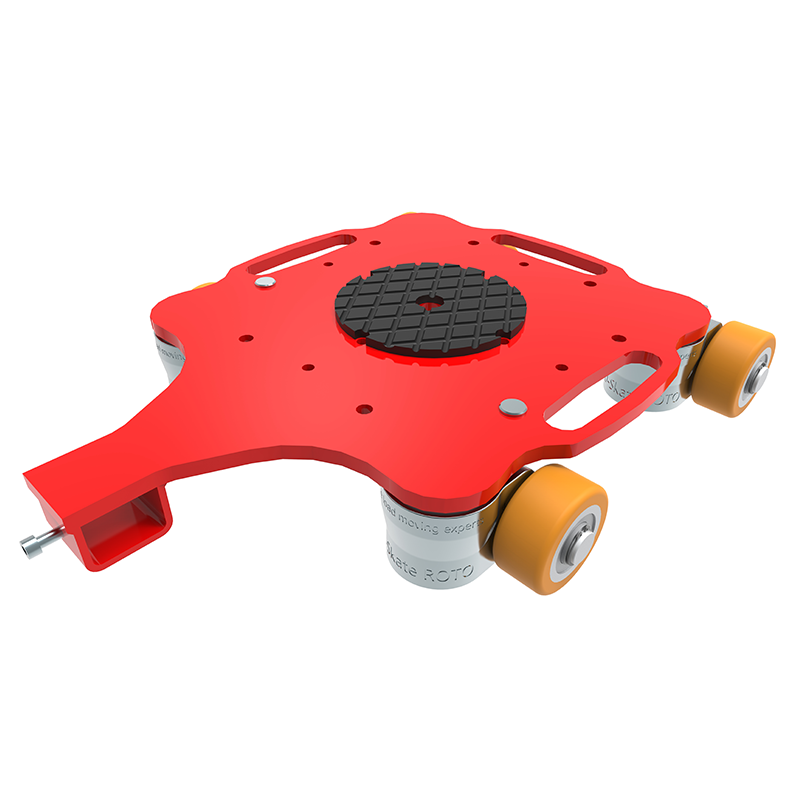

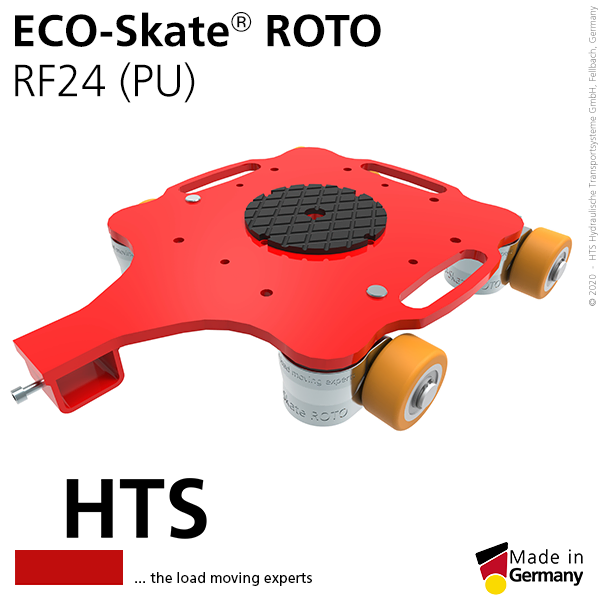

RF24 (PU)

Rotationsfahrwerk ECO-Skate ROTO RF24 (PU)
Article Number
10.024.04.41
Max. Capacity
2400 kg
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Adjustability
540 – 1940 mm
Dimensions: Length x Width x Height
588 x 467 x 110 mm
Weight
36 kg

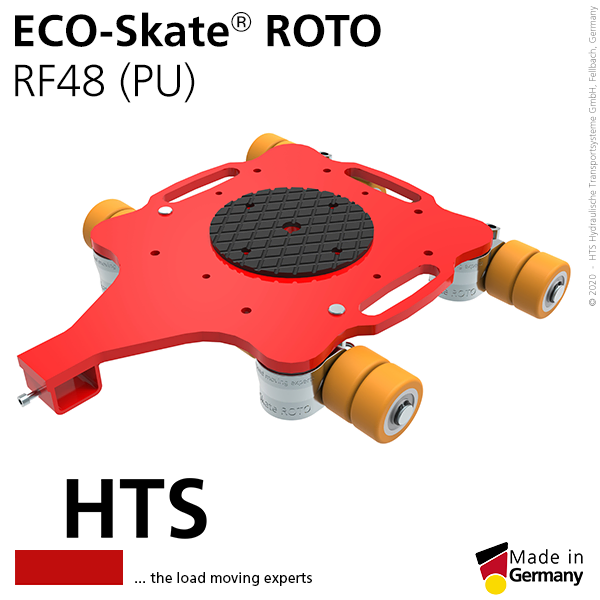

RF48 (PU)

ECO-Skate-ROTO-RF48-PU-174px
Article Number
10.048.04.41
Max. Capacity
4800 kg
Wheels
16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Area Diameter
Ø 220 mm
Handle Length
1170 mm
Adjustability
792 – 1940 mm
Dimensions: Length x Width x Height
650 x 585 x 110 mm
Weight
44 kg

RM9 (PU)

Article Number
10.009.07.40
Max. Capacity
900 kg
Wheels
4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 50 x 46 / Ø 15 mm
Load Areas x (Length x Width)
75 x 75 mm
Dimensions: Length x Width x Height
287 x 225 x 60 mm
Weight
7 kg

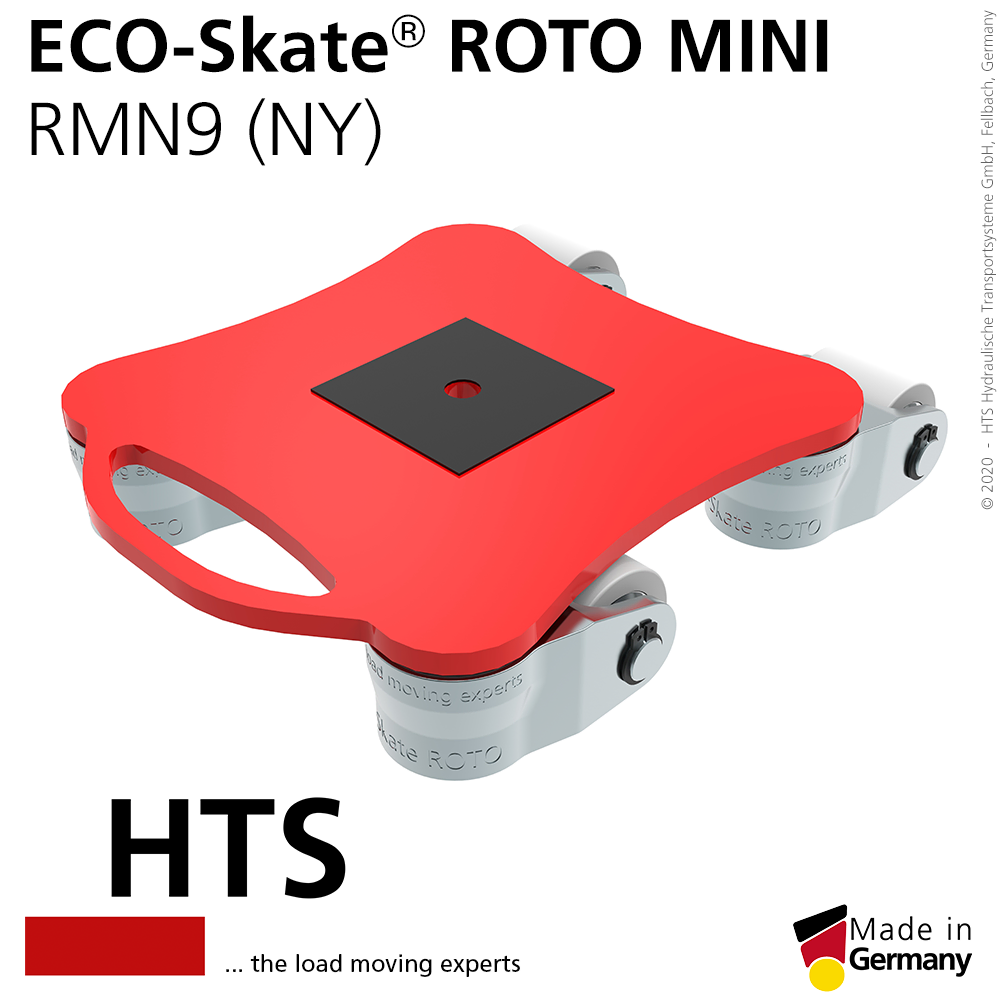

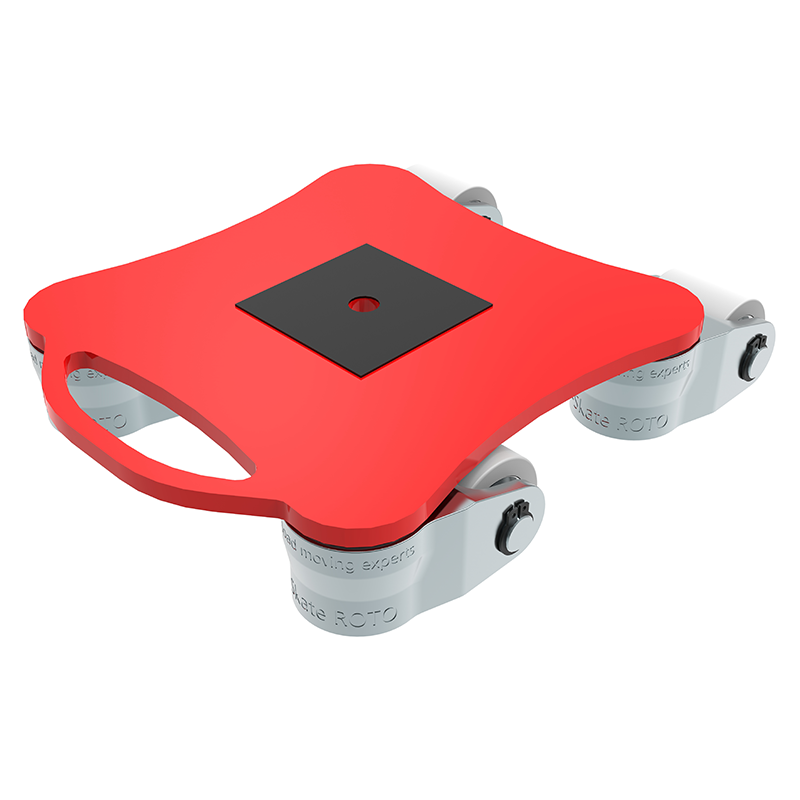

RMN9 (NY)

HTS ECO-Skate ROTO MINI RMN9 (NY)
Article Number
10.009.08.40
Max. Capacity
900 kg
Wheels
4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 50 x 46 / Ø 15 mm
Load Areas x (Length x Width)
75 x 75 mm
Dimensions: Length x Width x Height
287 x 225 x 60 mm
Weight
6 kg

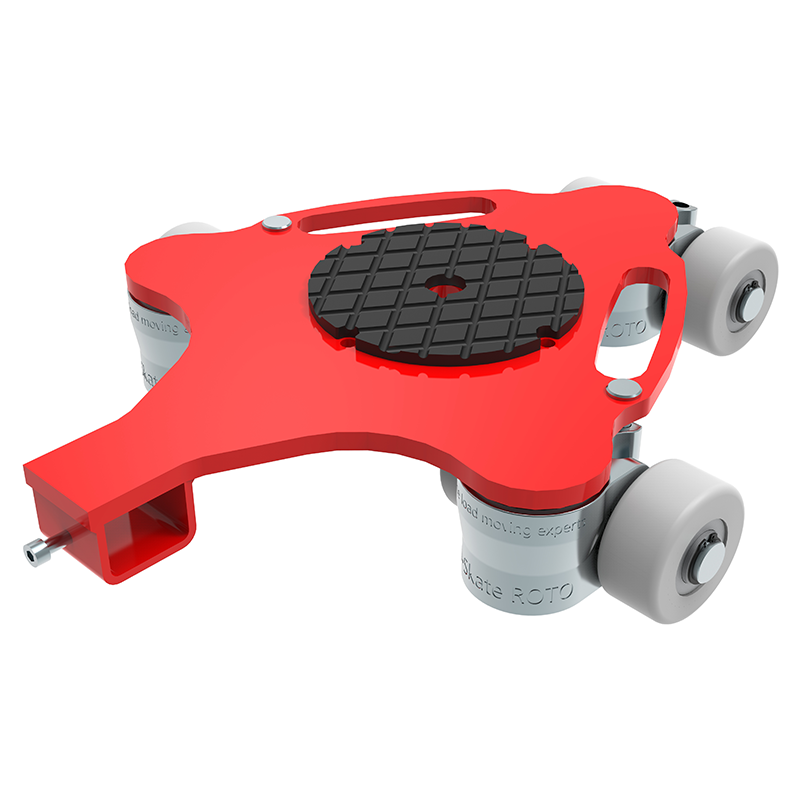

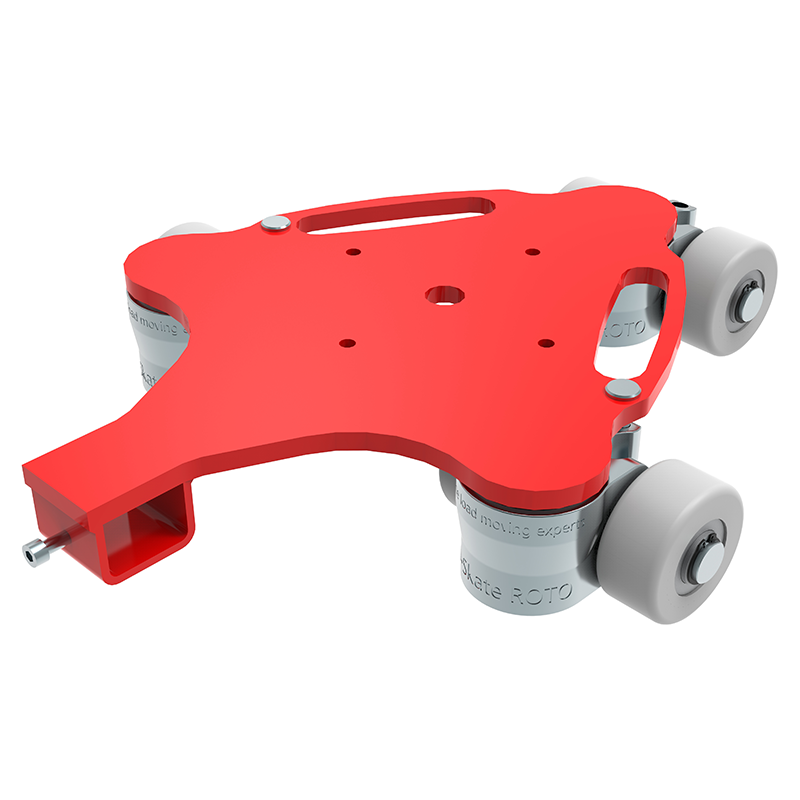

RFN18 (NY)

ECO-Skate ROTOflex RFN18
Article Number
10.018.09.41
Max. Capacity
1800 kg
Wheels
6 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Adjustability
590 – 1940 mm
Dimensions: Length x Width x Height
550 x 467 x 110 mm
Weight
22 kg

PU Ø50x46xØ15

ECO-Skate-Rollen-Polyurethanrollen-PU-Ø50
Article Number
11.050.01.42
Max. Capacity
312.5 kg
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 50 x 46 / Ø 15 mm
Weight
0.26 kg
Fits into …
MINI, ROTO MINI

PU Ø85x43,5xØ25 h

ECO-Skate-Rollen-Polyurethanrollen-PU-Ø85-ROTO-ROTOflex
Article Number
11.085.01.34
Max. Capacity
375 kg
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Weight
0.64 kg
Fits into …
ROTO, ROTOflex

NY Ø50x46xØ15

ECO-Skate-Rollen-Nylonroller-NY-Ø50
Article Number
11.050.11.42
Max. Capacity
312.5 kg
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 50 x 46 / Ø 15 mm
Weight
0.14 kg
Fits into …
MINI, ROTO MINI

NY Ø85x43,5xØ25 h

ECO-Skate-Rollen-Nylonroller-NY-Ø85-ROTO-ROTOflex
Article Number
11.085.11.34
Max. Capacity
500 kg
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Weight
0.36 kg
Fits into …
POWER-Skate IDEAL, ROTO, ROTOflex

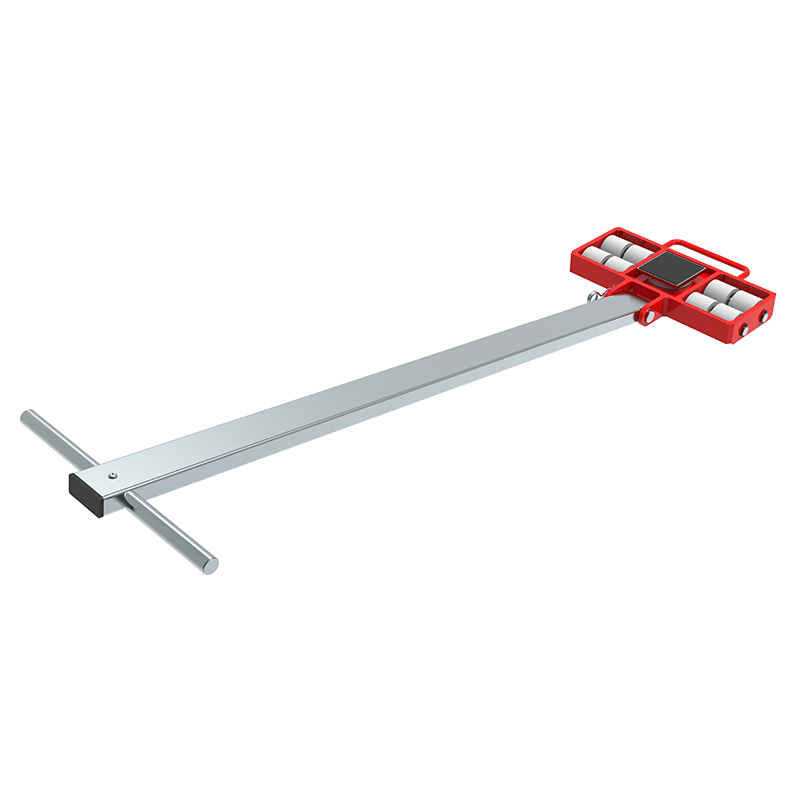

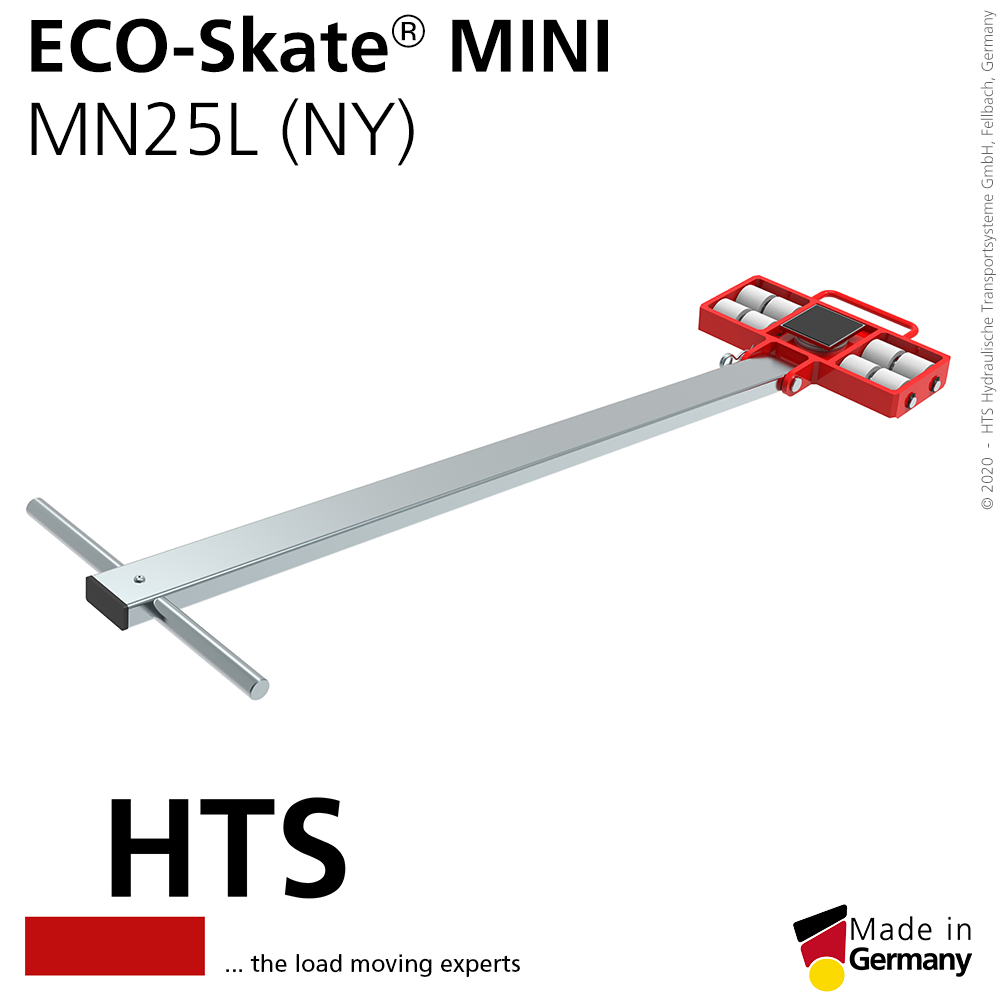

MN25L (NY)

ECO-Skate MINI MN25L (NY)
Article Number
10.025.08.10
Max. Capacity
2500 kg
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 50 x 46 / Ø 15 mm
Load Areas x (Length x Width)
80 x 80 mm
Handle Length
1000 mm
Dimensions: Length x Width x Height
250 x 329 x 60 mm
Weight
10 kg

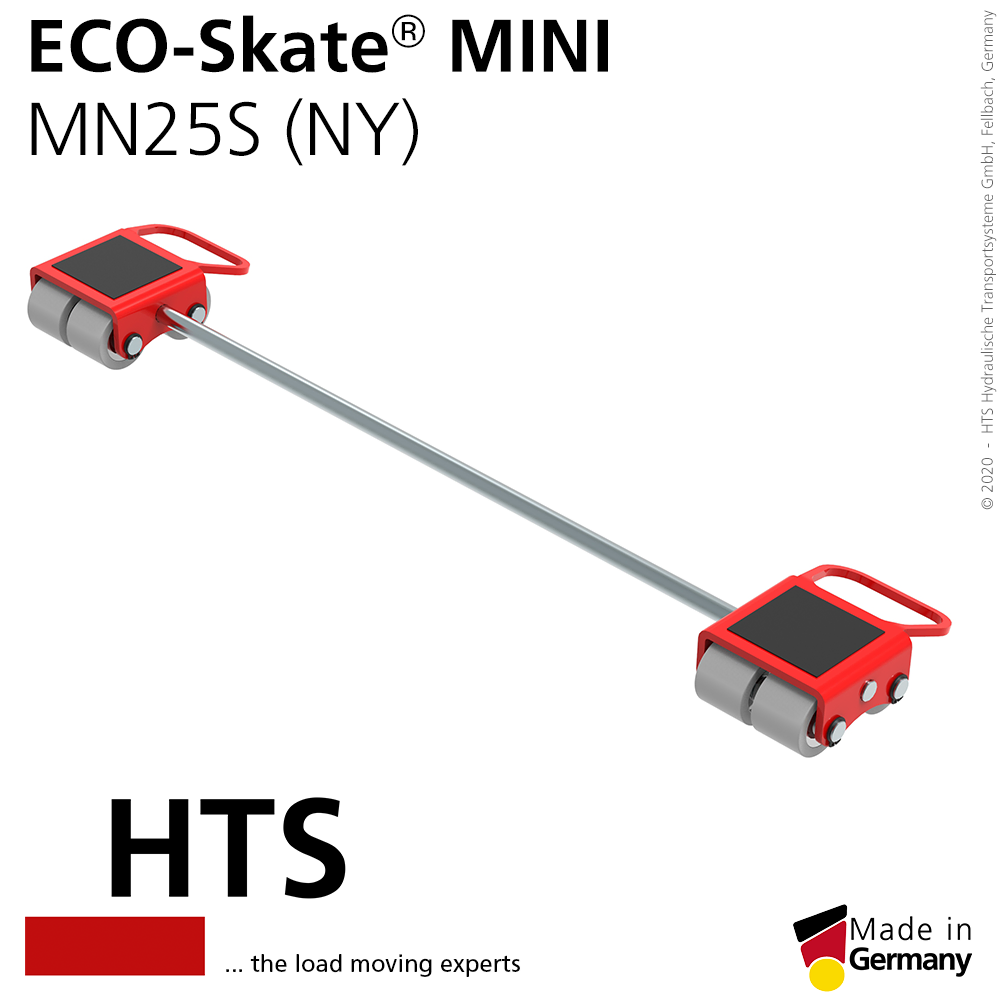

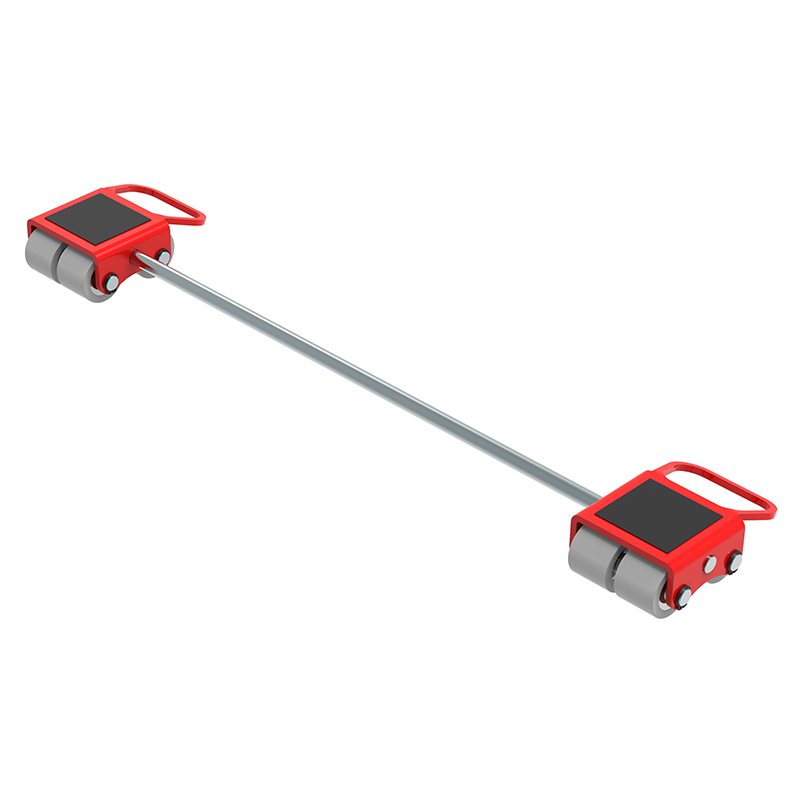

MN25S (NY)

ECO-Skate MINI MN25S (NY)
Article Number
10.025.08.20
Load Areas x Max. Capacity
2 x 1250 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 50 x 46 / Ø 15 mm
Load Areas x (Length x Width)
2 x (75 x 75) mm
Adjustability
110 – 690 mm
Dimensions: Length x Width x Height
162 x 114 x 60 mm
Weight
5 kg

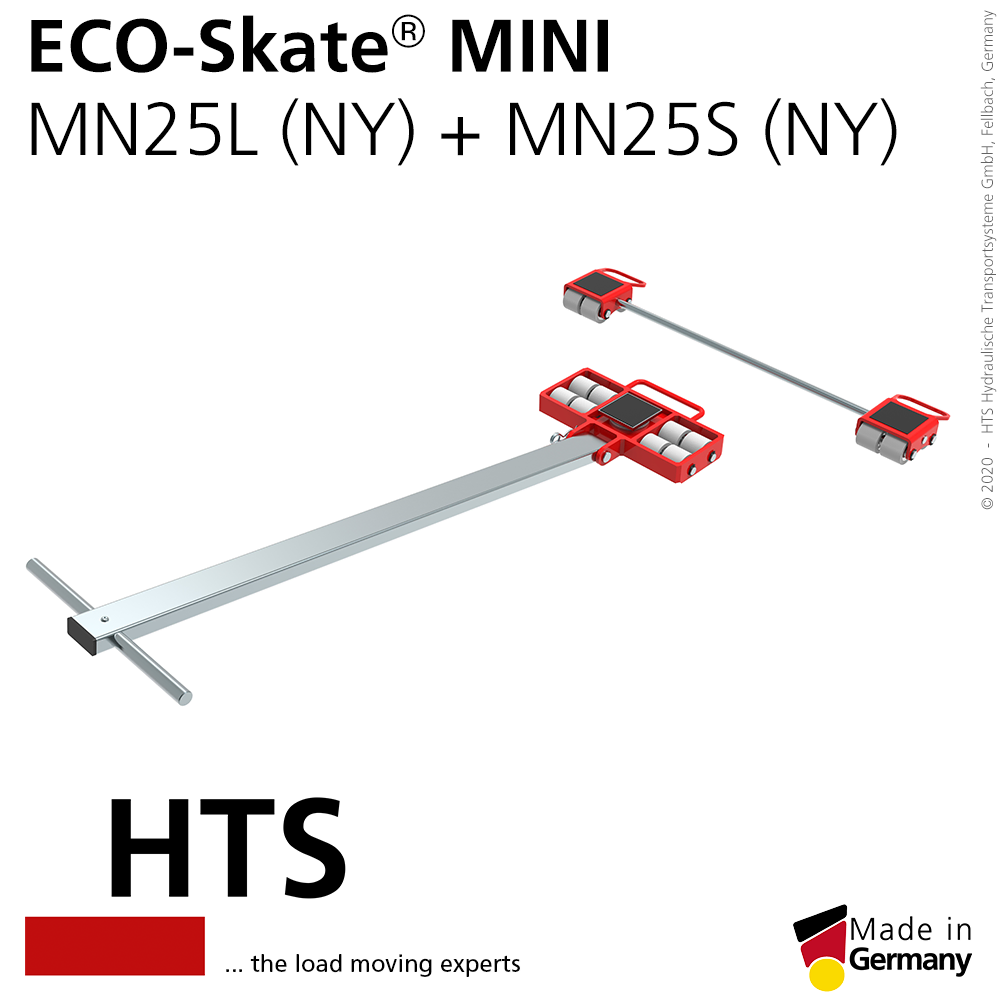

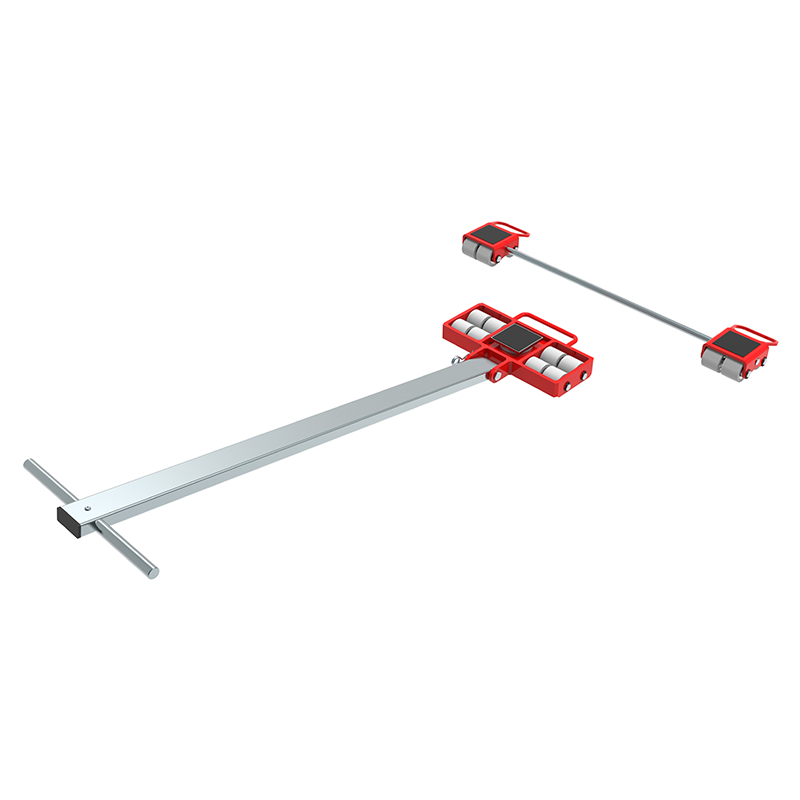

Conjunto MN25L (NY) + MN25S (NY)

ECO-Skate MINI MN25L (NY) + MN25S (NY)
Max. Capacity
5000 kg

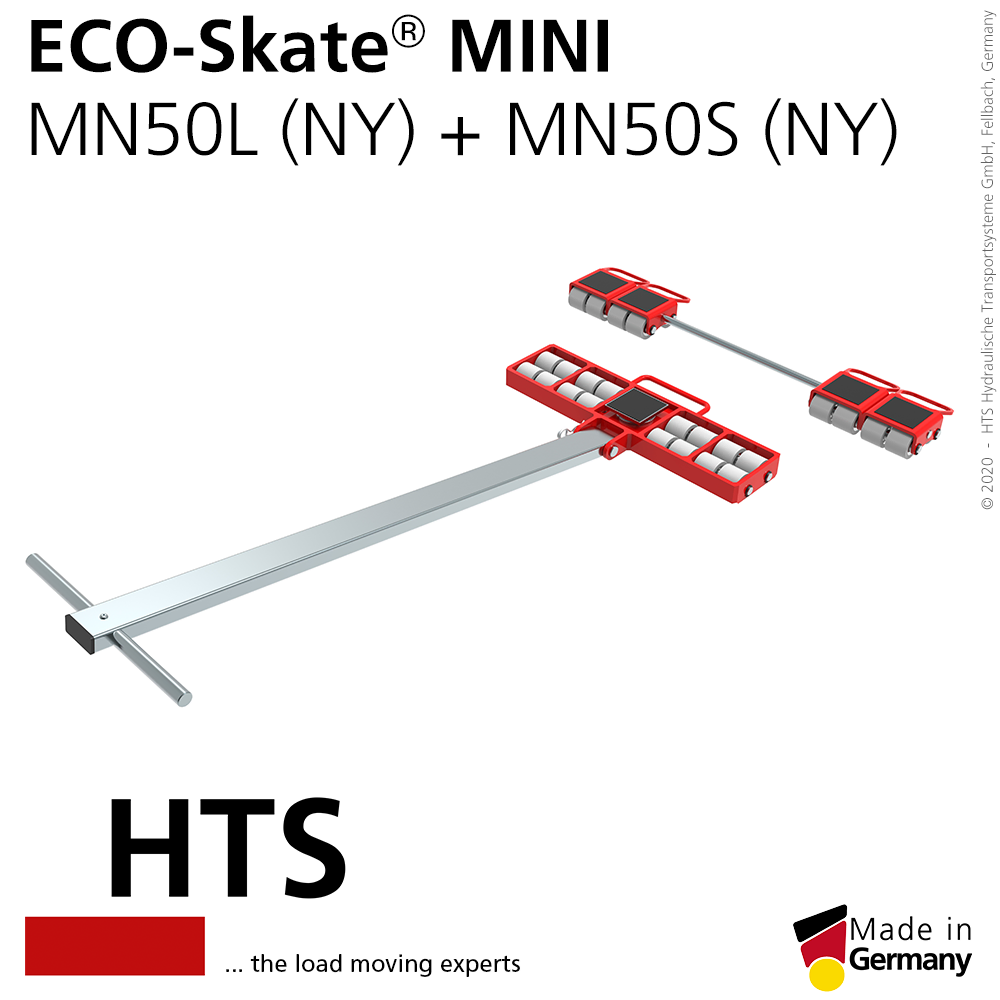

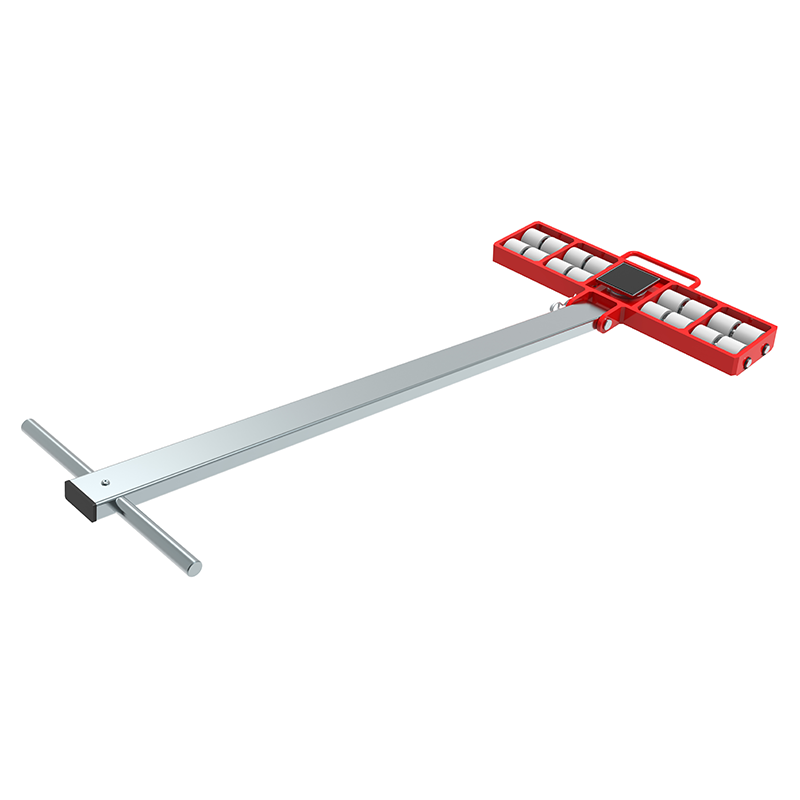

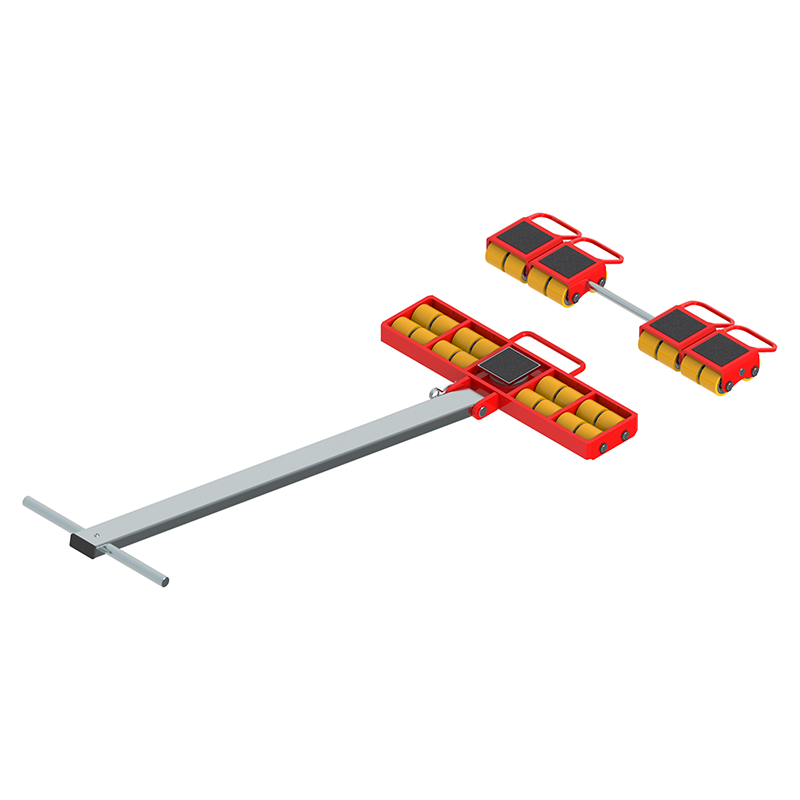

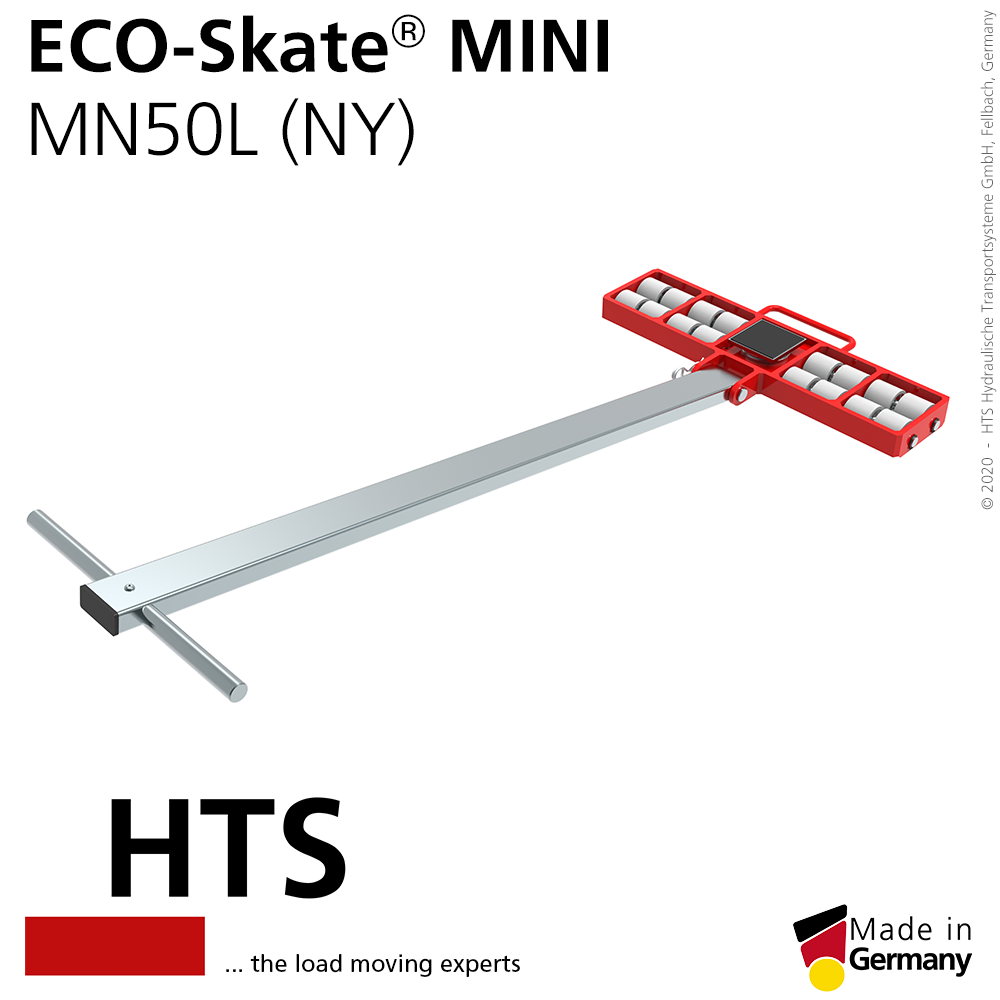

MN50L (NY)

ECO-Skate MINI MN50L (NY)
Article Number
10.050.08.10
Max. Capacity
5000 kg
Wheels
16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 50 x 46 / Ø 15 mm
Load Areas x (Length x Width)
80 x 80 mm
Handle Length
1000 mm
Dimensions: Length x Width x Height
250 x 533 x 60 mm
Weight
13 kg

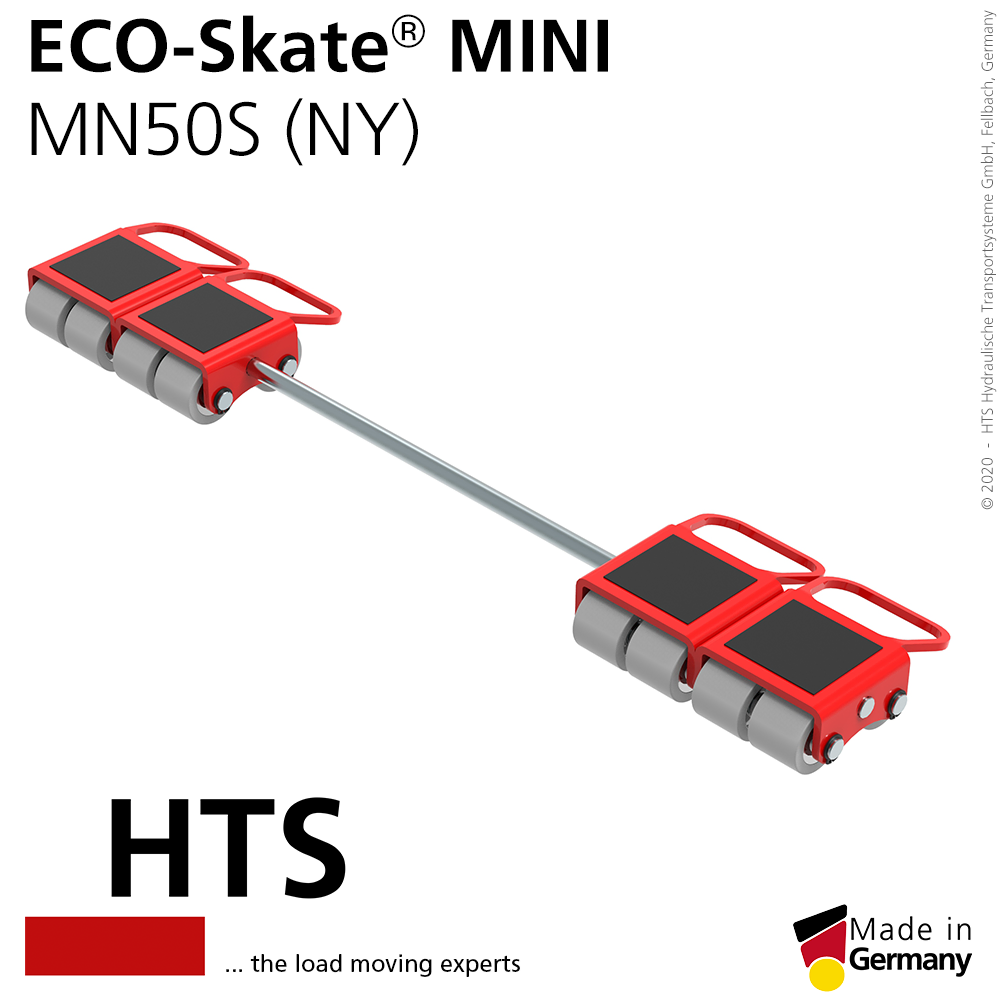

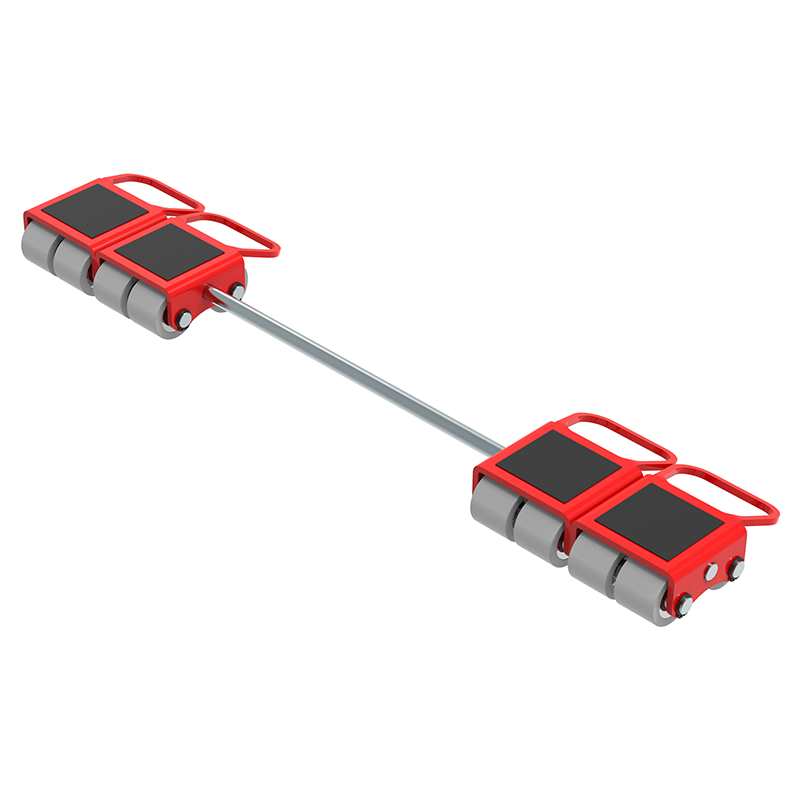

MN50S (NY)

ECO-Skate MINI MN50S (NY)
Article Number
10.050.08.20
Load Areas x Max. Capacity
2 x 2500 kg
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 50 x 46 / Ø 15 mm
Load Areas x (Length x Width)
2 x (75 x 150) mm
Adjustability
221 – 584 mm
Dimensions: Length x Width x Height
162 x 221 x 60 mm
Weight
8 kg

Conjunto MN50L (NY) + MN50S (NY)

Transportfahrwerk ECO-Skate MINI MN50L (NY) + MN50S (NY)
Max. Capacity
10000 kg

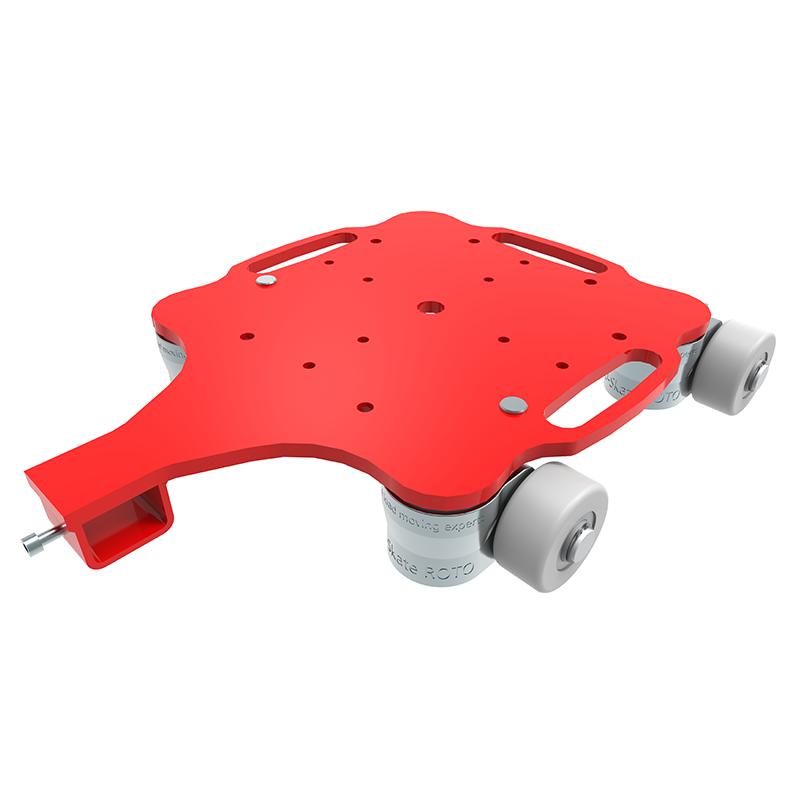

RFN30‑G (NY)

Rotationsfahrwerk ECO-Skate ROTO RFN30-G (NY)
Article Number
10.030.09.40
Max. Capacity
3000 kg
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Areas
n.A.
Handle Length
1170 mm
Adjustability
540 – 1940 mm
Dimensions: Length x Width x Height
588 x 467 x 102 mm
Weight
33 kg

RFN18‑G (NY)

ECO-Skate ROTOflex RFN18-G
Article Number
10.018.09.40
Max. Capacity
1800 kg
Wheels
6 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Areas
n.A.
Handle Length
1170 mm
Adjustability
590 – 1940 mm
Dimensions: Length x Width x Height
550 x 467 x 102 mm
Weight
22 kg

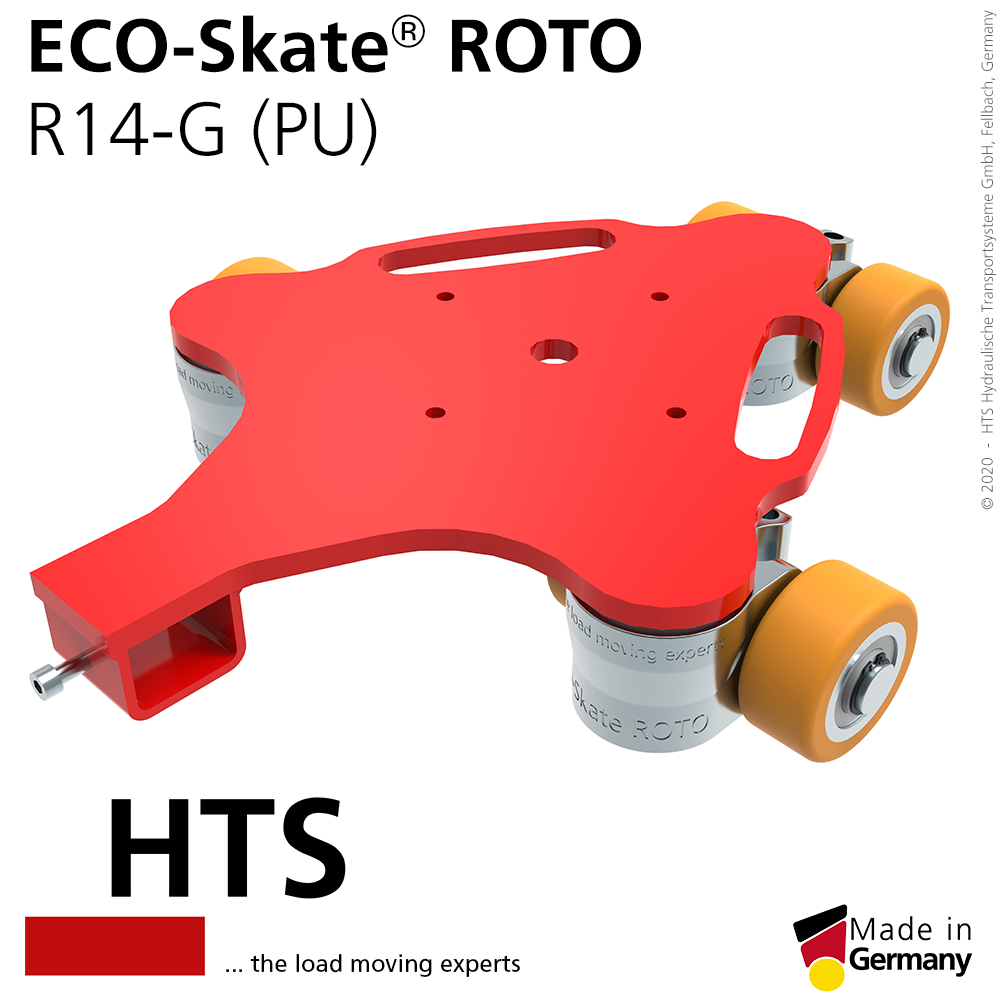

R14‑G (PU)

ECO-Skate ROTO R14-G (PU)
Article Number
10.014.04.40
Max. Capacity
1400 kg
Wheels
6 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Areas
n.A.
Handle Length
1170 mm
Adjustability
590 – 1940 mm
Dimensions: Length x Width x Height
550 x 467 x 102 mm
Weight
24 kg

RF24‑G (PU)

Rotationsfahrwerk ECO-Skate ROTO RF24-G (PU)
Article Number
10.024.04.40
Max. Capacity
2400 kg
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Areas
n.A.
Handle Length
1170 mm
Adjustability
540 – 1940 mm
Dimensions: Length x Width x Height
588 x 467 x 102 mm
Weight
36 kg

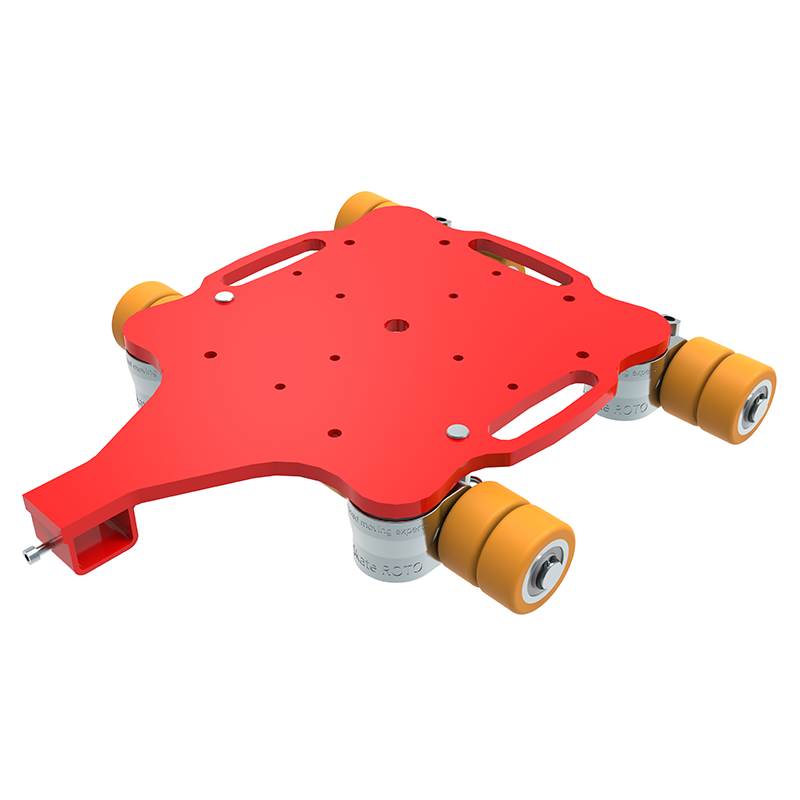

RF48‑G (PU)

Rotationsfahrwerk ECO-Skate ROTO RF48-G (PU)
Article Number
10.048.04.40
Max. Capacity
4800 kg
Wheels
16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Areas
n.A.
Handle Length
1170 mm
Adjustability
792 – 1940 mm
Dimensions: Length x Width x Height
650 x 585 x 102 mm
Weight
44 kg

RFN60‑G (NY)

Rotationsfahrwerk ECO-Skate ROTO RFN60-G (NY)
Article Number
10.060.09.40
Max. Capacity
6000 kg
Wheels
16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Areas
n.A.
Handle Length
1170 mm
Adjustability
792 – 1940 mm
Dimensions: Length x Width x Height
650 x 585 x 102 mm
Weight
43 kg

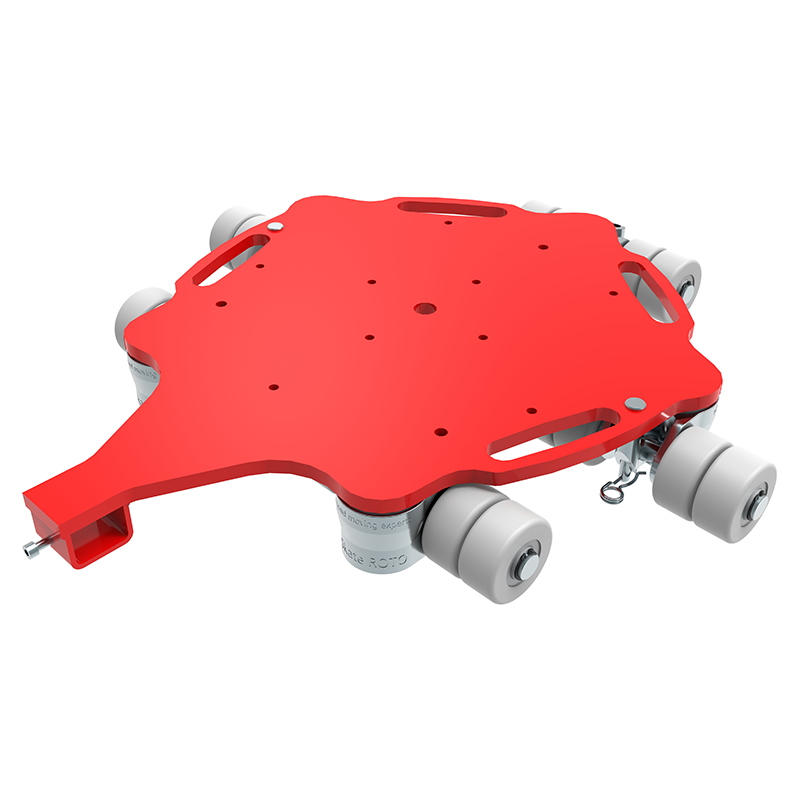

RFN80‑G (NY)

Rotationsfahrwerk ECO-Skate ROTO RFN80-G (NY)
Article Number
10.080.09.40
Max. Capacity
8000 kg
Wheels
20 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Areas
n.A.
Handle Length
1170 mm
Adjustability
922 – 1940 mm
Dimensions: Length x Width x Height
829 x 786 x 102 mm
Weight
59 kg

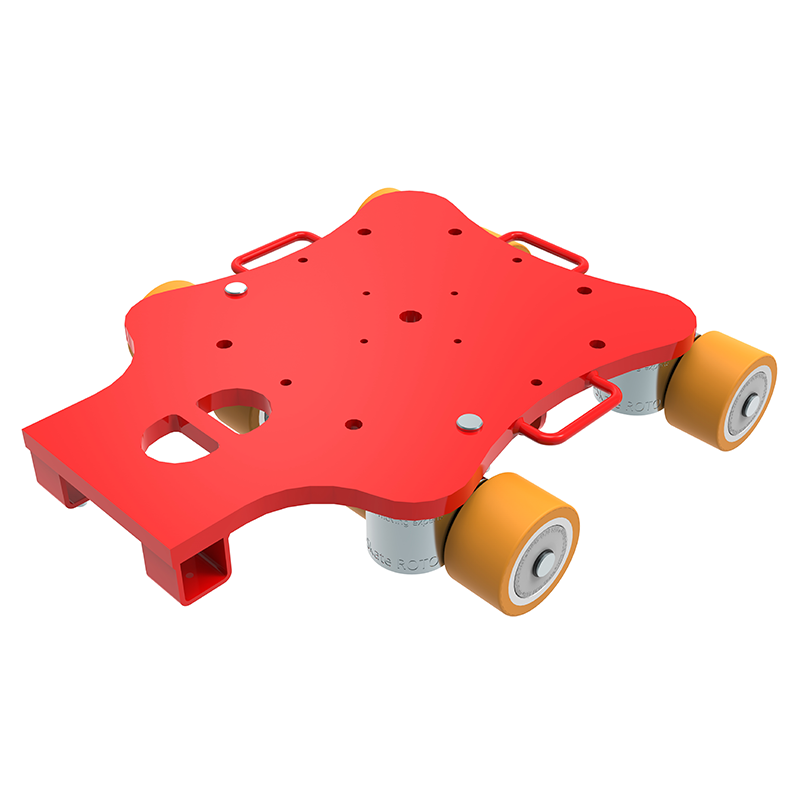

RFX10‑G (PU)

Rotationsfahrwerk ECO-Skate ROTO RFX10-G (PU)
Article Number
10.100.02.40
Max. Capacity
10000 kg
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas
n.A.
Handle Length
1620 mm
Adjustability
1000 – 1440 mm
Dimensions: Length x Width x Height
830 x 710 x 172 mm
Weight
126 kg

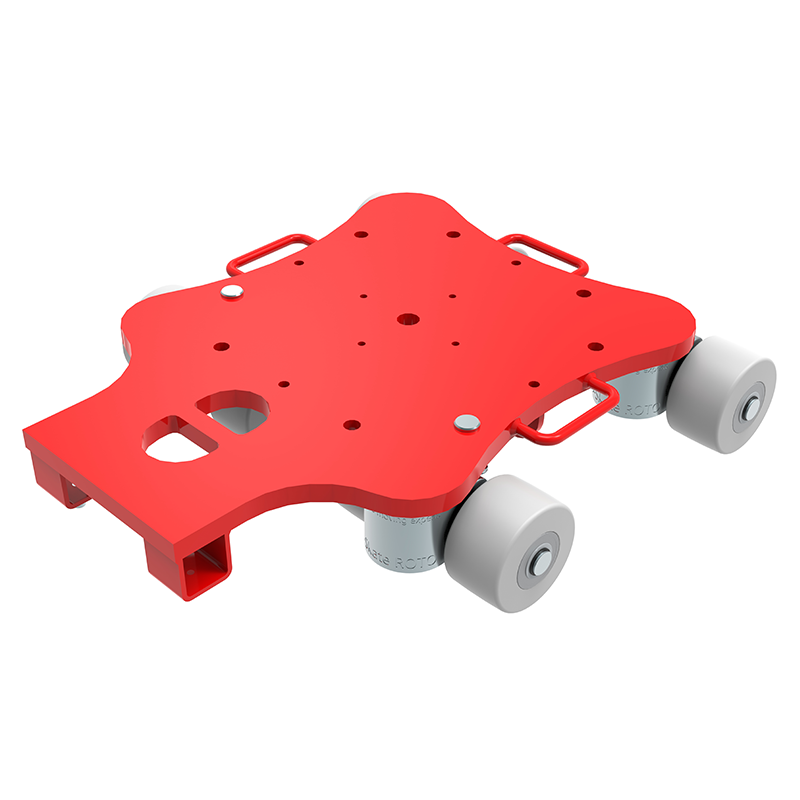

RFXN12‑G (NY)

ECO-Skate ROTO RFXN12-G (NY)
Article Number
10.120.03.40
Max. Capacity
12000 kg
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas
n.A.
Handle Length
1620 mm
Adjustability
1000 – 1440 mm
Dimensions: Length x Width x Height
830 x 710 x 172 mm
Weight
120 kg

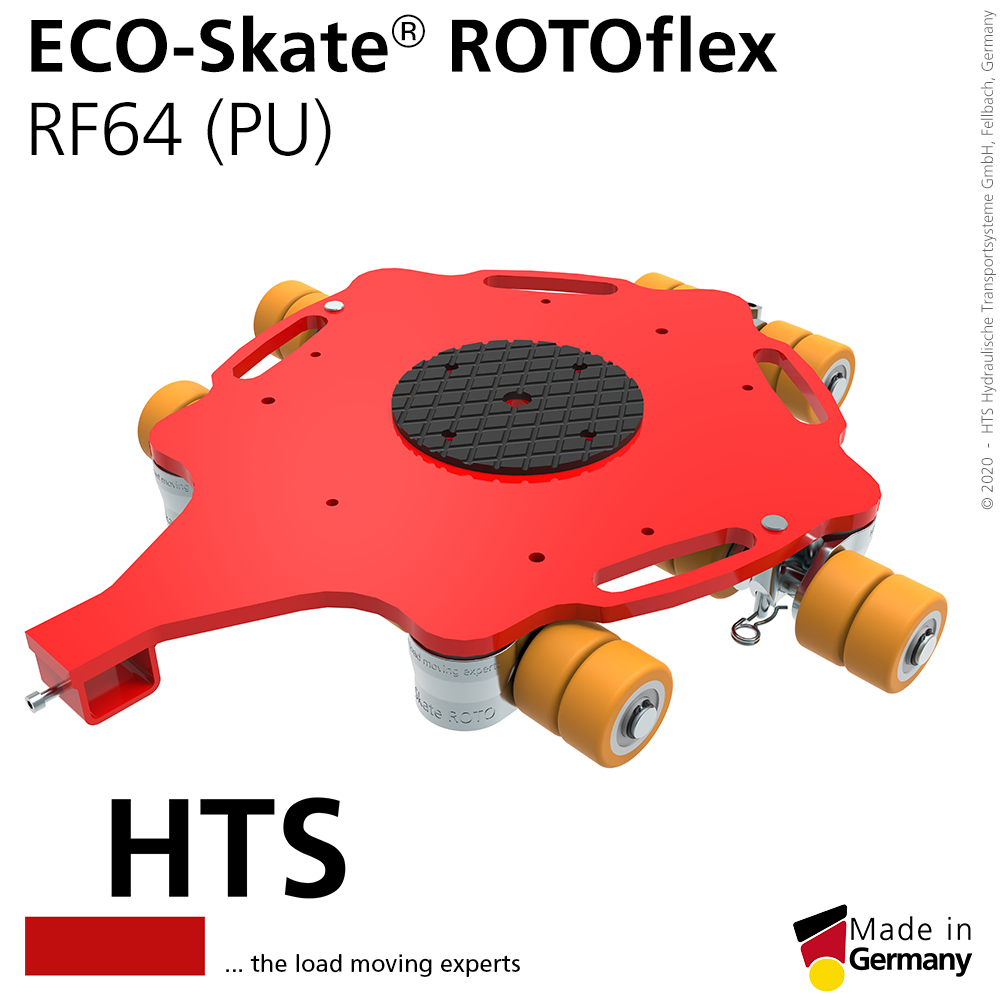

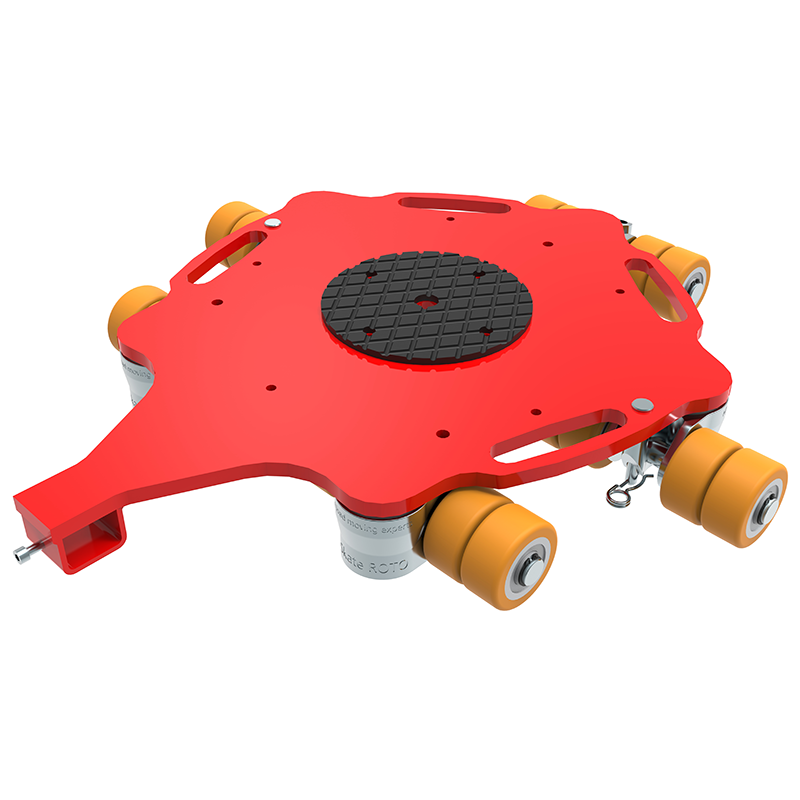

RF64 (PU)

Rotationsfahrwerk ECO-Skate ROTO RF64 (PU)
Article Number
10.064.04.41
Max. Capacity
6400 kg
Wheels
20 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Area Diameter
Ø 220 mm
Handle Length
1170 mm
Adjustability
922 – 1940 mm
Dimensions: Length x Width x Height
829 x 786 x 110 mm
Weight
64 kg

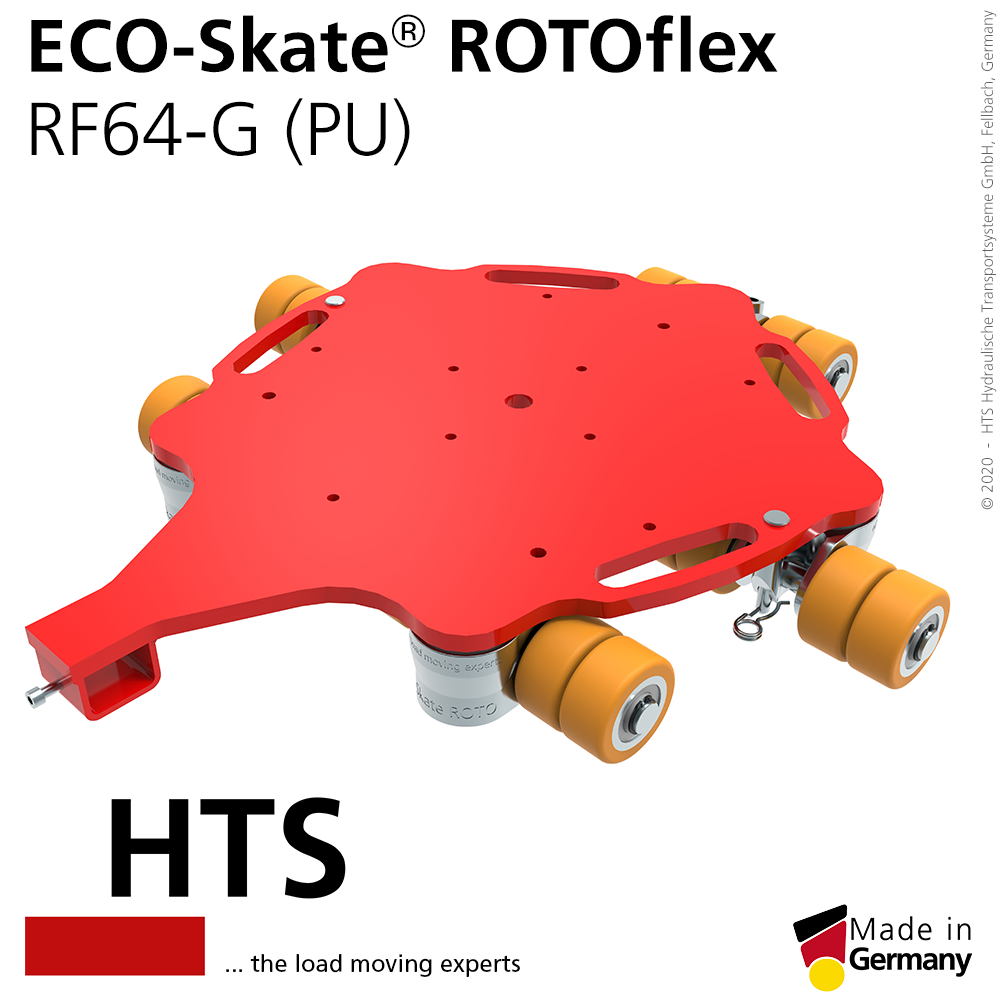

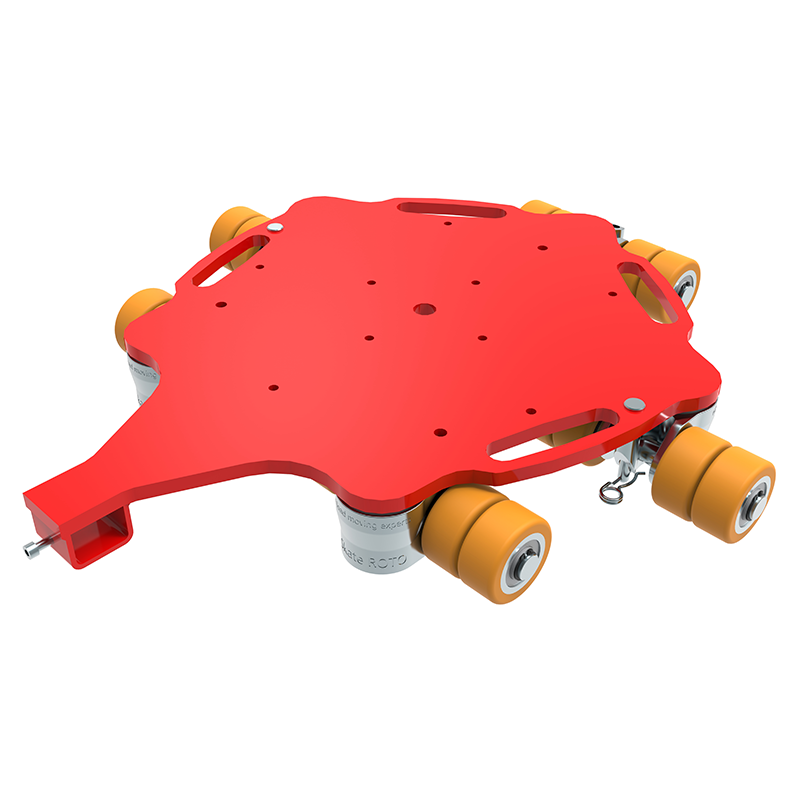

RF64‑G (PU)

Rotationsfahrwerk ECO-Skate ROTO RF64-G (PU)
Article Number
10.064.04.40
Max. Capacity
6400 kg
Wheels
20 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Areas
n.A.
Handle Length
1170 mm
Adjustability
922 – 1940 mm
Dimensions: Length x Width x Height
829 x 786 x 102 mm
Weight
64 kg

iN80S

ECO-Skate-IDEAL-iN80S-NY
Article Number
10.080.01.20
Load Areas x Max. Capacity
2 x 4000 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x (Length x Width)
2 x (120 x 220) mm
Adjustability
420 – 1100 mm
Dimensions: Length x Width x Height
291 x 220 x 110 mm
Weight
25 kg

NY Ø140x86xØ30 B

ECO-Skate NY Ø140x86xØ30 b
Article Number
11.140.10.25R
Max. Capacity
2500 kg
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Weight
2 kg
Fits into …
POWER-Skate XL, XN20S-B, RFXN12

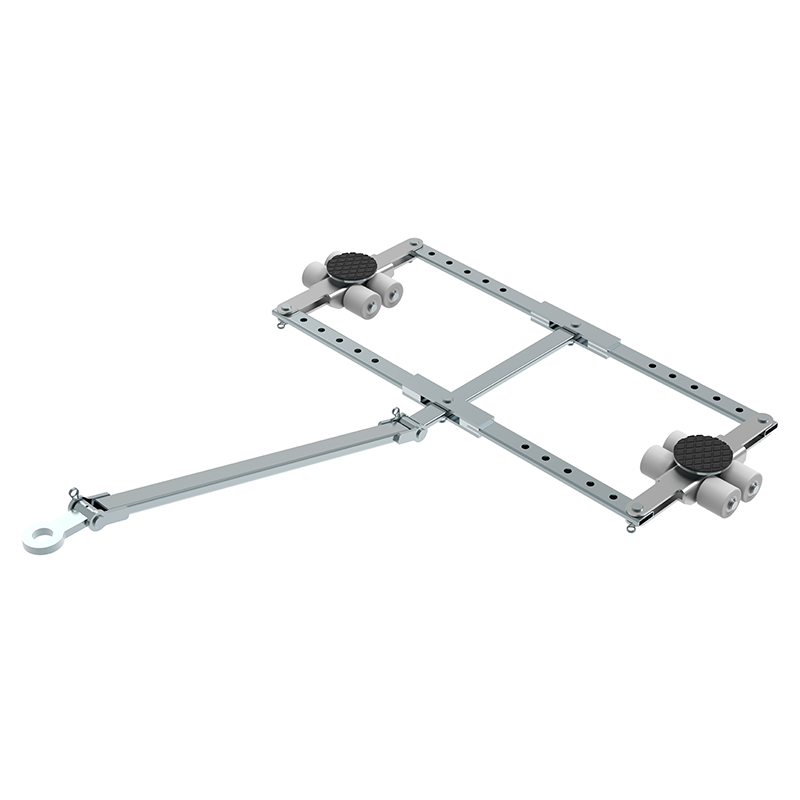

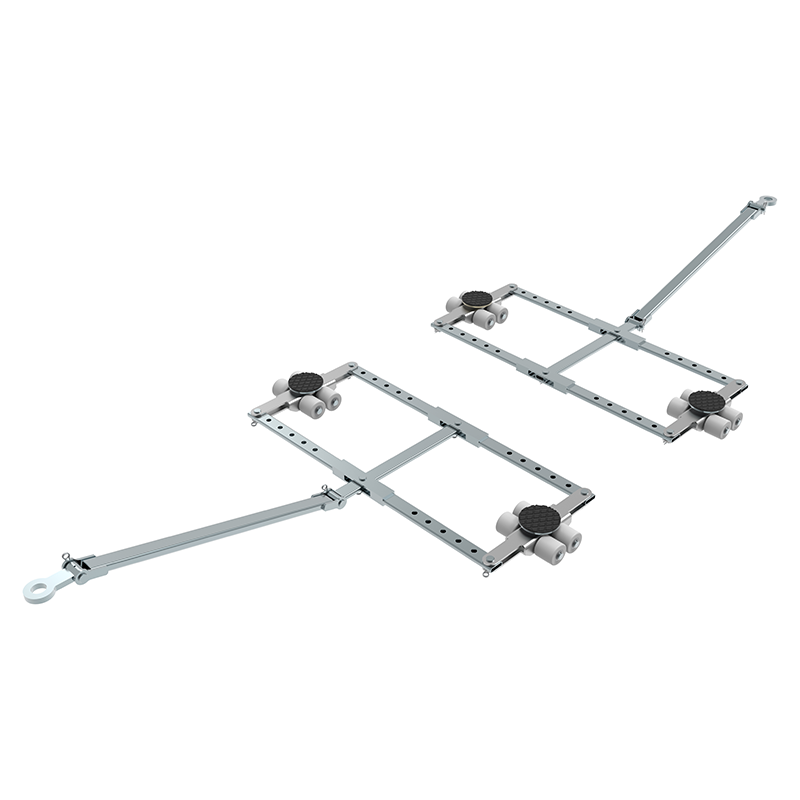

Conjunto iN80D‑CR + iN80D‑CR

HTS ECO-Skate DUO CR iN80D-CR + iN80D-CR Set
Max. Capacity
16000 kg

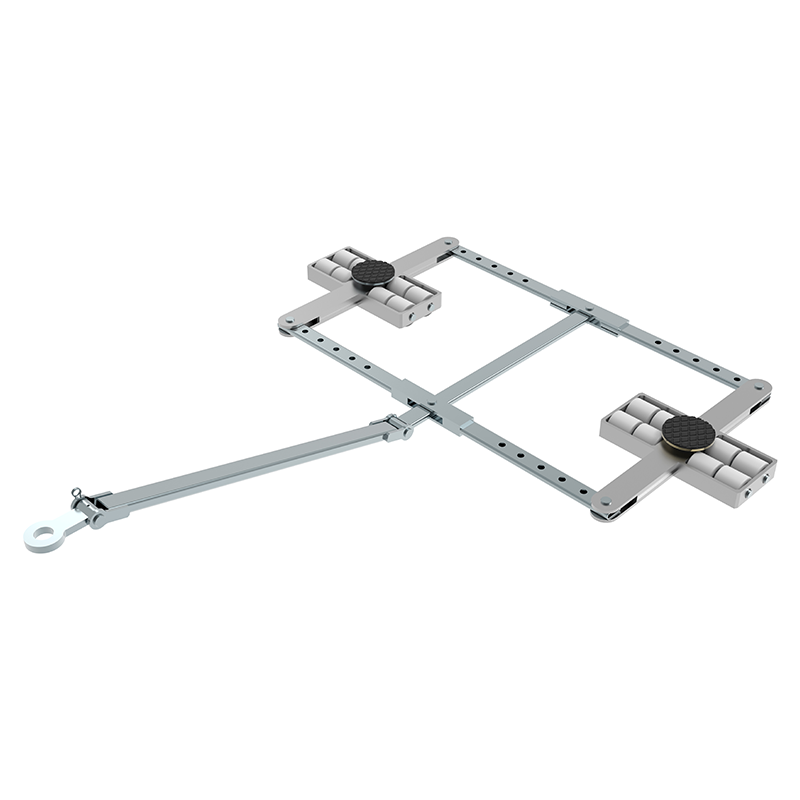

Conjunto iN160D‑CR + iN160D‑CR

HTS ECO-Skate DUO CR iN160D-CR + iN160D-CR Set
Max. Capacity
32000 kg

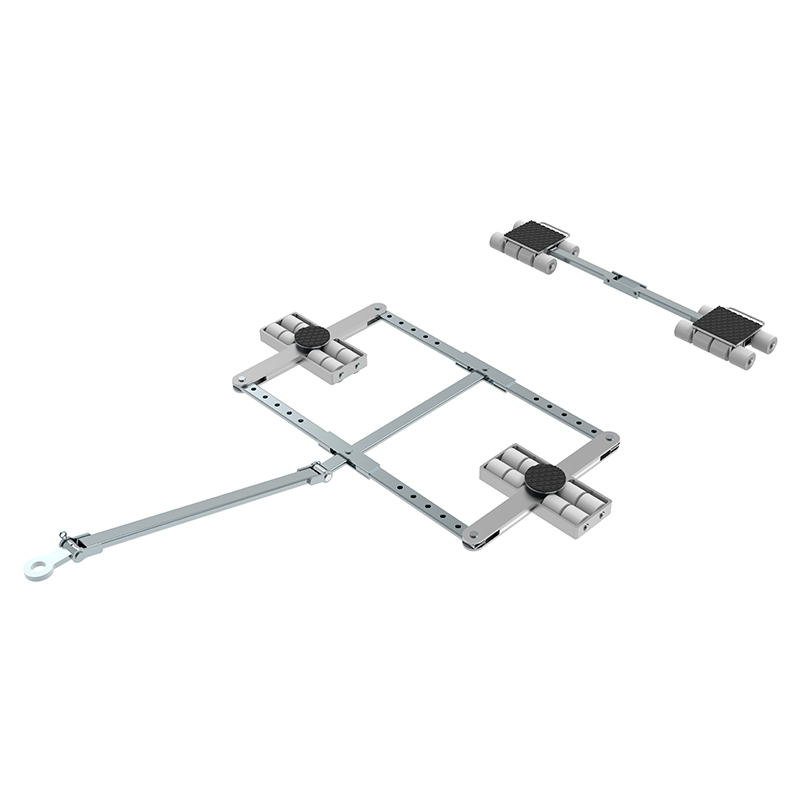

Conjunto iN160D‑CR + iN160S‑CR

Transportfahrwerk ECO-Skate DUO CR iN160D-CR + iN160S-CR Set
Max. Capacity
32000 kg

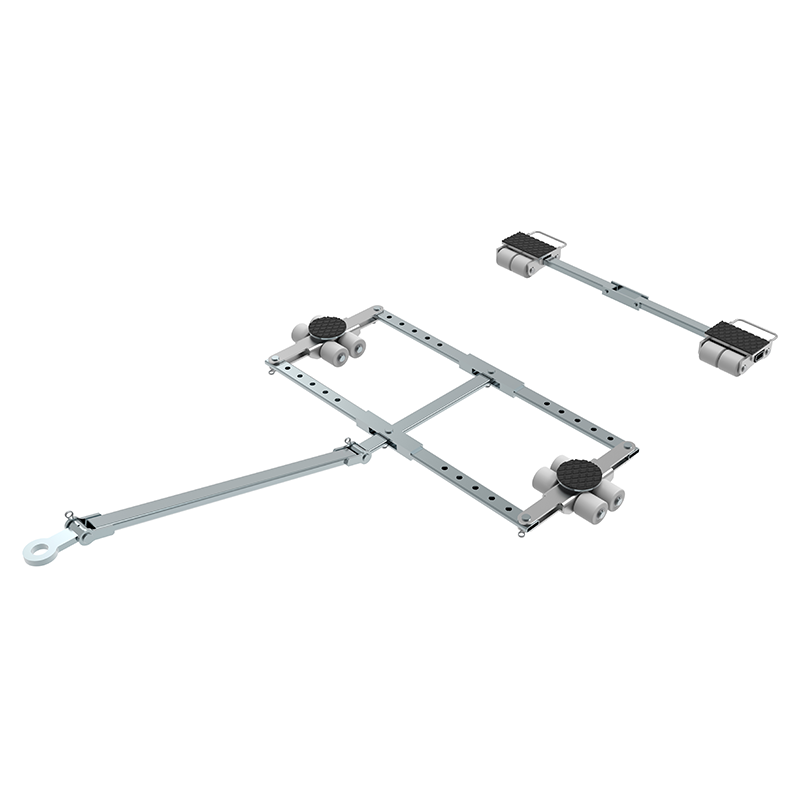

Conjunto iN80D‑CR + iN80S‑CR

HTS ECO-Skate DUO CR iN80D-CR + iN80S-CR Set
Max. Capacity
16000 kg

ICXN20D TLS (NY)

HTS ECO-Skate ISOCONflex ICXN20D TLS (NY)
Article Number
10.200.03.35
Load Areas x Max. Capacity
2 x 10000 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Handle Length
1620 mm
Distance cone center
2259 mm
Dimensions: Length x Width x Height / Container Lock
1275 x 2636 x 221 / 298 mm
Weight
215 kg

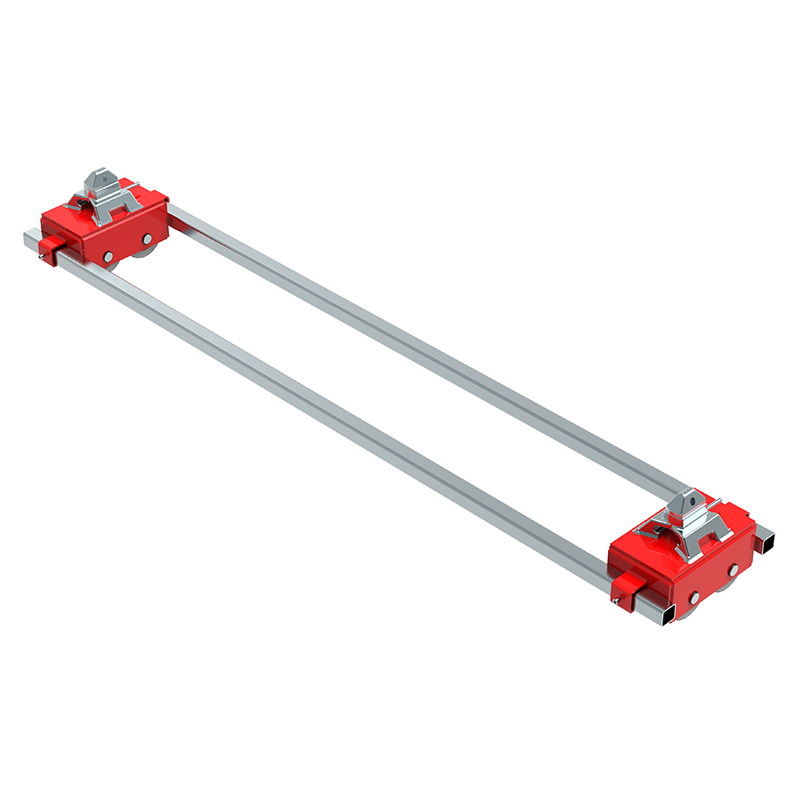

ICXN20S TLS (NY)

HTS ECO-Skate ISOCONflex ICXN20S TLS (NY)
Article Number
10.200.03.25
Load Areas x Max. Capacity
2 x 10000 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Handle Length
n.A.
Adjustability
216 – 2259 mm
Dimensions: Length x Width x Height / Container Lock
456 x 2474 x 221 / 298 mm
Weight
104 kg

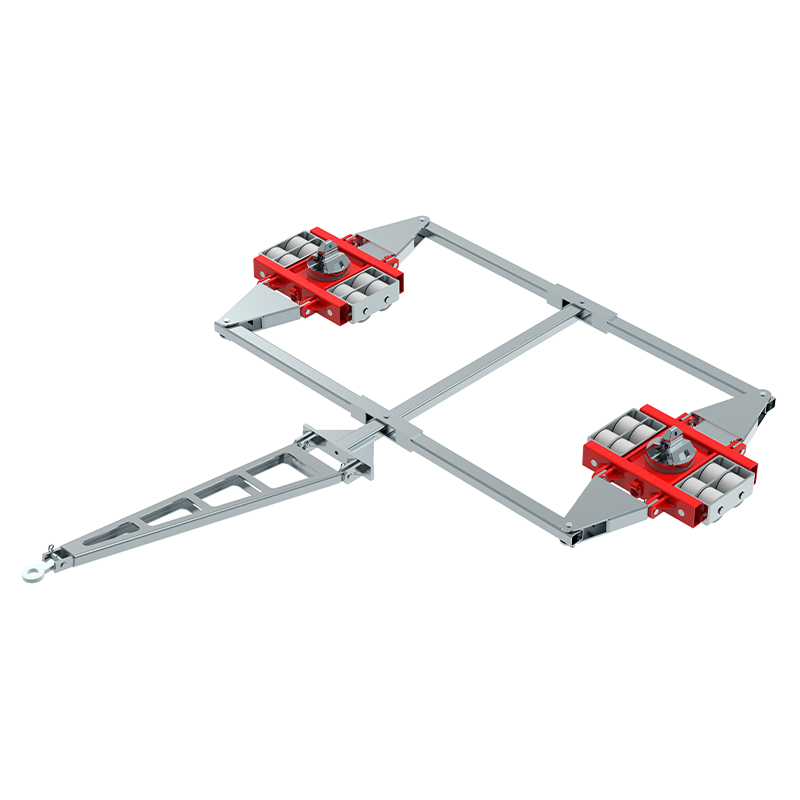

ICXN40D TLS (NY)

HTS ECO-Skate ISOCONflex ICXN40D TLS (NY)
Article Number
10.400.03.35
Load Areas x Max. Capacity
2 x 20000 kg
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Handle Length
1620 mm
Distance cone center
2259 mm
Dimensions: Length x Width x Height / Container Lock
1847 x 2983 x 221 / 298 mm
Weight
382 kg

ICXN40S TLS (NY)

HTS ECO-Skate ISOCONflex ICXN40S TLS (NY)
Article Number
10.400.03.25
Load Areas x Max. Capacity
2 x 20000 kg
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Handle Length
n.A.
Adjustability
410 – 2259 mm
Dimensions: Length x Width x Height / Container Lock
456 x 2669 x 221 / 298 mm
Weight
182 kg

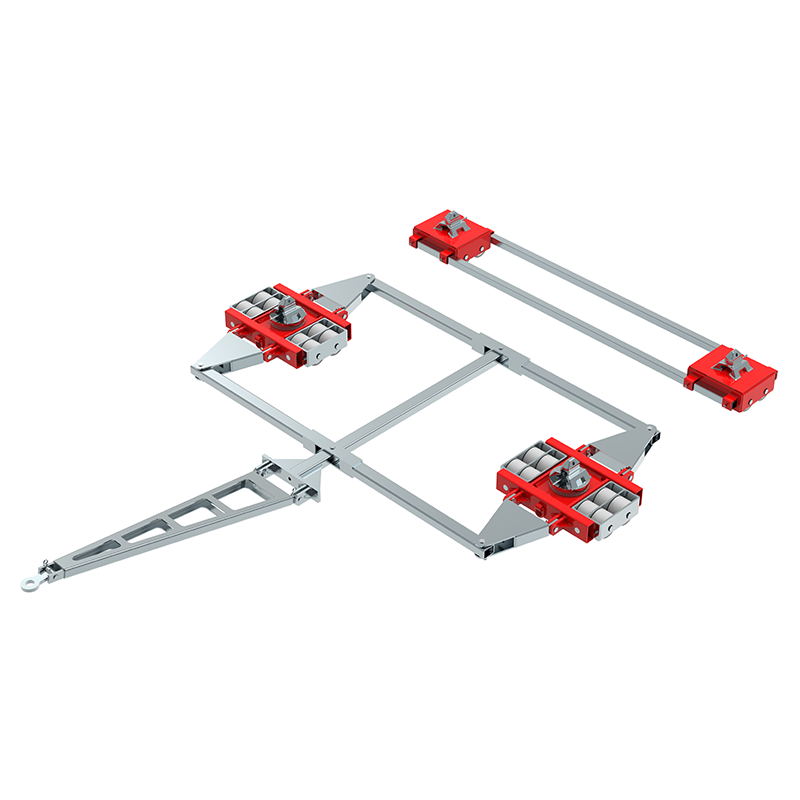

Conjunto ICXN40D TLS (NY) + ICXN40S TLS (NY)

HTS ECO-Skate ISOCONflex ICXN40D TLS (NY) + ICXN40S TLS (NY) Set
Max. Capacity
80000 kg

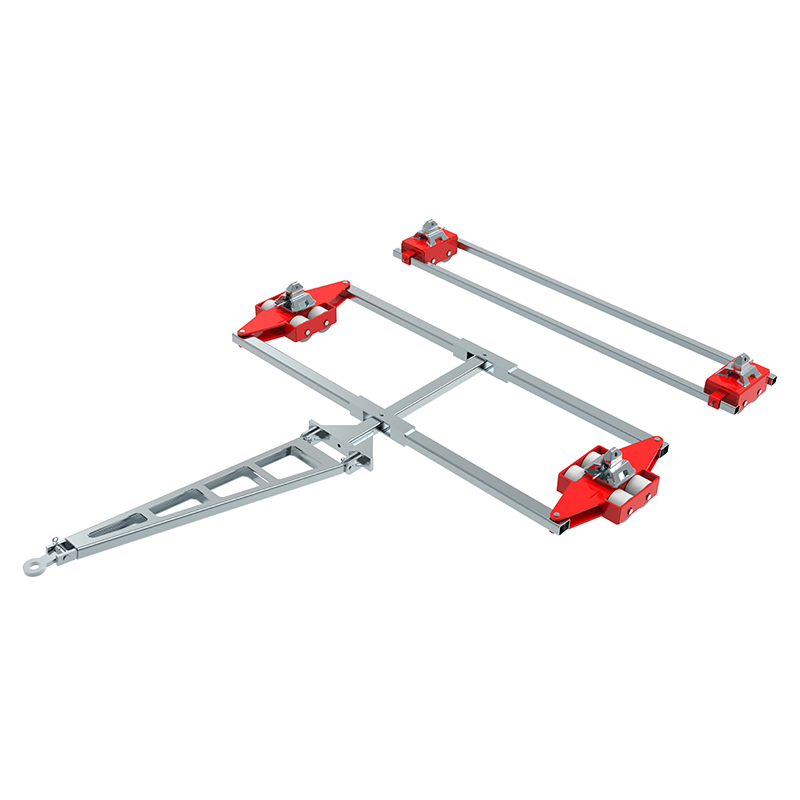

Conjunto ICXN20D TLS (NY) + ICXN20S TLS (NY)

HTS ECO-Skate ISOCONflex ICXN20D TLS (NY) + ICXN20S TLS (NY) Set
Max. Capacity
40000 kg

RFXN12 (NY)

HTS ECO-Skate ROTO ROTOflex XL RFXN12 (NY)
Article Number
10.120.03.41
Max. Capacity
12000 kg
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diameter
Ø 250 mm
Handle Length
1620 mm
Adjustability
1000 – 1440 mm
Dimensions: Length x Width x Height
830 x 710 x 180 mm
Weight
120 kg

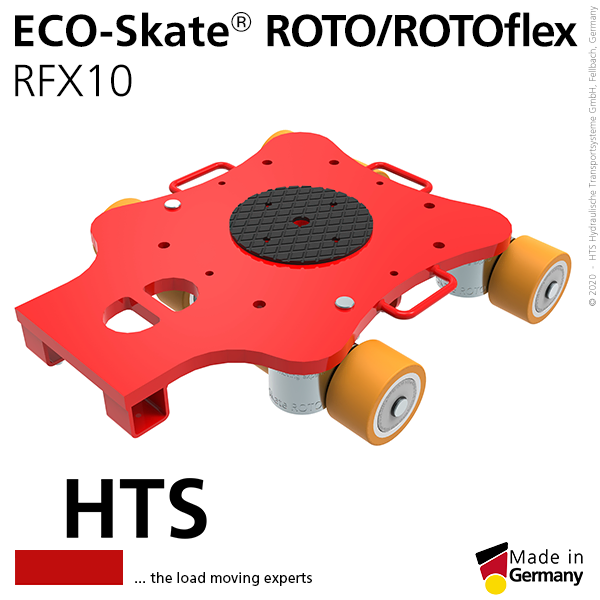

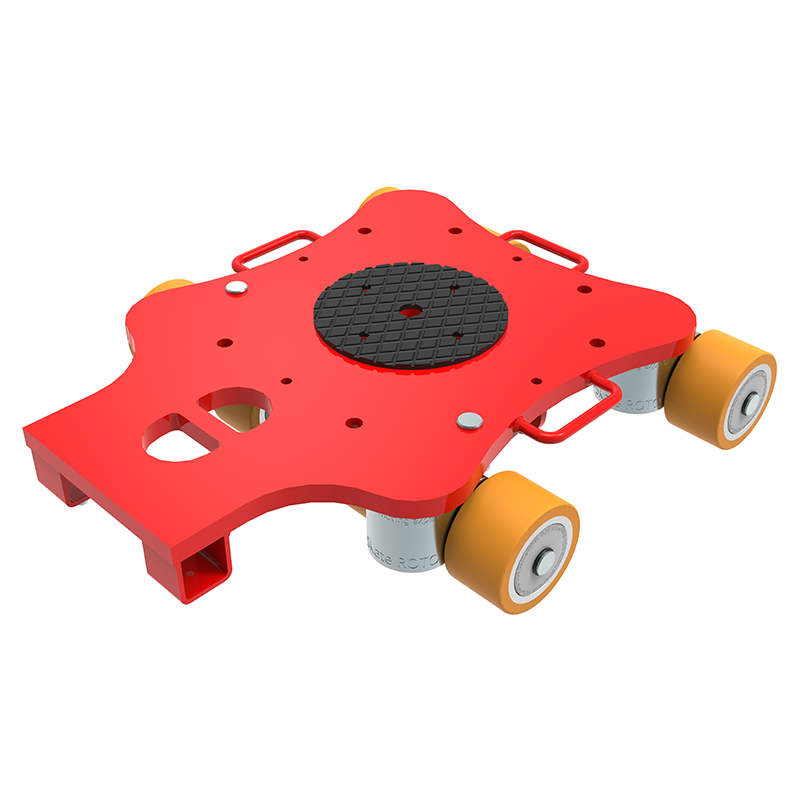

RFX10 (PU)

Rotationsfahrwerk ECO Skate ROTO - 360° drehbares Transportfahrwerk
Article Number
10.100.02.41
Max. Capacity
10000 kg
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diameter
Ø 250 mm
Handle Length
1620 mm
Adjustability
1000 – 1440 mm
Dimensions: Length x Width x Height
830 x 710 x 180 mm
Weight
126 kg

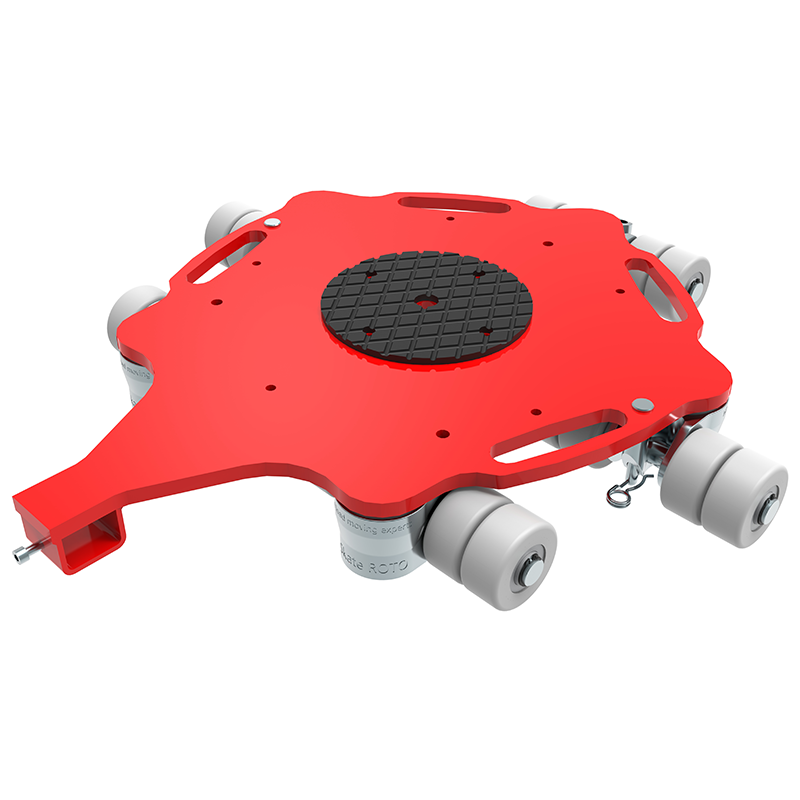

RFN80 (NY)

Rotationsfahrwerk ECO-Skate ROTO RFN80 (NY)
Article Number
10.080.09.41
Max. Capacity
8000 kg
Wheels
20 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Area Diameter
Ø 220 mm
Handle Length
1170 mm
Adjustability
922 – 1940 mm
Dimensions: Length x Width x Height
829 x 786 x 110 mm
Weight
59 kg

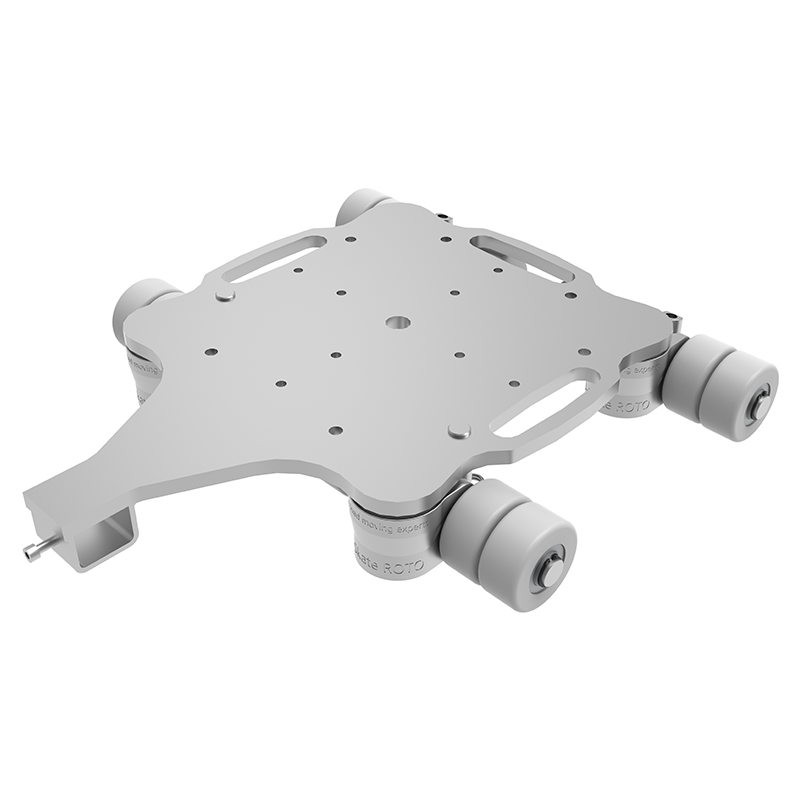

RFN60 (NY)

ECO-Skate ROTO/ROTOflex RFN60
Article Number
10.060.09.41
Max. Capacity
6000 kg
Wheels
16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Area Diameter
Ø 220 mm
Handle Length
1170 mm
Adjustability
792 – 1940 mm
Dimensions: Length x Width x Height
650 x 585 x 110 mm
Weight
43 kg

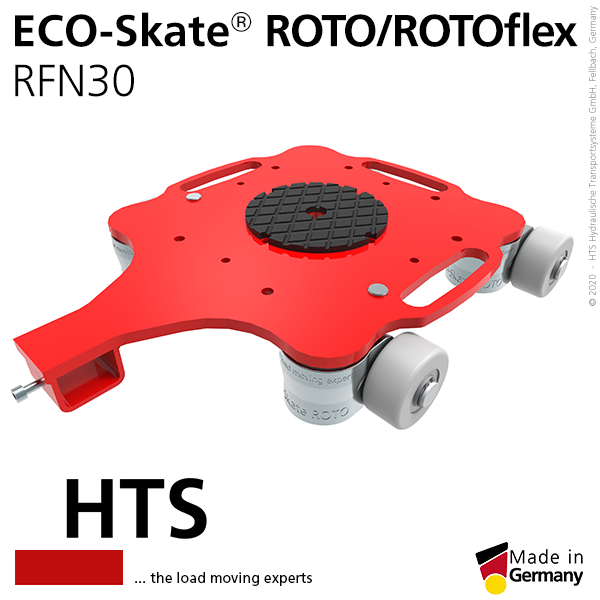

RFN30 (NY)

Rotationsfahrwerk ECO-Skate ROTO/ROTOflex RFN30
Article Number
10.030.09.41
Max. Capacity
3000 kg
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Adjustability
540 – 1940 mm
Dimensions: Length x Width x Height
588 x 467 x 110 mm
Weight
33 kg

Conjunto ICX32D TLS (PU) + ICX32S TLS (PU)

HTS ECO-Skate ISOCON XL (PU) - ICX32D TLS (PU) + ICX32S TLS (PU)
Max. Capacity
64000 kg

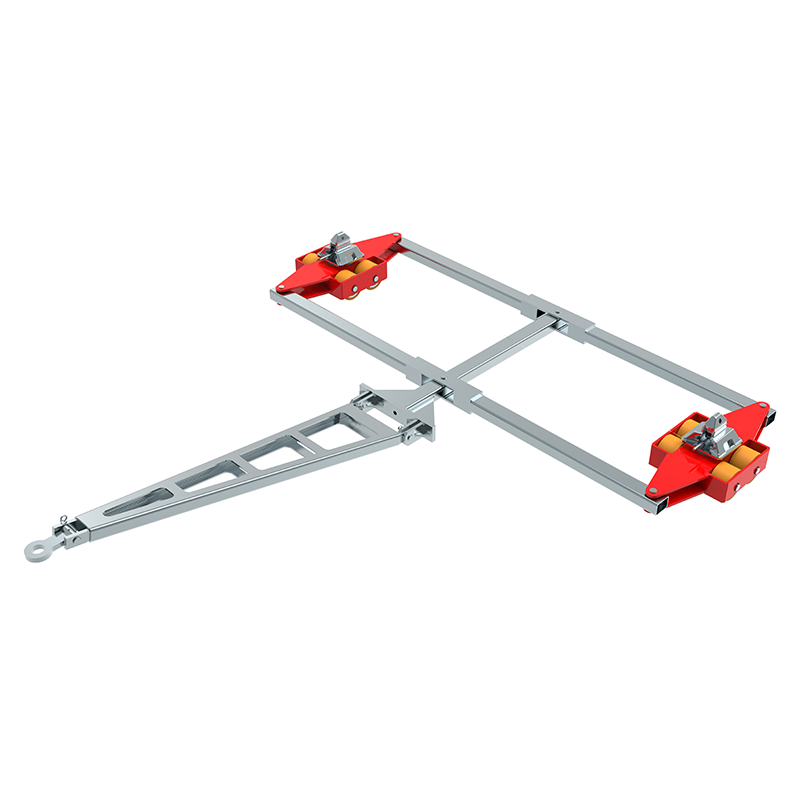

Conjunto ICX16D TLS (PU) + ICX16S TLS (PU)

HTS ECO-Skate ISOCON XL (PU) - ICX16D TLS (PU) + ICX16S TLS (PU)
Max. Capacity
32000 kg

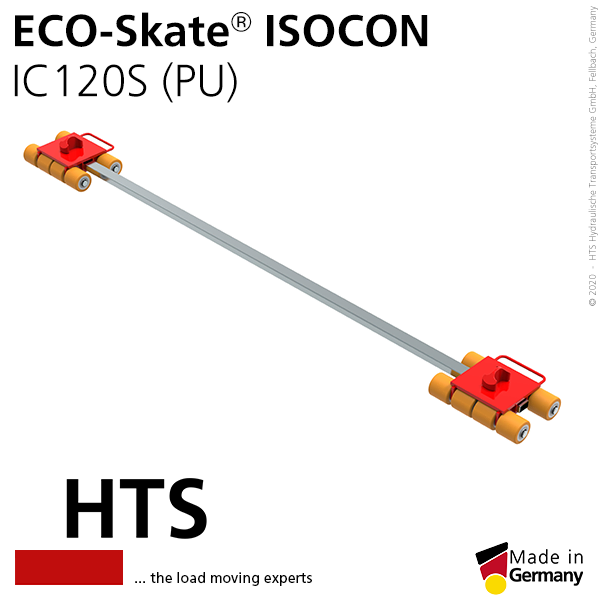

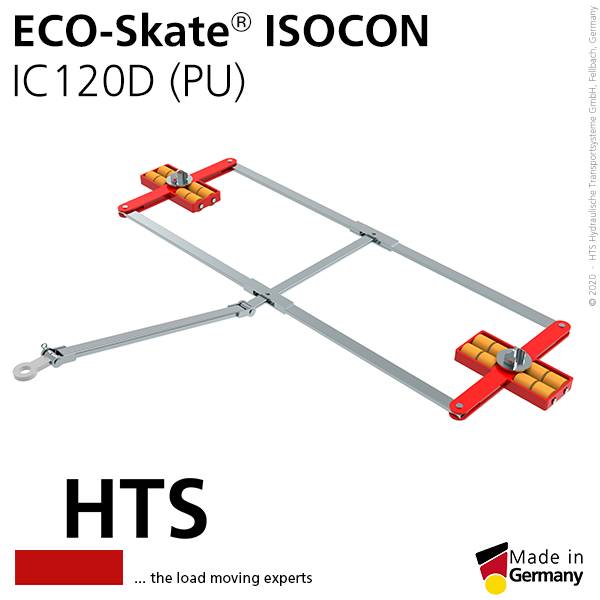

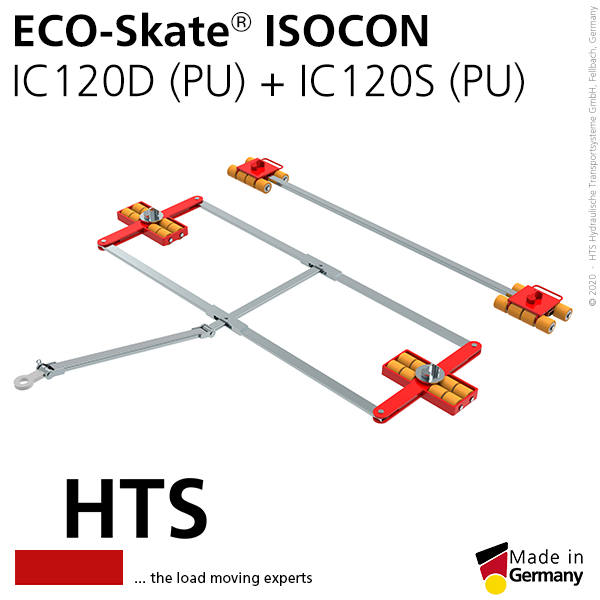

Conjunto IC120D (PU) + IC120S (PU)

HTS ECO-Skate ISOCON PU - IC120D (PU) + IC120S (PU) Set
Max. Capacity
24000 kg

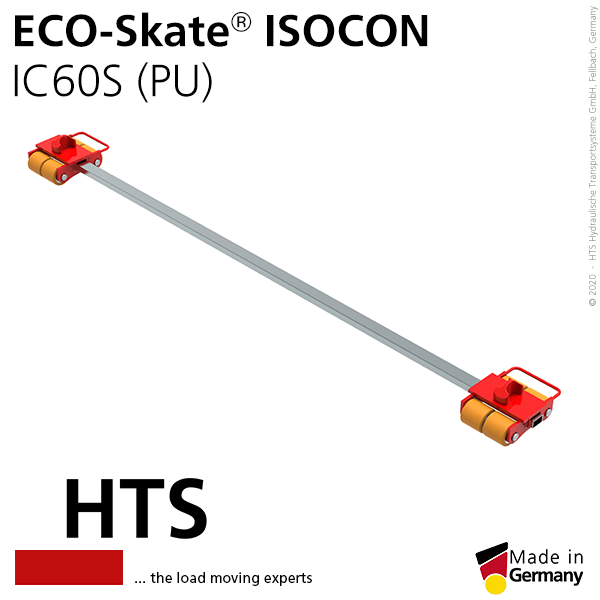

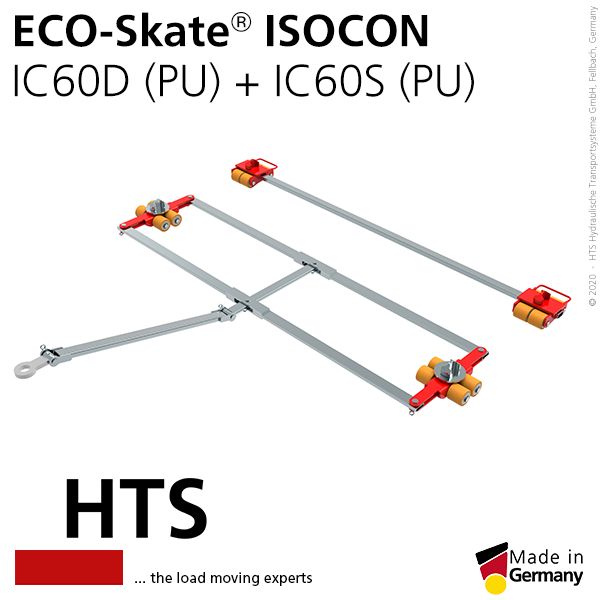

Conjunto IC60D (PU) + IC60S (PU)

ECO-Skate-ISOCON-IC60D-PU-IC60S-PU-Set
Max. Capacity
12000 kg

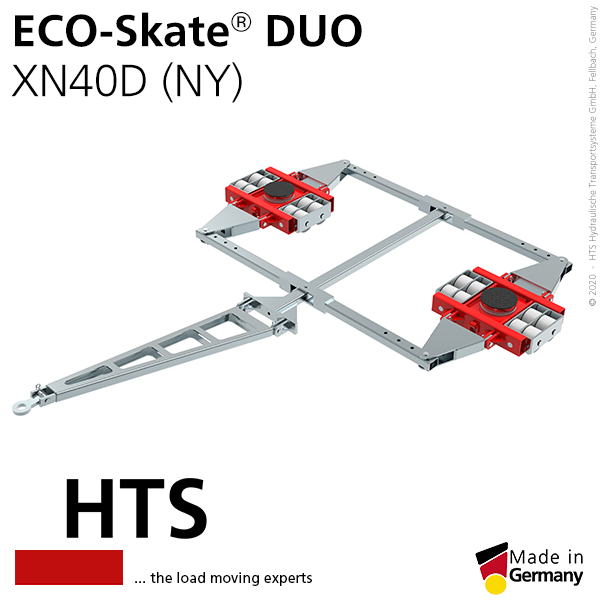

Conjunto XN40D (NY) + XN40D (NY)

HTS ECO-Skate DUO XL (NY) - XN40D (NY) + XN40D (NY) Set
Max. Capacity
80000 kg

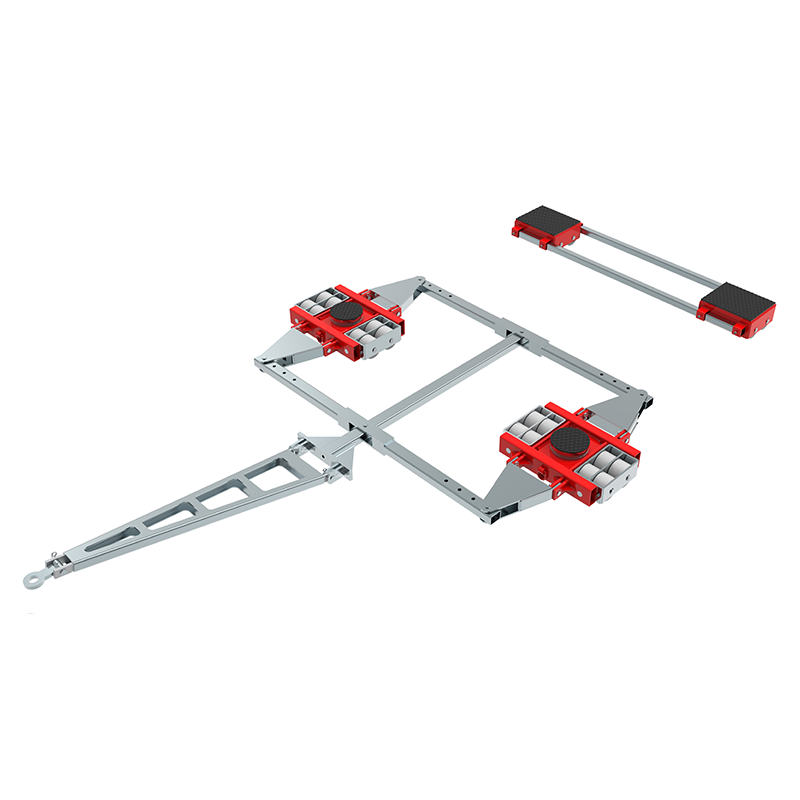

Conjunto XN40D (NY) + XN40S (NY)

Transportfahrwerk ECO-Skate DUO XL (NY) - XN40D (NY) + XN40S (NY) Set
Max. Capacity
80000 kg

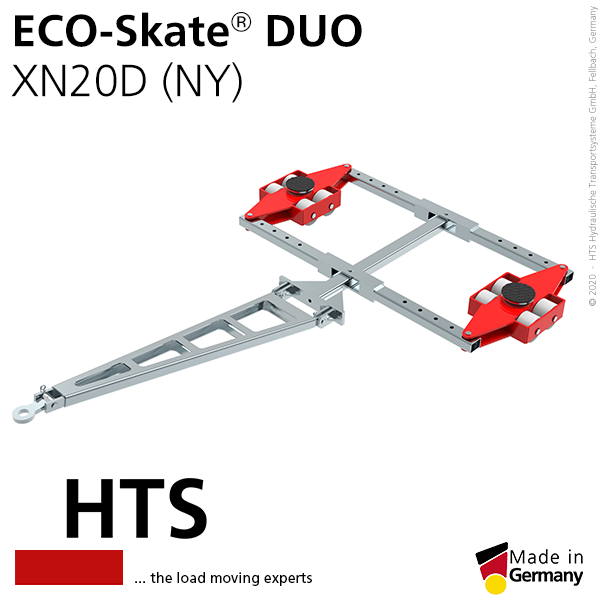

Conjunto XN20D (NY) + XN20D (NY)

HTS ECO-Skate DUO XL (NY) - XN20D (NY) + XN20D (NY) Set
Max. Capacity
40000 kg

Conjunto XN20D (NY) + XN20S (NY)

ECO-Skate DUO XL XN20D (NY) + XN20S (NY) Set
Max. Capacity
40000 kg

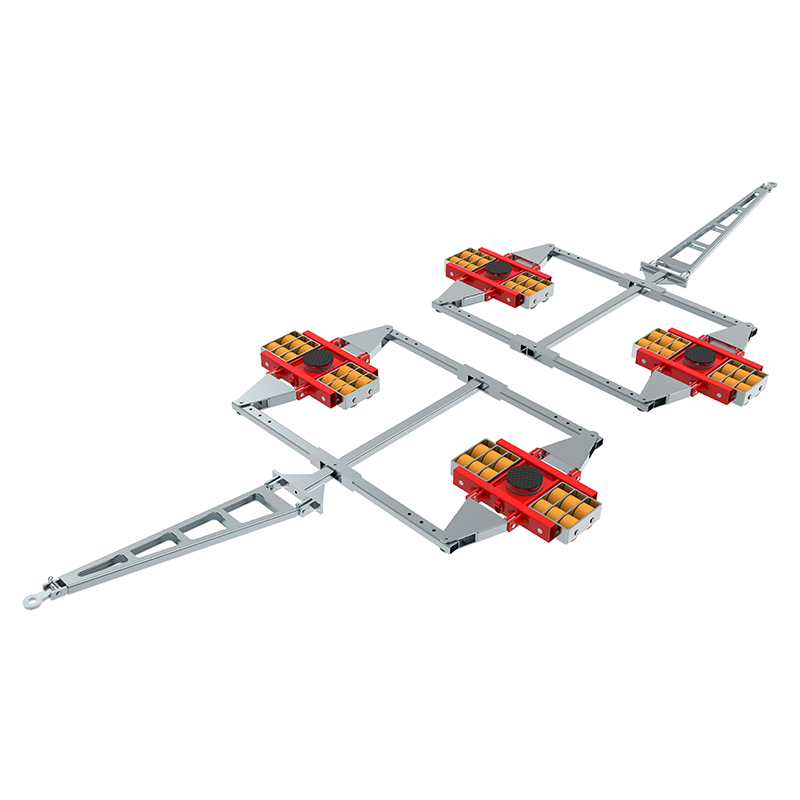

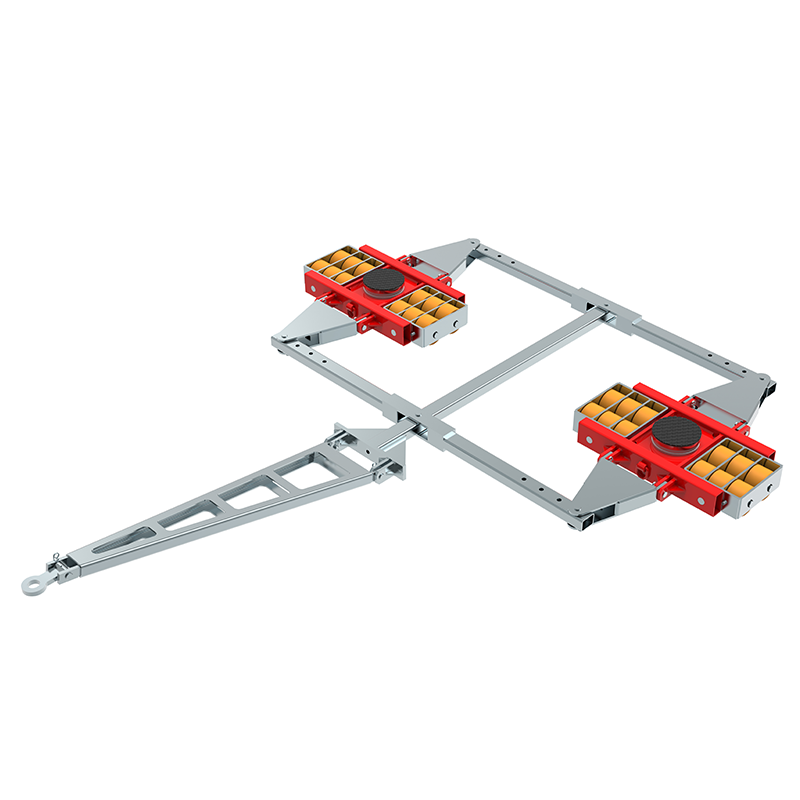

Conjunto X48D (PU) + X48D (PU)

HTS ECO-Skate DUO XL (PU) - X48D (PU) + X48D (PU) Set
Max. Capacity
96000 kg

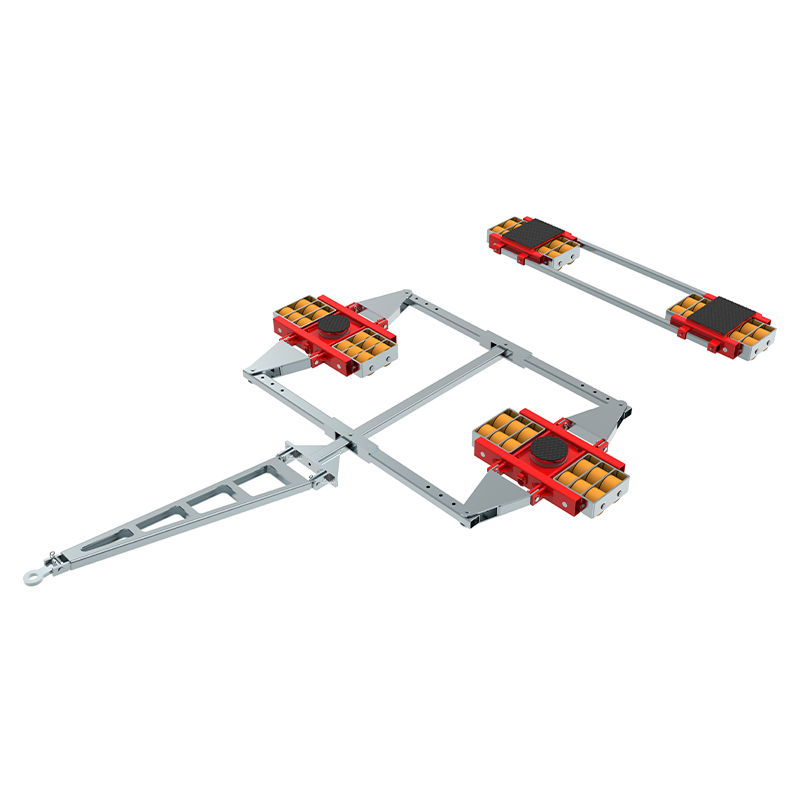

Conjunto X48D (PU) + X48S (PU)

Transportfahrwerk mit Vierpunktauflage - HTS ECO Skate DUO XL PU
Max. Capacity
96000 kg

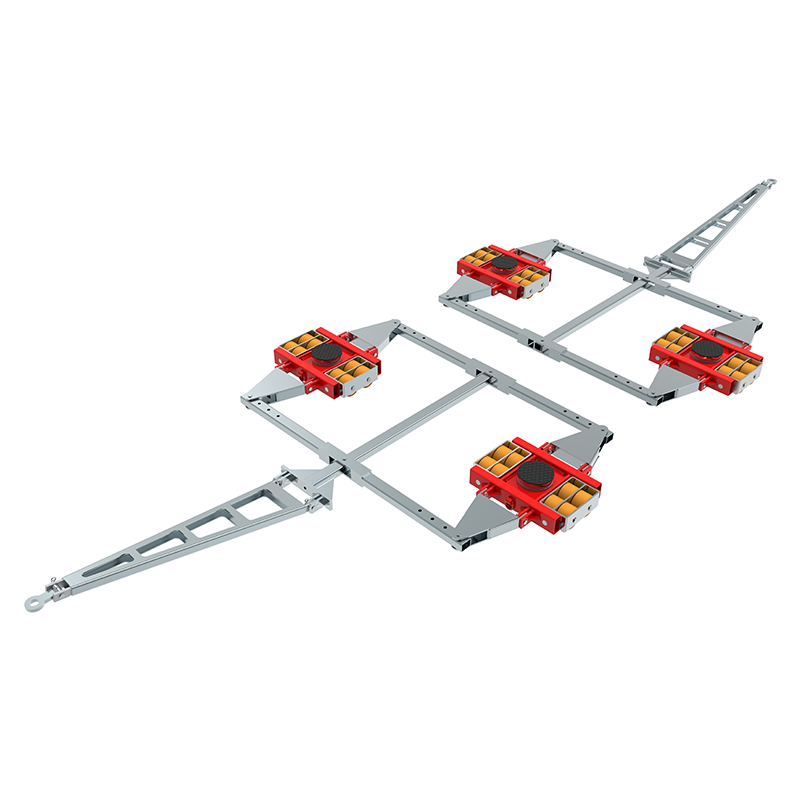

Conjunto X32D (PU) + X32D (PU)

HTS ECO-Skate DUO XL (PU) - X32D (PU) + X32D (PU) Set
Max. Capacity
64000 kg

Conjunto X32D (PU) + X32S (PU)

HTS ECO-Skate DUO XL (PU) - X32D (PU) + X32S (PU) Set
Max. Capacity
64000 kg

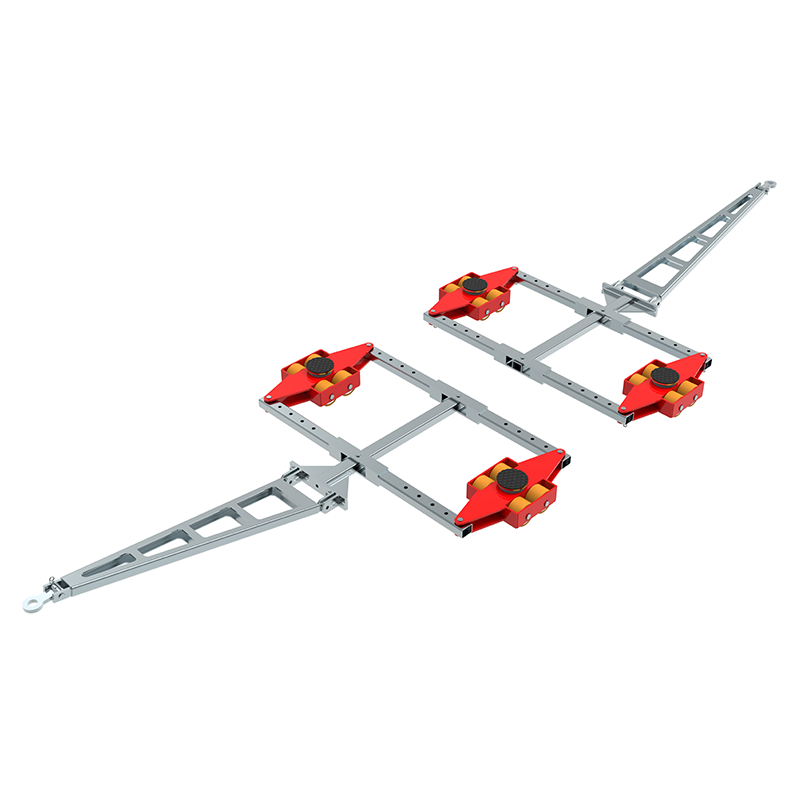

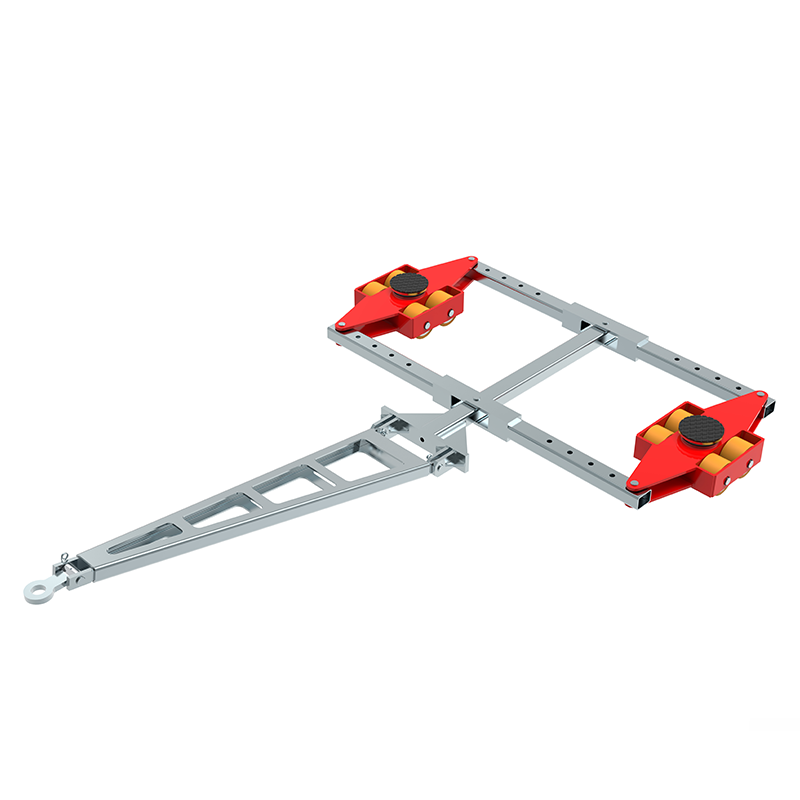

Conjunto X16D (PU) + X16D (PU)

HTS ECO-Skate DUO XL (PU) - X16D (PU) + X16D (PU) Set
Max. Capacity
32000 kg

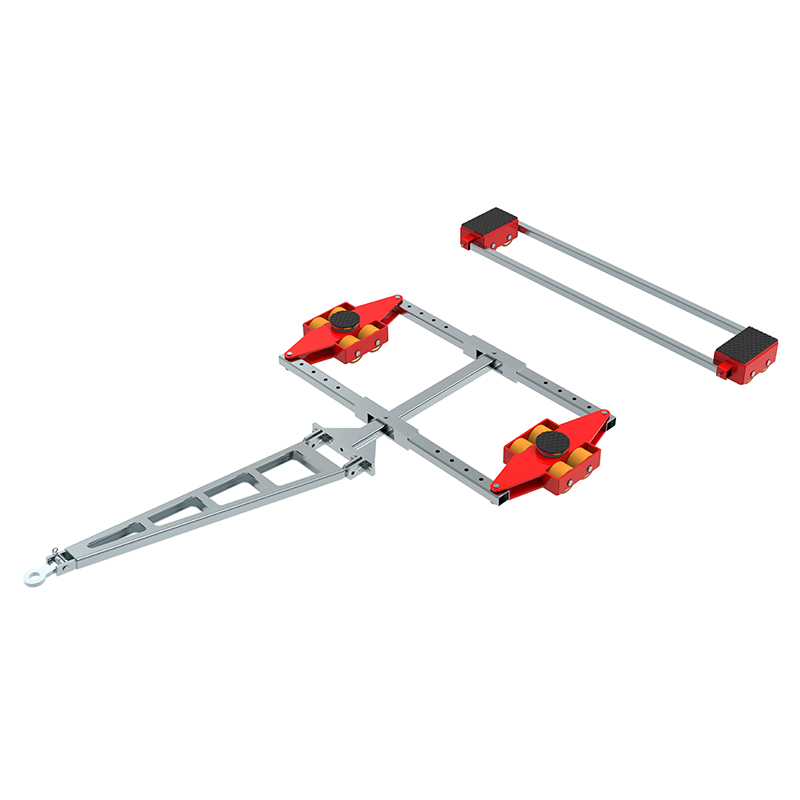

Conjunto X16D (PU) + X16S (PU)

HTS ECO-Skate DUO XL (PU) - X16D (PU) + X16S (PU) Set
Max. Capacity
32000 kg

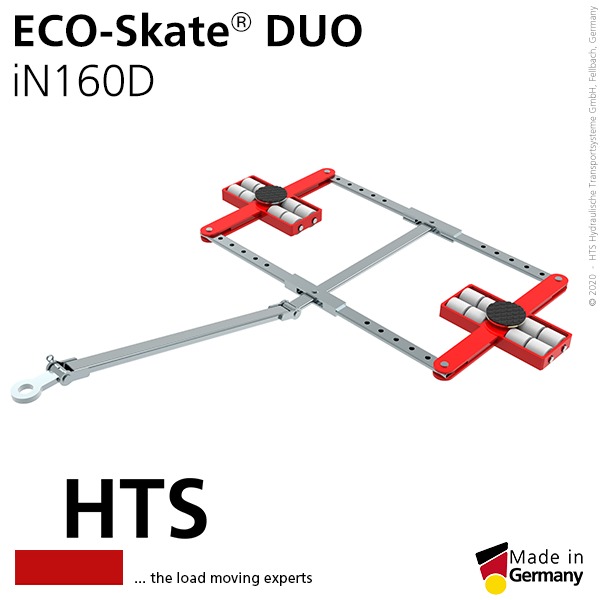

Conjunto iN160D (NY) + iN160D (NY)

Max. Capacity
32000 kg

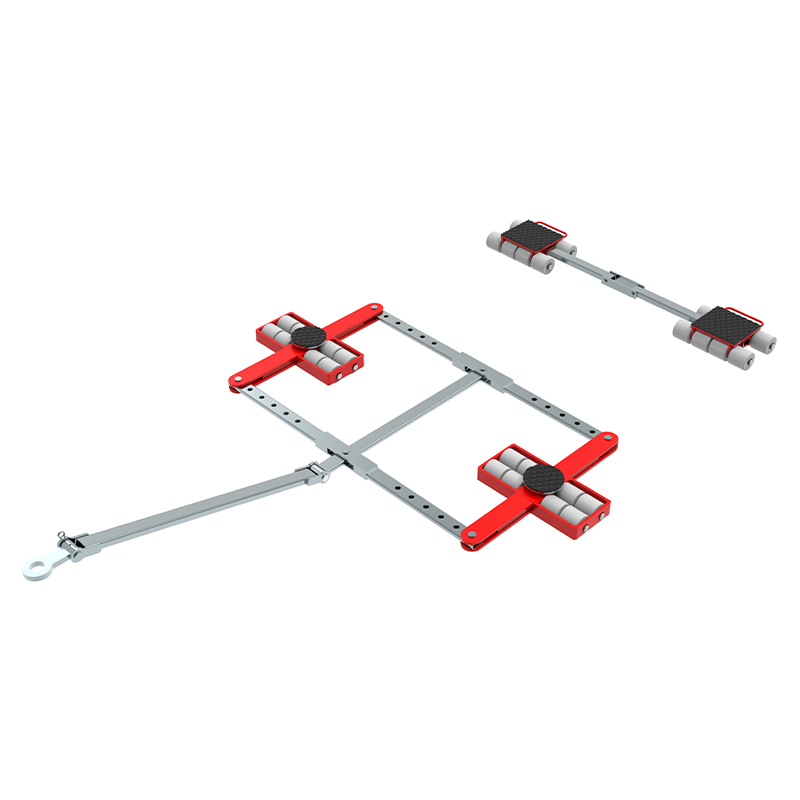

Conjunto iN160D (NY) + iN160S (NY)

Transportfahrwerk ECO-Skate DUO NY - iN160D (NY) + iN160S (NY) Set
Max. Capacity
32000 kg

Conjunto iN80D (NY) + iN80D (NY)

Max. Capacity
16000 kg

Conjunto iN80D (NY) + iN80S (NY)

Max. Capacity
16000 kg

Conjunto i120D (PU) + i120D (PU)

Max. Capacity
24000 kg

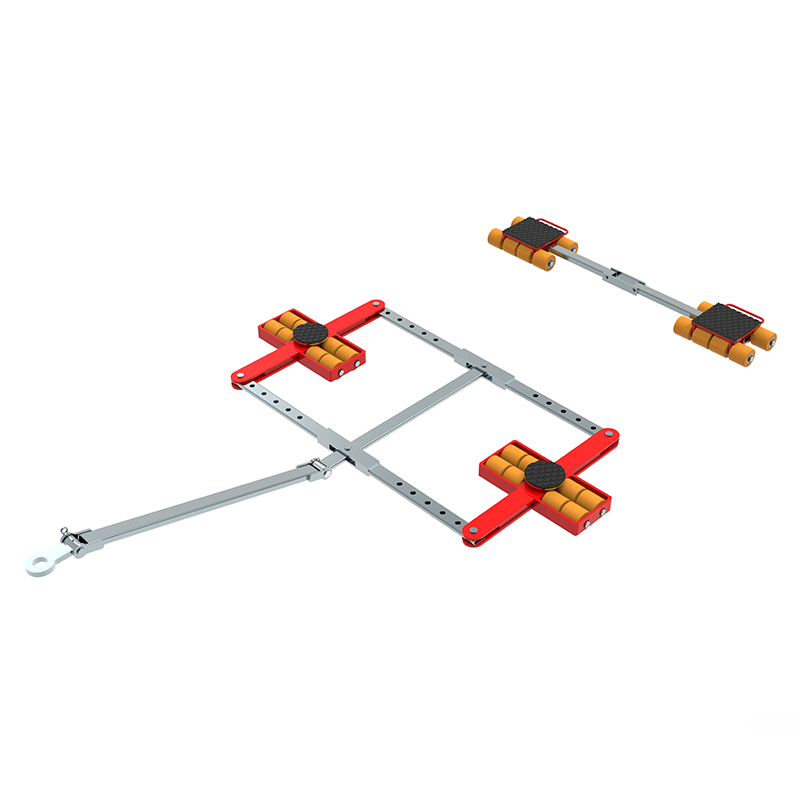

Conjunto i120D (PU) + i120S (PU)

Transportfahrwerk ECO-Skate DUO PU - i120D (PU) + i120S (PU) Set
Max. Capacity
24000 kg

Conjunto i60D (PU) + i60D (PU)

Max. Capacity
12000 kg

Conjunto i60D (PU) + i60S (PU)

Max. Capacity
12000 kg

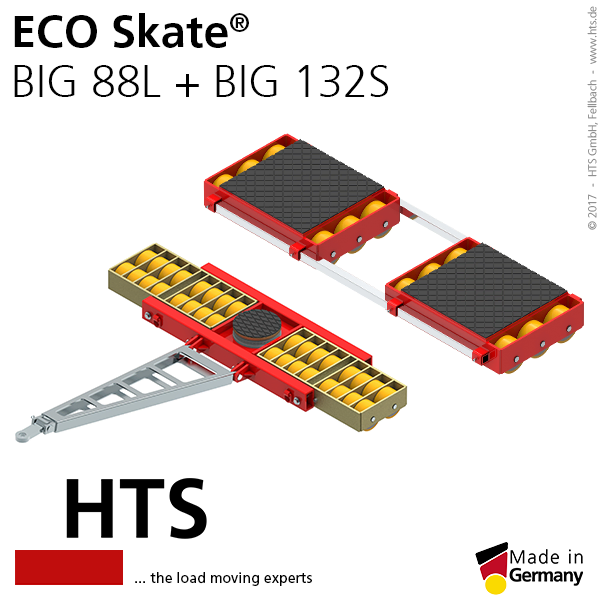

Conjunto BIG88L (PU) + BIG132S (PU)

ECO-Skate BIG88L + BIG132S
Max. Capacity
220000 kg

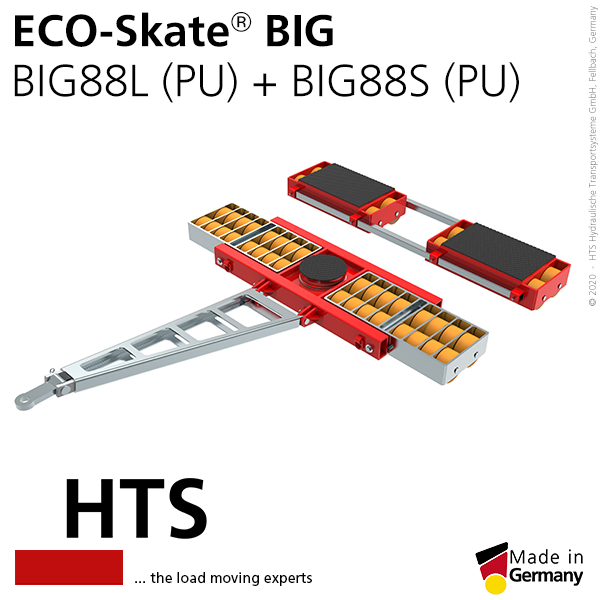

Conjunto BIG88L (PU) + BIG88S (PU)

ECO-Skate-BIG-BIG88L-PU-BIG88S-PU-Set
Max. Capacity
176000 kg

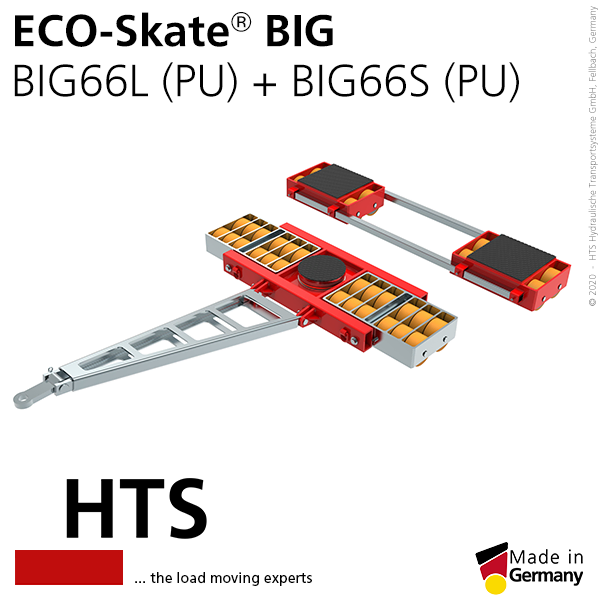

Conjunto BIG66L (PU) + BIG66S (PU)

ECO-Skate-BIG-BIG66L-PU-BIG66S-PU-Set
Weight
132000 kg

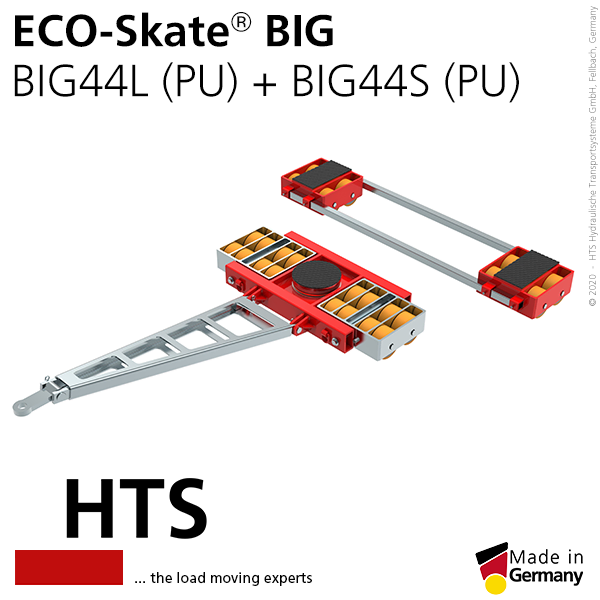

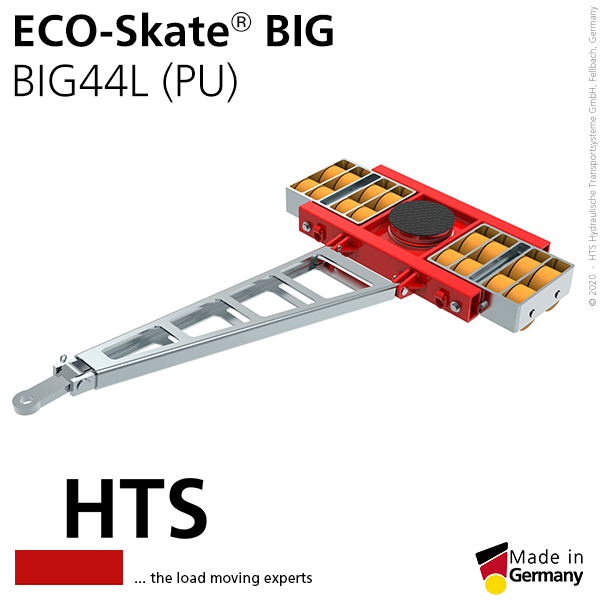

Conjunto BIG44L (PU) + BIG44S (PU)

ECO-Skate-BIG-BIG44L-PU-BIG44S-PU-Set
Max. Capacity
88000 kg

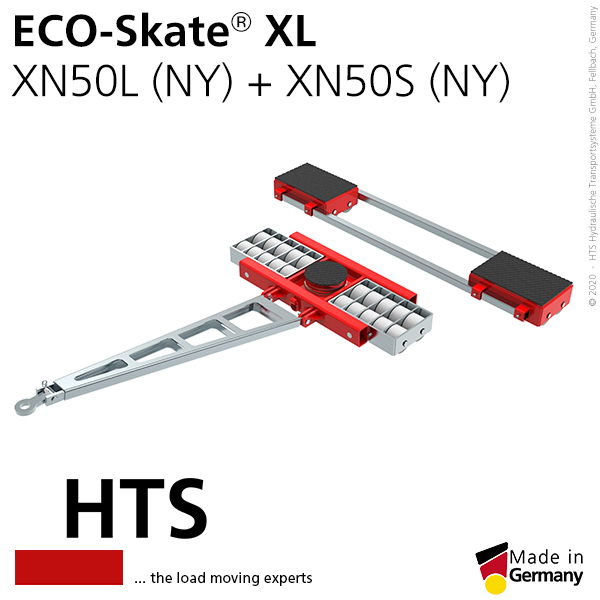

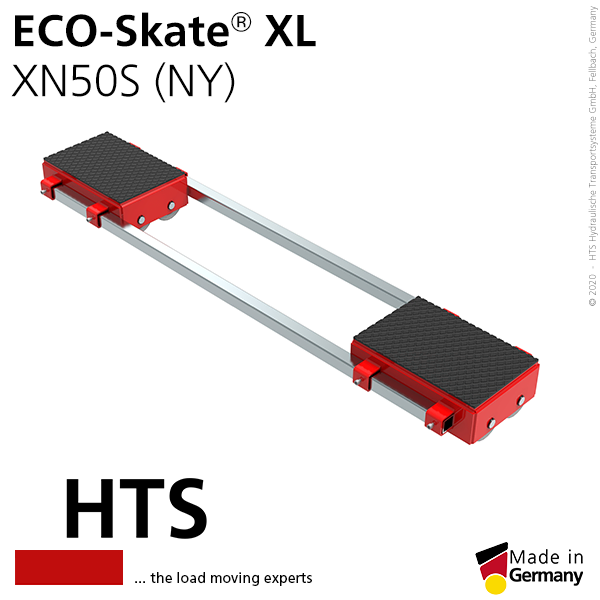

Conjunto XN50L (NY) + XN50S (NY)

Transportfahrwerk ECO-Skate XL NY - XN50L (NY) + XN50S (NY) Set
Max. Capacity
100000 kg

Conjunto XN40L (NY) + XN40S (NY)

ECO-Skate-XL-XN40L-NY-XN40S-NY-Set
Max. Capacity
80000 kg

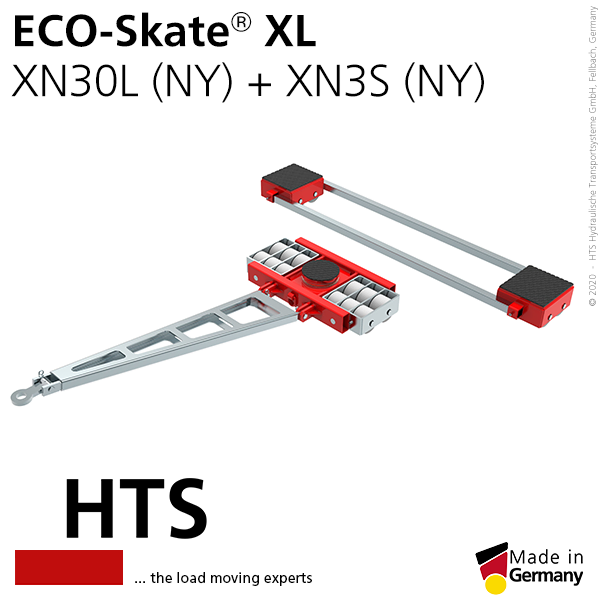

Conjunto XN30L (NY) + XN30S (NY)

ECO-Skate-XL-XN30L-NY-XN30S-NY-Set

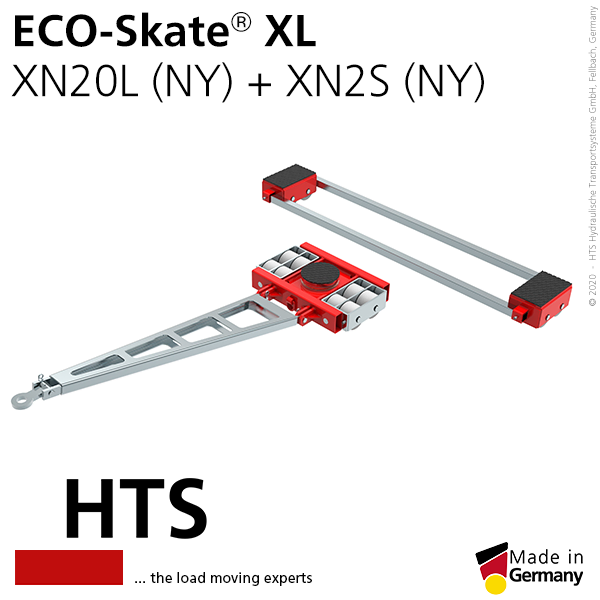

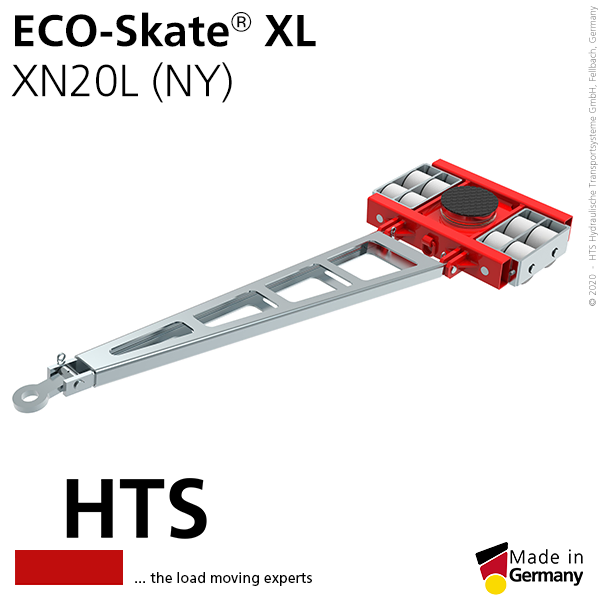

Conjunto XN20L (NY) + XN20S (NY)

ECO-Skate-XL-XN20L-NY-XN20S-NY-Set
Max. Capacity
40000 kg

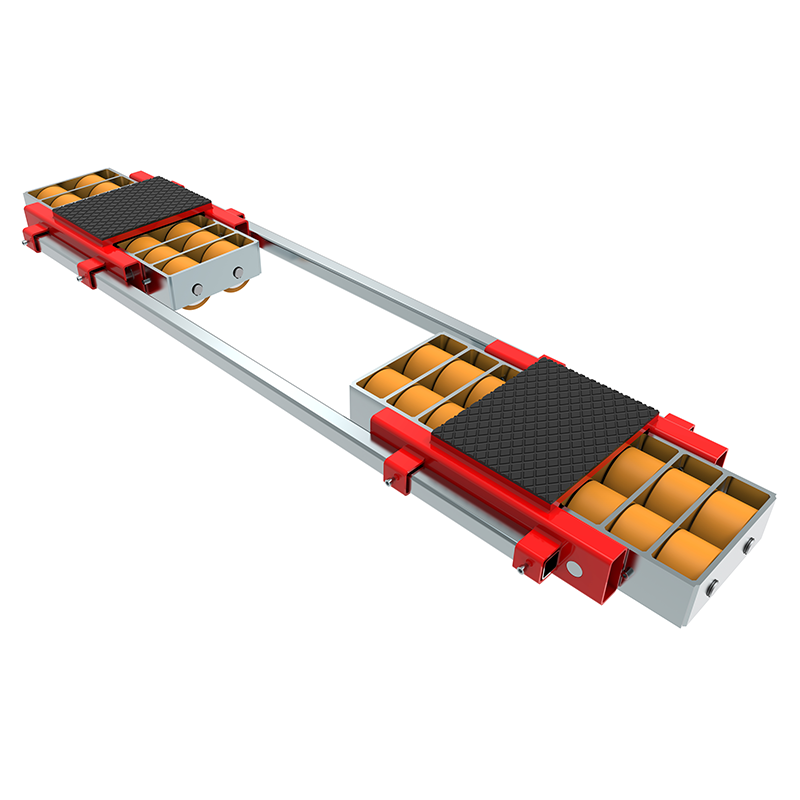

Conjunto X48L (PU) + X64S (PU)

Max. Capacity
112000 kg

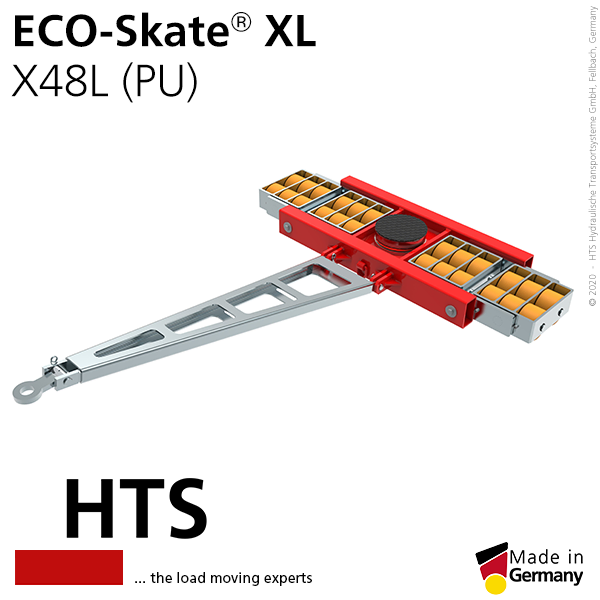

Conjunto X48L (PU) + X48S (PU)

Transportfahrwerk mit Dreipunktauflage - ECO Skate XL
Weight
96000 kg

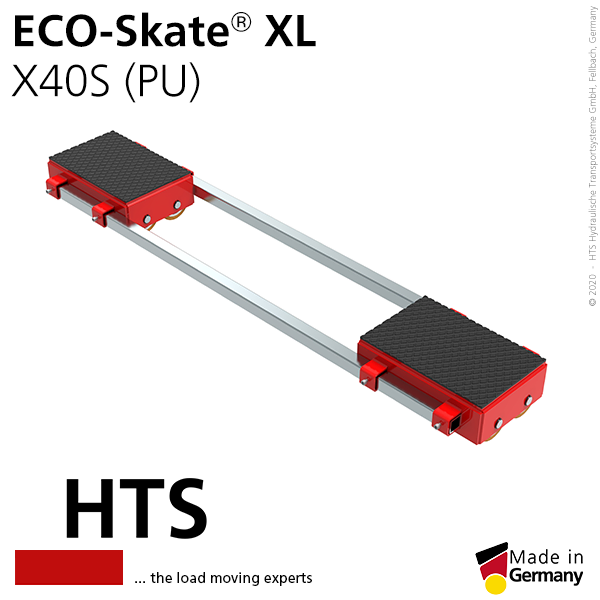

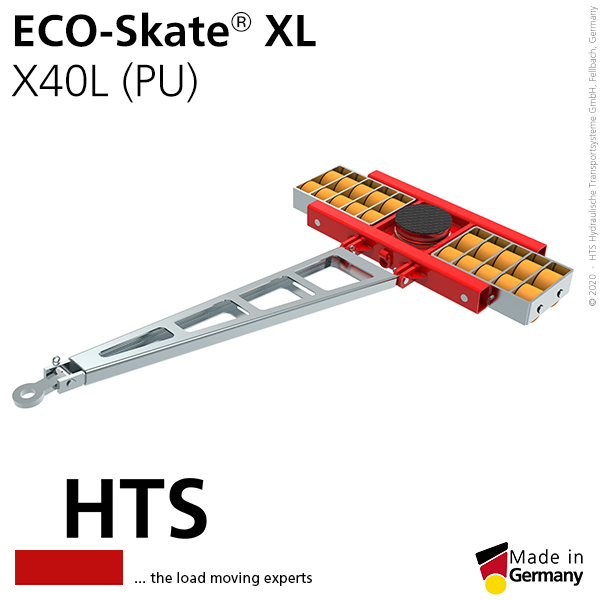

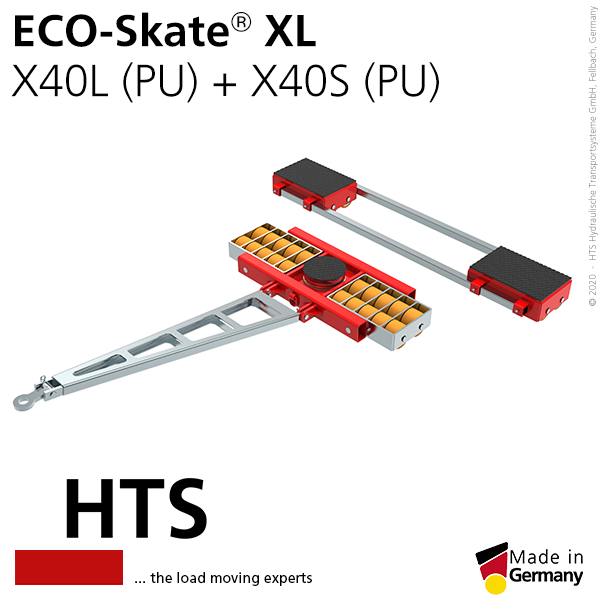

Conjunto X40L (PU) + X40S (PU)

ECO-Skate-XL-X40L-PU-X40S-PU-Set
Weight
80000 kg

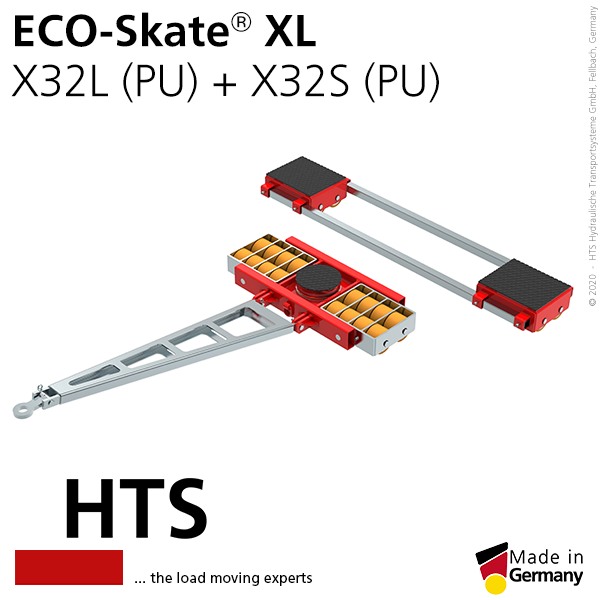

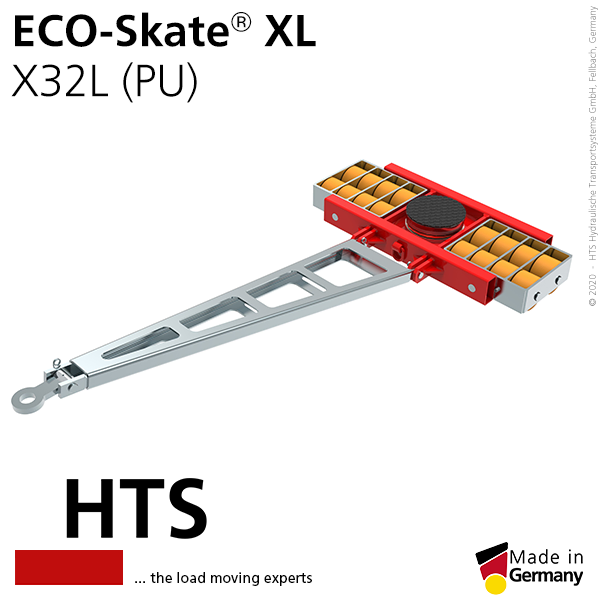

Conjunto X32L (PU) + X32S (PU)

ECO-Skate-XL-X32L-PU-X32S-PU-Set
Weight
64000 kg

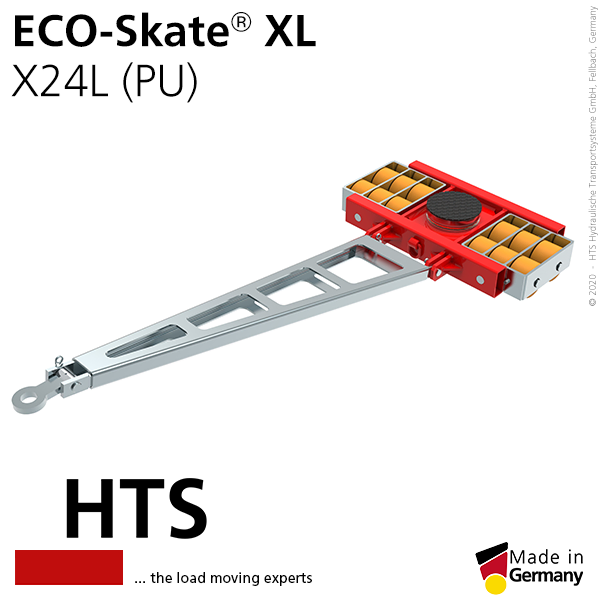

Conjunto X24L (PU) + X24S (PU)

ECO-Skate-XL-X24L-PU-X24S-PU-Set
Weight
48000 kg

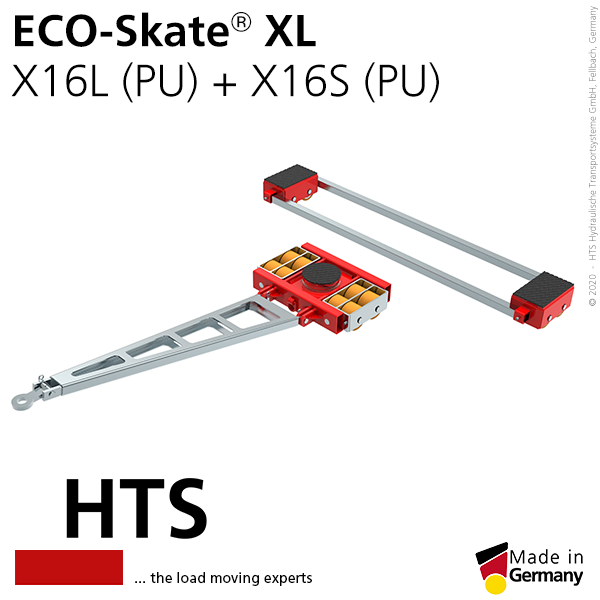

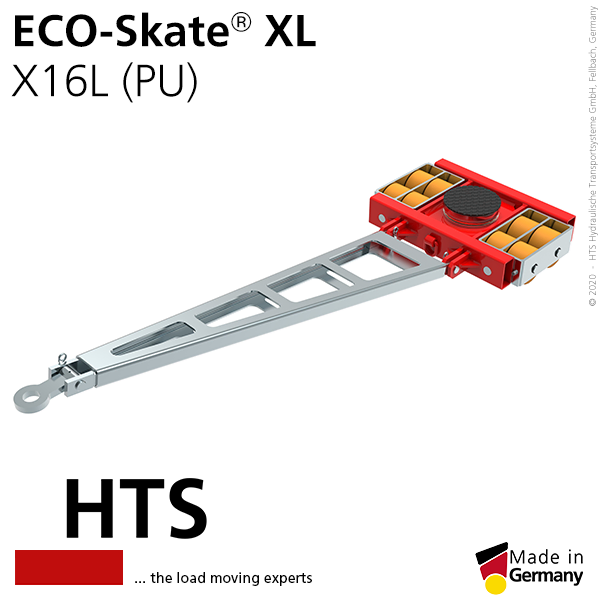

X16L (PU) + Conjunto X16S (PU)

ECO-Skate-XL-X16L-PU-X16S-PU-Set
Weight
32000 kg

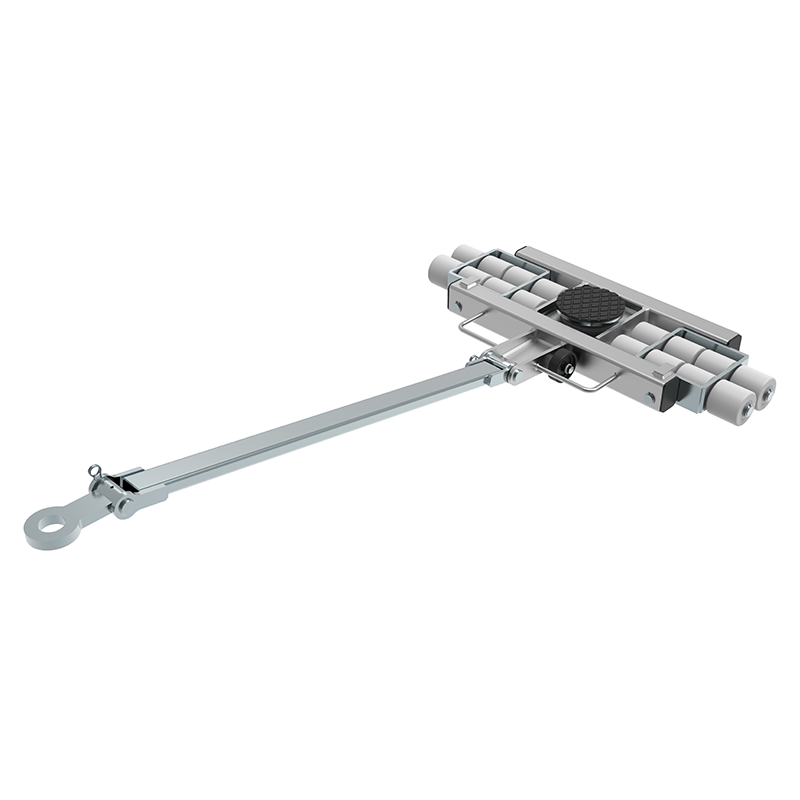

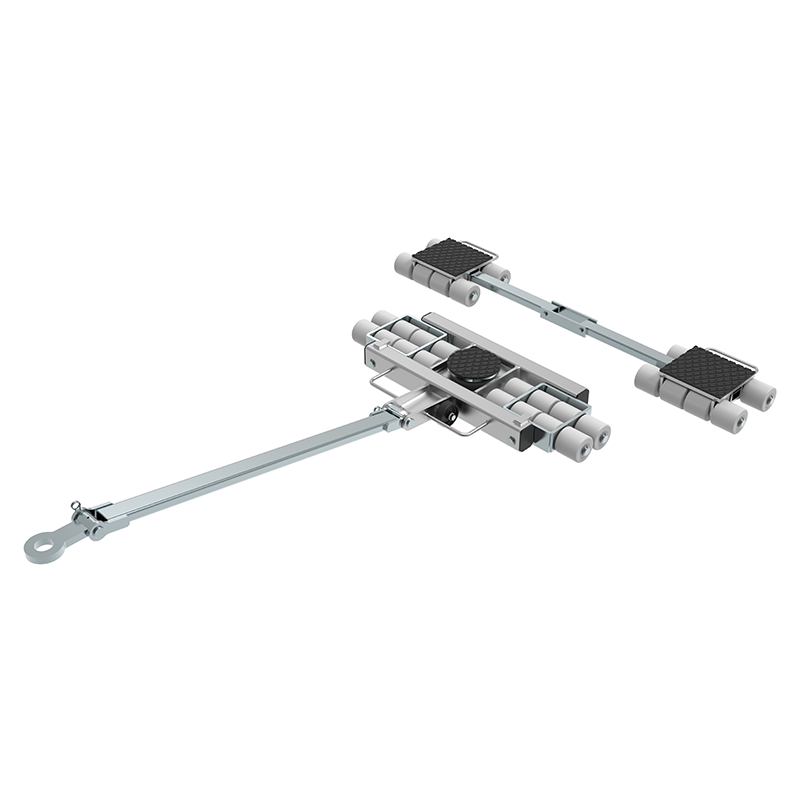

Conjunto iN160L‑CR + iN160S‑CR

Transportfahrwerk ECO-Skate CR iN160L-CR + iN160S-CR Set
Max. Capacity
32000 kg

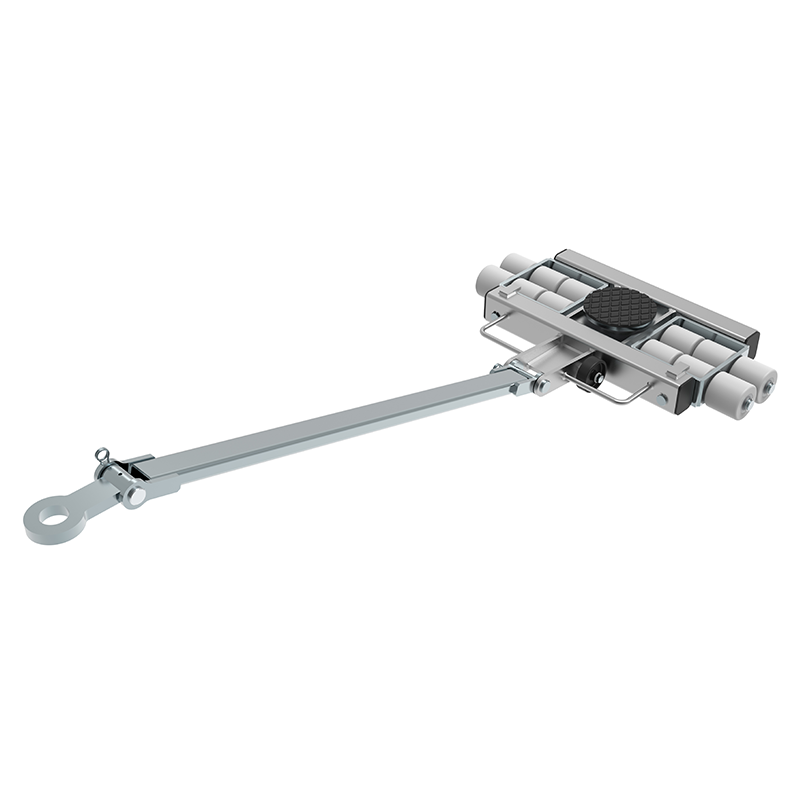

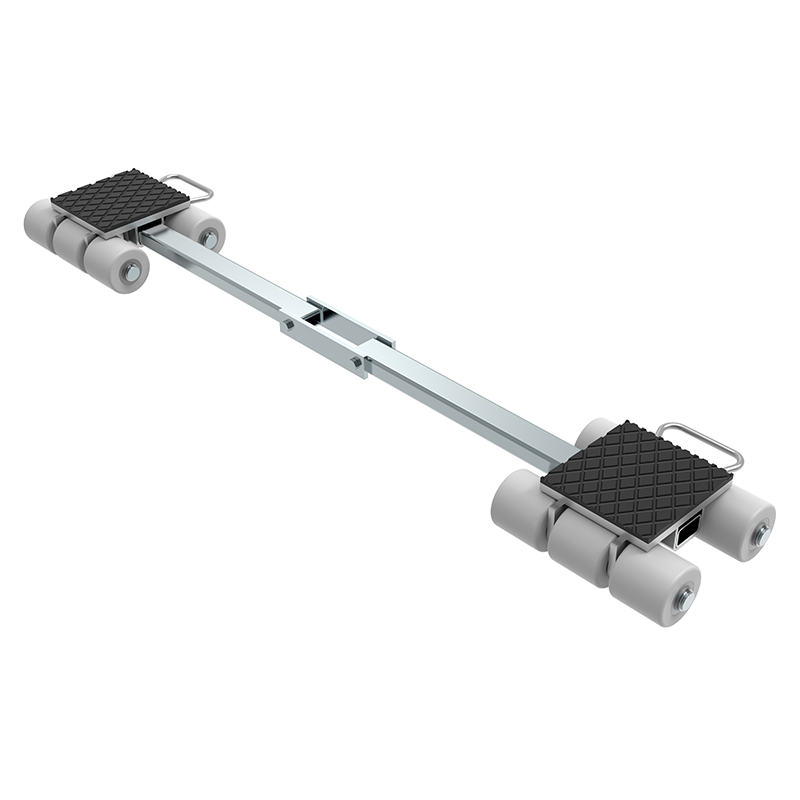

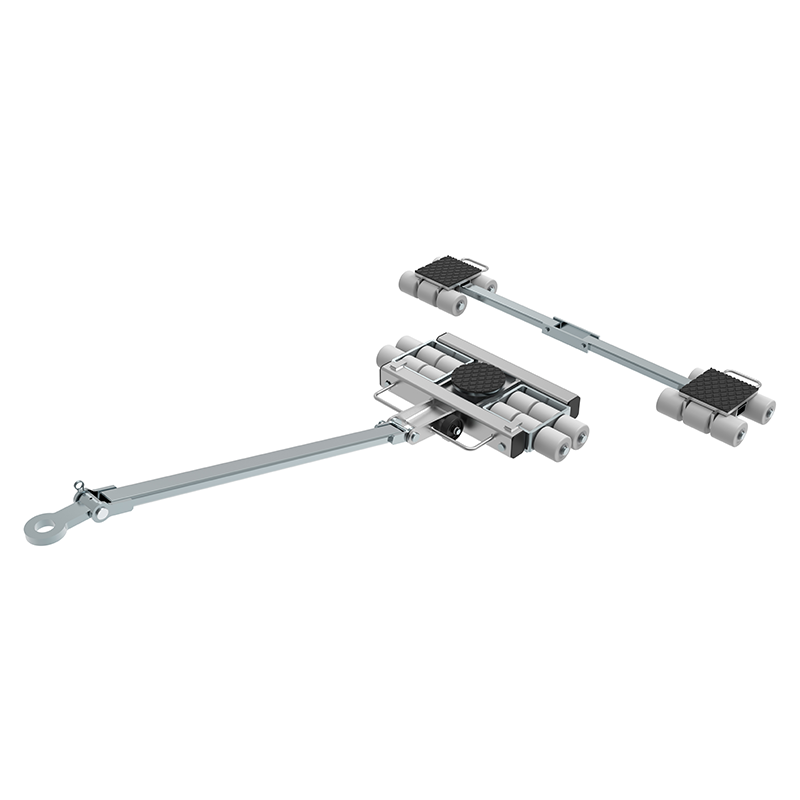

Conjunto iN120L‑CR + iN120S‑CR

HTS ECO-Skate CR iN120L-CR + iN120S-CR Set
Max. Capacity
24000 kg

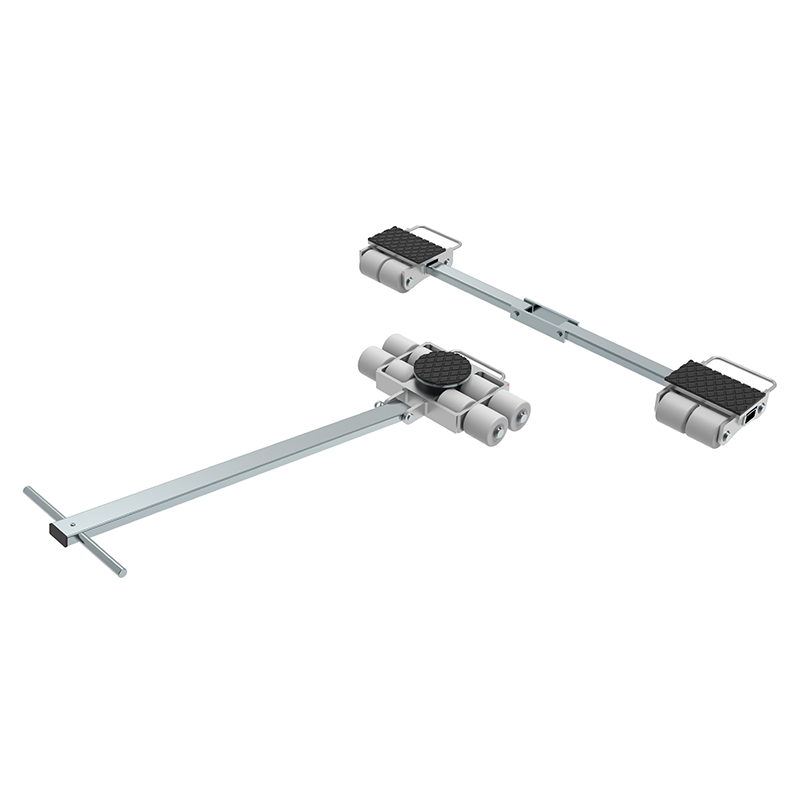

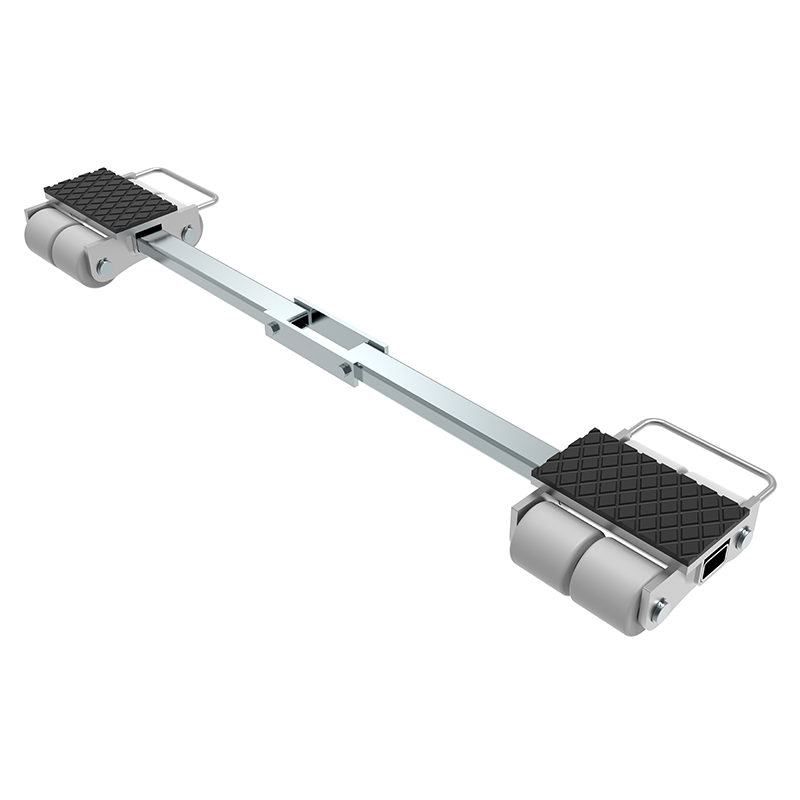

Conjunto iN80L‑CR + iN80S‑CR

HTS ECO-Skate CR iN80L-CR + iN80S-CR Set
Max. Capacity
16000 kg

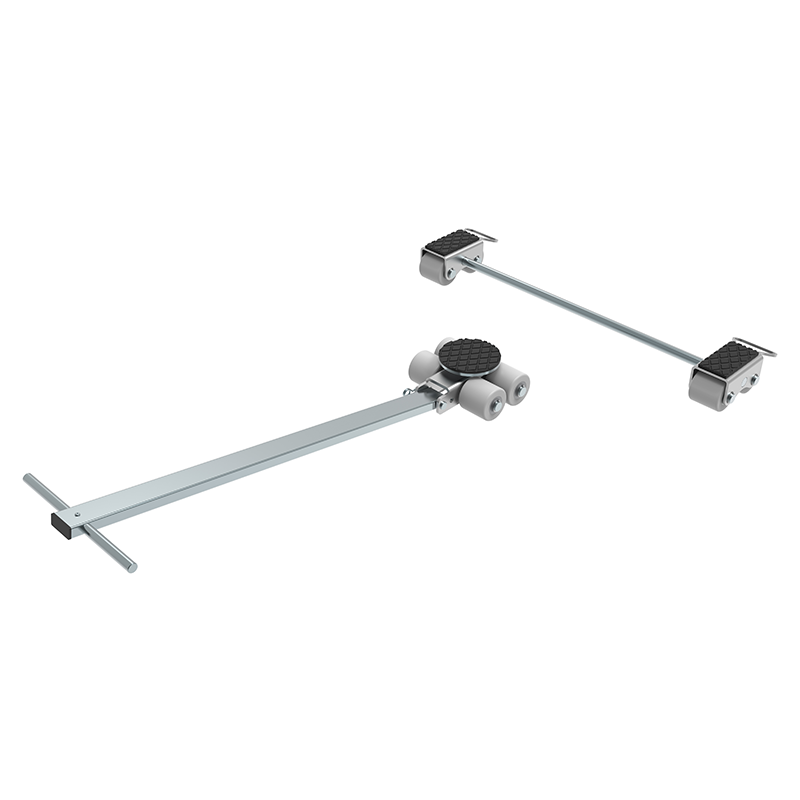

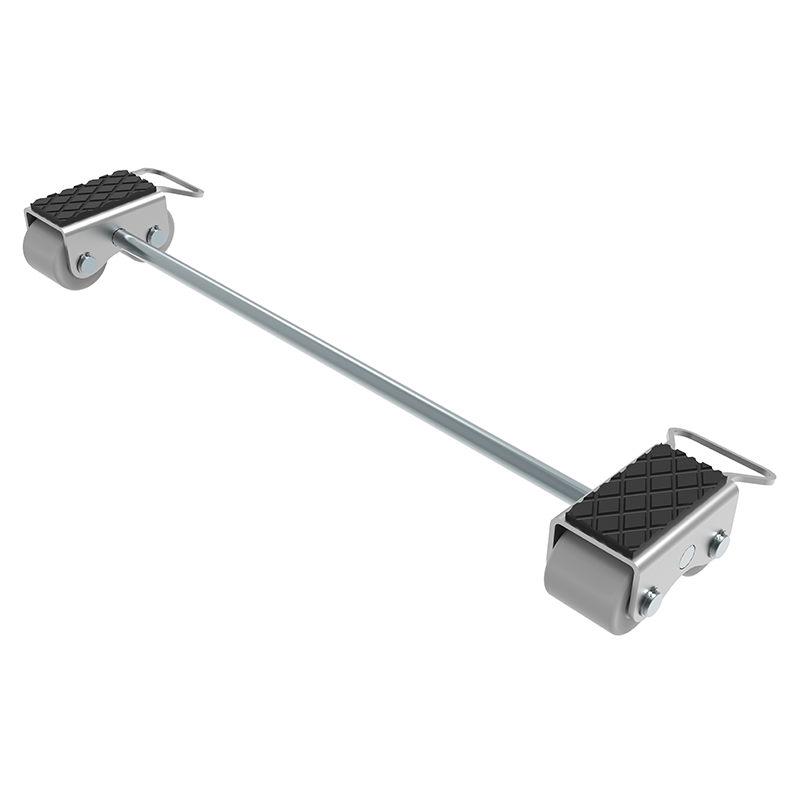

Conjunto iN40L‑CR + iN40S‑CR

HTS ECO-Skate CR iN40L-CR + iN40S-CR Set
Max. Capacity
8000 kg

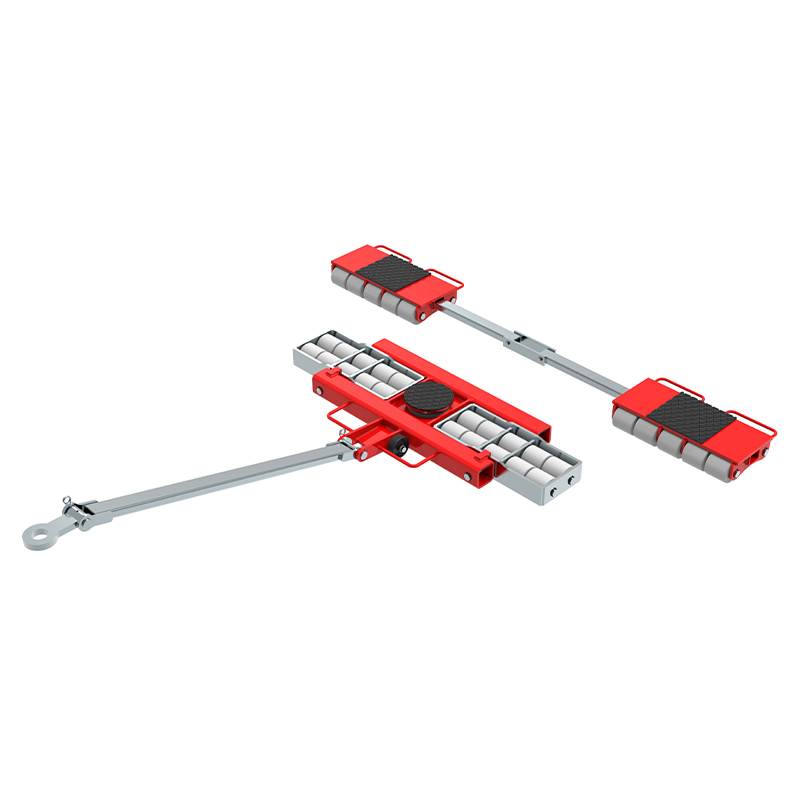

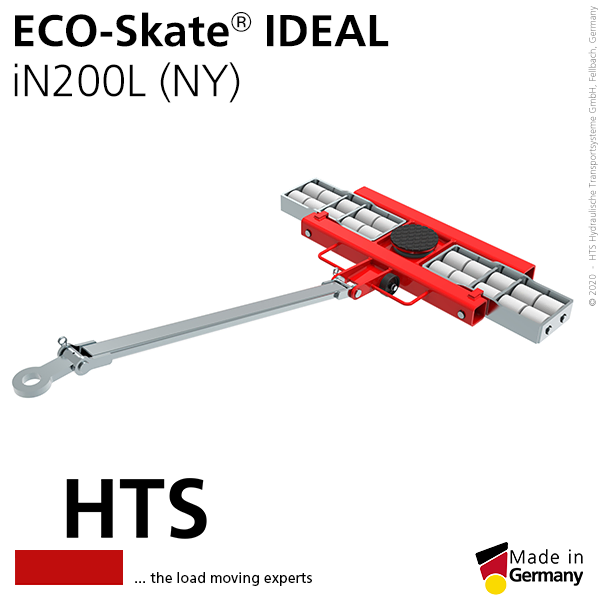

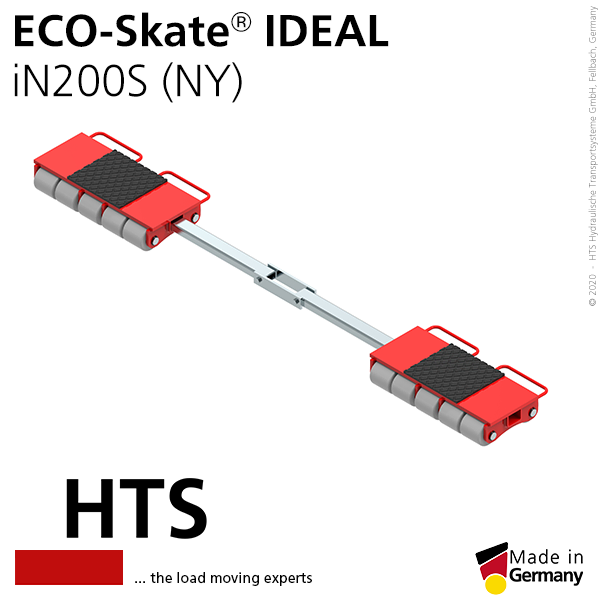

Conjunto iN200L (NY) + iN200S (NY)

Transportfahrwerk ECO-Skate IDEAL iN200L (NY) + iN200S (NY)
Weight
40000 kg

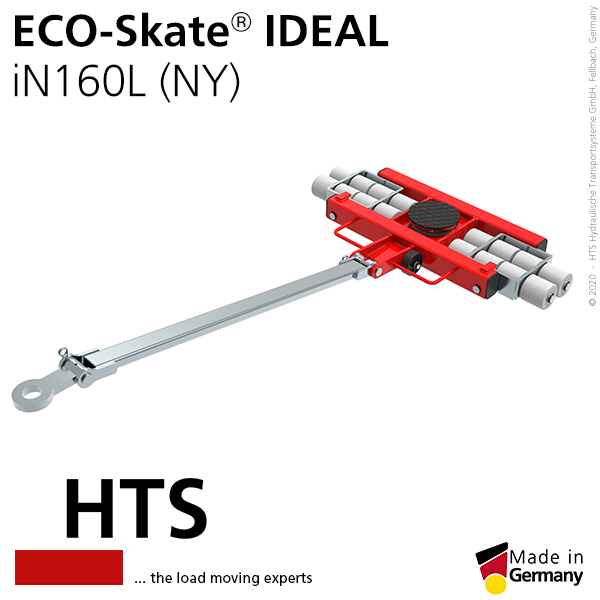

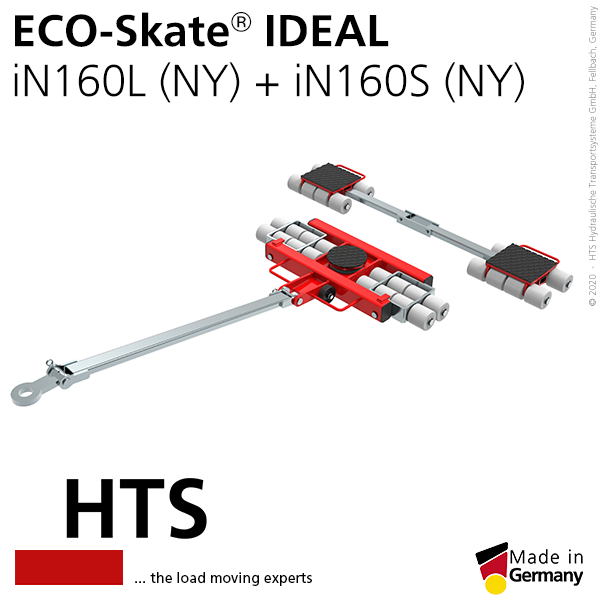

Conjunto iN160L (NY) + iN160S (NY)

ECO-Skate-IDEAL-iN160L-NY-iN160S-NY-Set
Weight
32000 kg

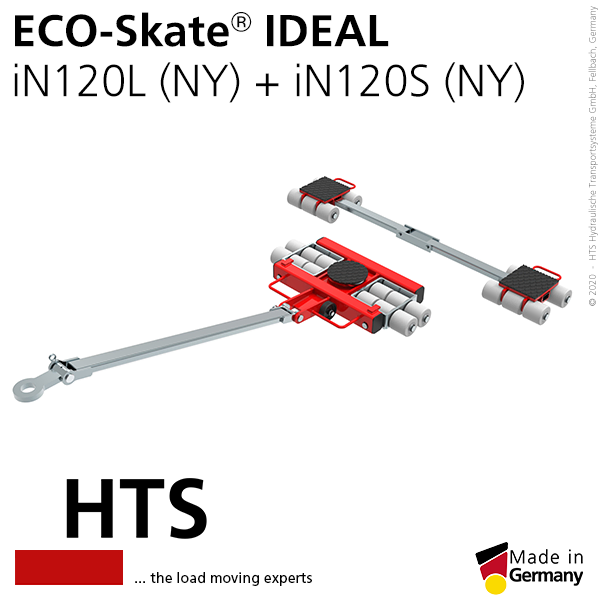

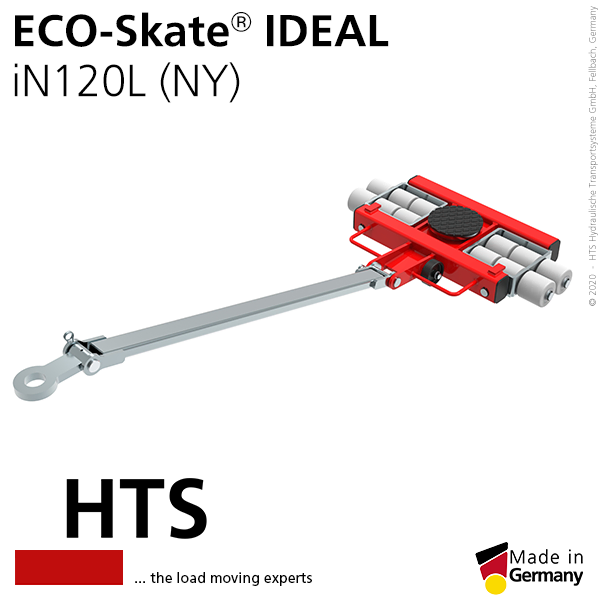

Conjunto iN120L (NY) + iN120S (NY)

ECO-Skate-IDEAL-iN120L-NY-iN120S-NY-Set
Weight
24000 kg

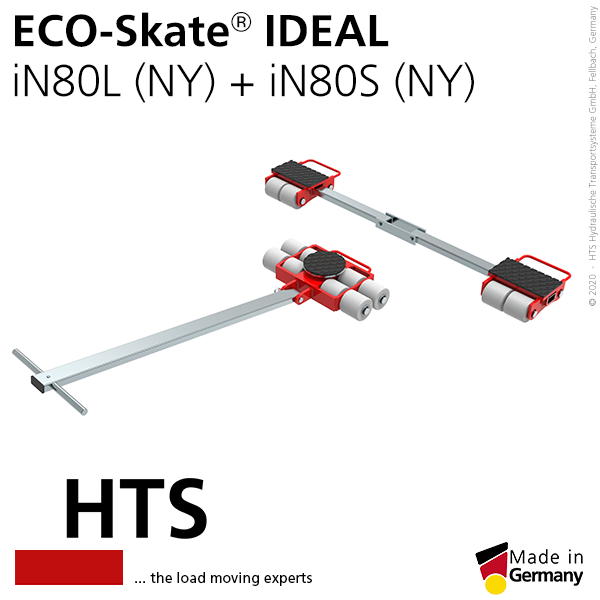

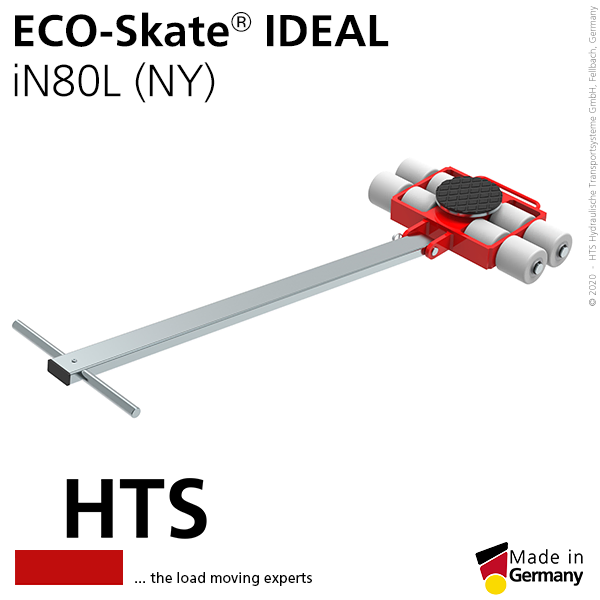

Conjunto iN80L (NY) + iN80S (NY)

ECO-Skate-IDEAL-iN80L-NY-iN80S-NY-Set
Weight
16000 kg

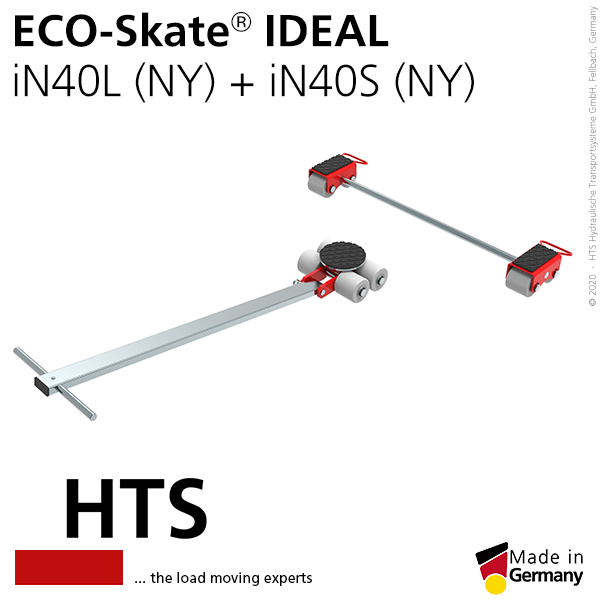

Conjunto iN40L (NY) + iN40S (NY)

ECO-Skate-IDEAL-iN40L-NY-iN40S-NY-Set
Weight
8000 kg

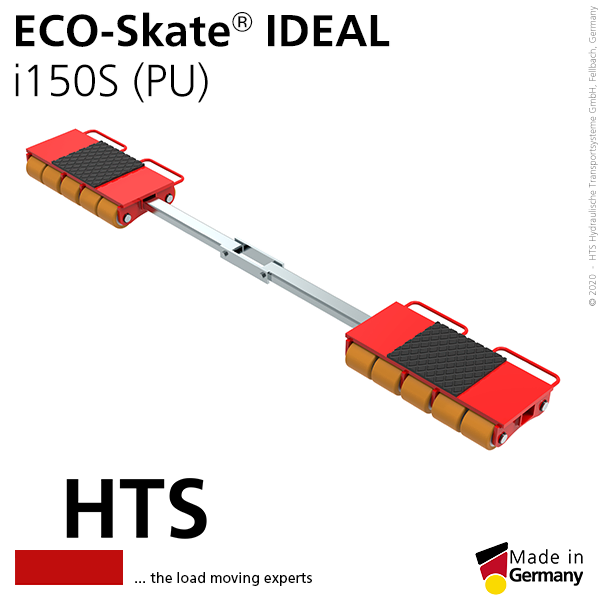

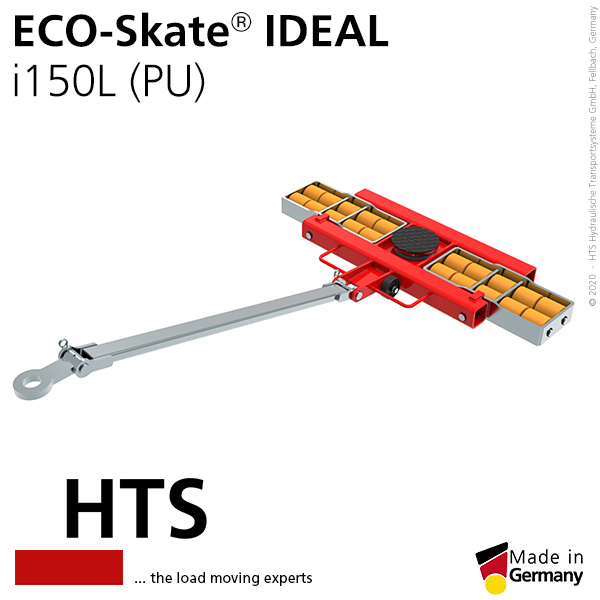

Conjunto i150L (PU) + i150S (PU)

Transportfahrwerk ECO-Skate IDEAL i150L (PU) + i150S (PU) Set
Max. Capacity
30000 kg

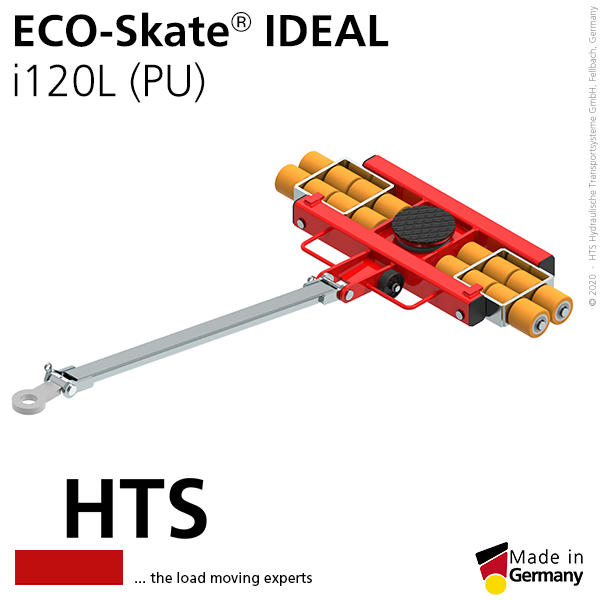

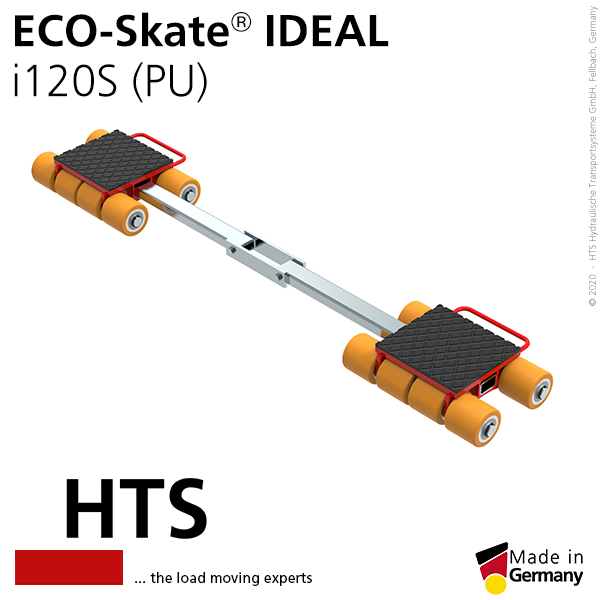

Conjunto i120L (PU) + i120S (PU)

ECO-Skate-IDEAL-i120L-PU-i120S-PU-Set-174px
Max. Capacity
24000 kg

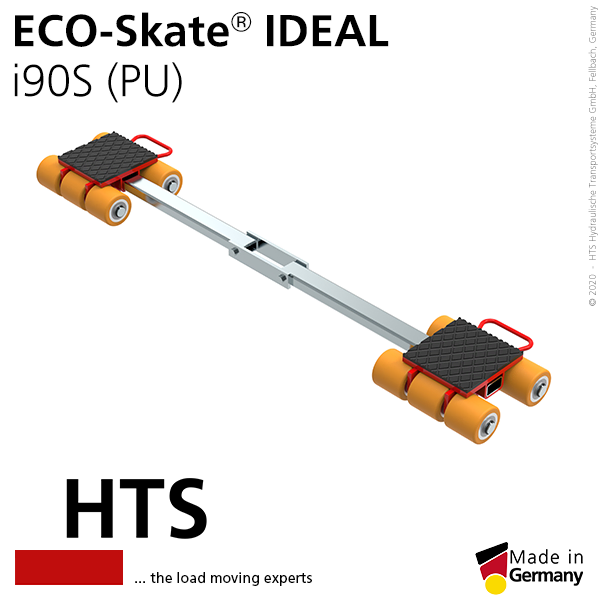

Conjunto i90L (PU) + i90S (PU)

ECO-Skate-IDEAL-i90L-PU-i90S-PU-Set
Max. Capacity
18000 kg

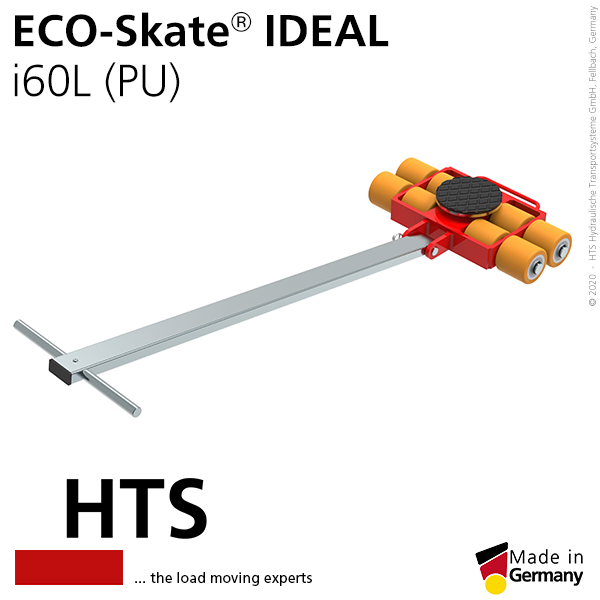

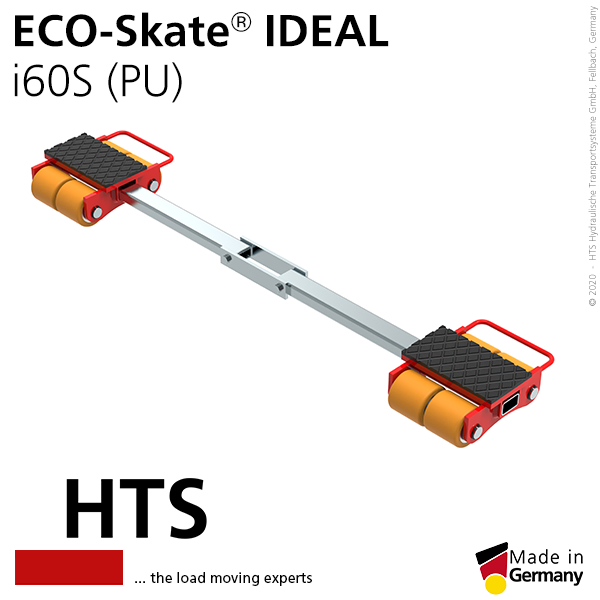

Conjunto i60L (PU) + i60S (PU)

ECO-Skate IDEAL i60S-i60L (PU)
Max. Capacity
12000 kg

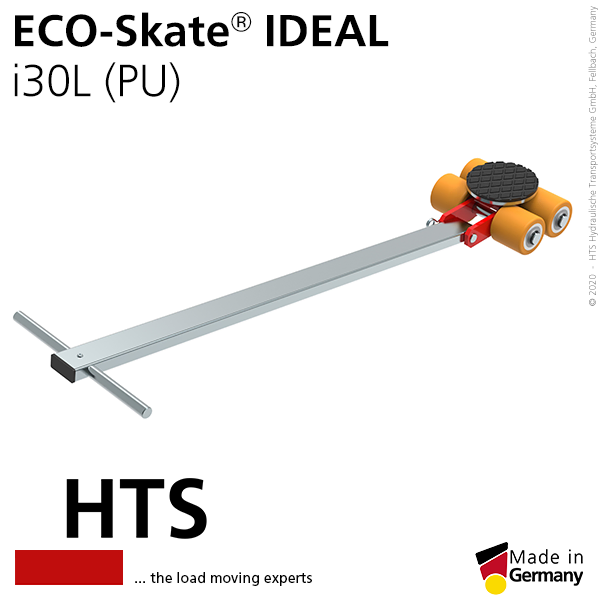

Conjunto i30L (PU) + i30S (PU)

ECO-Skate-IDEAL-i30L-PU-i30S-PU-Set
Max. Capacity
6000 kg

NY Ø180x89xØ30

ECO-Skate-Rollen-Nylonroller-NY-Ø180
Article Number
11.180.11.25
Max. Capacity
3000 kg
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 180 x 89 / Ø 30 mm
Weight
3 kg
Fits into …
BIGplus SPEZIAL

NY Ø140x86xØ30

ECO-Skate-Rollen-Nylonroller-NY-Ø140
Article Number
11.140.10.25
Max. Capacity
2500 kg
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Weight
2 kg
Fits into …
XL, DUO XL

NY Ø85x87xØ25

ECO-Skate-Rollen-Nylonroller-NY-Ø85-IDEAL
Article Number
11.085.10.14
Max. Capacity
1000 kg
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Weight
0.7 kg
Fits into …
IDEAL, DUO, ROTO, CR

PUAL Ø180x89xØ30

ECO-Skate-Rollen-Polyurethanrollen-PU-Ø180
Article Number
11.180.20.25
Max. Capacity
2750 kg
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 180 x 89 / Ø 30 mm
Weight
5 kg
Fits into …
BIG

PUAL Ø140x85xØ30

ECO-Skate-Rollen-Polyurethanrollen-PU-Ø140
Article Number
11.140.20.25
Max. Capacity
2000 kg
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Weight
2.75 kg
Fits into …
XL, DUO XL, ISOCON XL, ROTO XL

Biela VI‑20A

HTS ECO-Skate Verbindungsstange VI-20A / VI-25A
Article Number
940.252.000
Dimensions: Length x Width x Height
2000 x 100 x 30 mm
Weight
8.5 kg
Fits into …
ROTO

Biela VI‑20

HTS ECO-Skate VI-20 VI-25 VI-30
Article Number
940.620.920
Dimensions: Length x Width x Height
2000 x 50 x 30 mm
Weight
6.8 kg
Fits into …
IDEAL

Barra de tração DR3

HTS ECO-Skate Deichsel DR3
Article Number
100.009.036
Handle Length
1170 mm
Weight
9.2 kg
Fits into …
ROTO

Barra de tração DR2

HTS ECO-Skate Deichsel DR2
Article Number
100.009.035
Handle Length
1170 mm
Weight
8.6 kg
Fits into …
ROTO

Barra de tração DR1

HTS ECO-Skate Deichsel DR1
Article Number
100.009.030
Handle Length
990 mm
Weight
7 kg
Fits into …
ROTO

XN40D (NY)

ECO-Skate-DUO-XN40D-NY
Article Number
10.400.03.30
Load Areas x Max. Capacity
2 x 20000 kg
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x Diameter
2 x Ø 220 mm
Handle Length
1620 mm
Adjustability
4 x (1300 – 1900) mm
Dimensions: Length x Width x Height
1847 x 2624 x 180 mm
Weight
387 kg

XN20D (NY)

ECO-Skate-DUO-XN20D-NY
Article Number
10.200.03.30
Load Areas x Max. Capacity
2 x 10000 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x Diameter
2 x Ø 220 mm
Handle Length
1620 mm
Adjustability
5 x (1300 – 1900) mm
Dimensions: Length x Width x Height
1847 x 2831 x 180 mm
Weight
184 kg

X48D (PU)

ECO-SkateECO-Skate-DUO-X48D-PU-DUO-X48D-PU
Article Number
10.480.02.30
Load Areas x Max. Capacity
2 x 24000 kg
Wheels
2 x 12 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x Diameter
2 x Ø 220 mm
Handle Length
1620 mm
Adjustability
4 x (1300 – 1900) mm
Dimensions: Length x Width x Height
1847 x 2831 x 180 mm
Weight
450 kg

X32D (PU)

ECO-Skate-DUO-X32D-PU
Article Number
10.320.02.30
Load Areas x Max. Capacity
2 x 16000 kg
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x Diameter
2 x Ø 220 mm
Handle Length
1620 mm
Adjustability
4 x (1300 – 1900) mm
Dimensions: Length x Width x Height
1847 x 2624 x 180 mm
Weight
399 kg

X16D (PU)

ECO-Skate-DUO-X16D-PU
Article Number
10.160.02.30
Load Areas x Max. Capacity
2 x 8000 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x Diameter
2 x Ø 170 mm
Handle Length
1620 mm
Adjustability
5 x (750 – 1550) mm
Dimensions: Length x Width x Height
1265 x 1927 x 180 mm
Weight
190 kg

iN160D (NY)

ECO-Skate-DUO-iN160D-NY
Article Number
10.160.01.30
Load Areas x Max. Capacity
2 x 8000 kg
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x Diameter
2 x Ø 150 mm
Handle Length
1170 mm
Adjustability
6 x (560 – 1300) mm
Dimensions: Length x Width x Height
963 x 1784 x 110 mm
Weight
80 kg

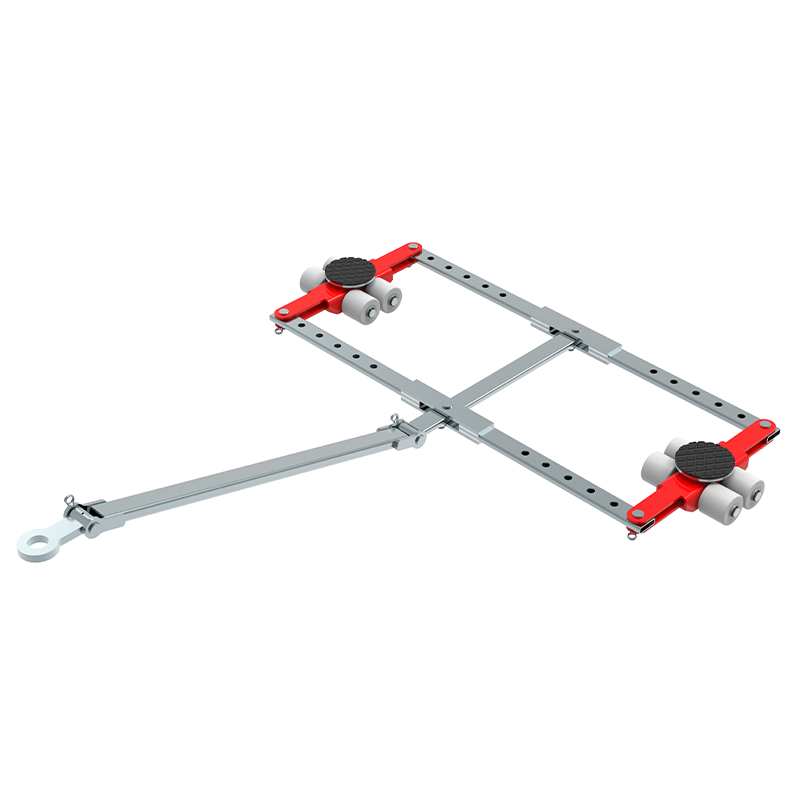

iN80D (NY)

ECO-Skate-DUO-XL-iN80D-NY
Article Number
10.080.01.30
Load Areas x Max. Capacity
2 x 4000 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x Diameter
2 x Ø 150 mm
Handle Length
1170 mm
Adjustability
6 x (560 – 1300) mm
Dimensions: Length x Width x Height
717 x 1581 x 110 mm
Weight
46 kg

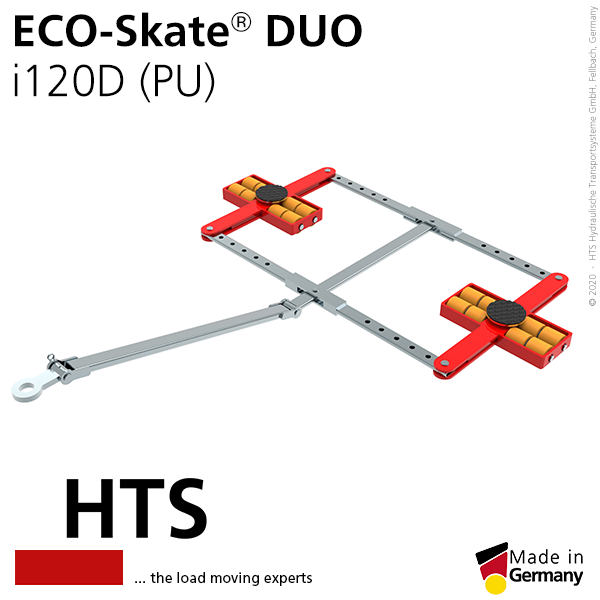

i120D (PU)

ECO-Skate-DUO-i120D-PU
Article Number
10.120.00.30
Load Areas x Max. Capacity
2 x 6000 kg
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x Diameter
2 x Ø 150 mm
Handle Length
1170 mm
Adjustability
6 x (560 – 1300) mm
Dimensions: Length x Width x Height
963 x 1784 x 110 mm
Weight
88 kg

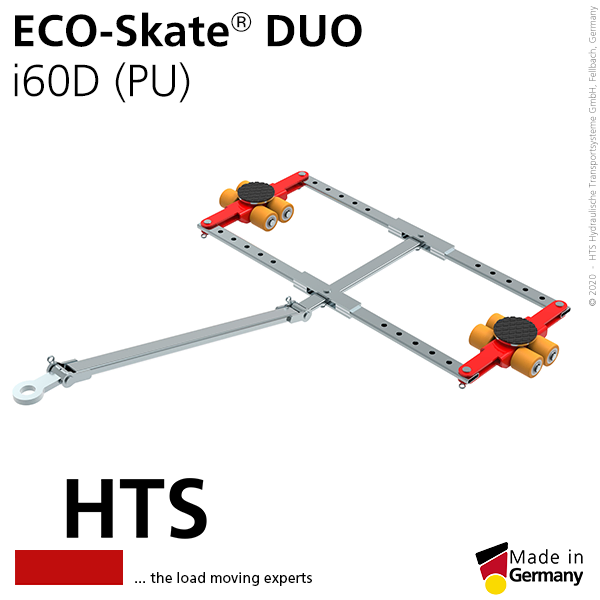

i60D (PU)

ECO-Skate-DUO-i60D-PU
Article Number
10.060.00.30
Load Areas x Max. Capacity
2 x 3000 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x Diameter
2 x Ø 150 mm
Handle Length
1170 mm
Adjustability
6 x (560 – 1300) mm
Dimensions: Length x Width x Height
717 x 1581 x 110 mm
Weight
51 kg

BIG132S (PU)

ECO-Skate-BIG-BIG132S-PU
Article Number
09.132.04.20
Load Areas x Max. Capacity
2 x 66000 kg
Wheels
2 x 24 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 180 x 89 / Ø 30 mm
Load Areas x (Length x Width)
2 x (590 x 610) mm
Adjustability
848 – 1324 mm
Dimensions: Length x Width x Height
732 x 848 x 220 mm
Weight
598 kg

BIG88S (PU)

ECO-Skate-BIG-BIG88S-PU
Article Number
09.088.04.20
Load Areas x Max. Capacity
2 x 44000 kg
Wheels
2 x 16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 180 x 89 / Ø 30 mm
Load Areas x (Length x Width)
2 x (400 x 610) mm
Adjustability
848 – 1324 mm
Dimensions: Length x Width x Height
542 x 848 x 220 mm
Weight
432 kg

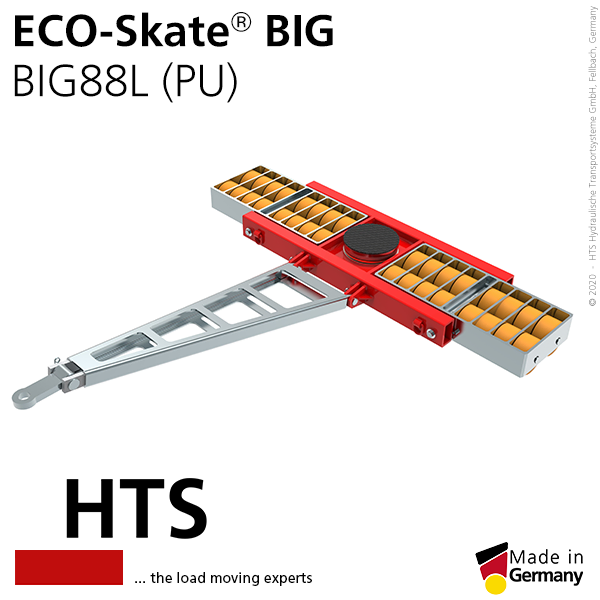

BIG88L (PU)

ECO-Skate-BIG-BIG88L-PU
Article Number
09.088.04.10
Max. Capacity
88000 kg
Wheels
32 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 180 x 89 / Ø 30 mm
Load Area Diameter
Ø 300 mm
Handle Length
1775 mm
Dimensions: Length x Width x Height
738 x 2213 x 220 mm
Weight
585 kg

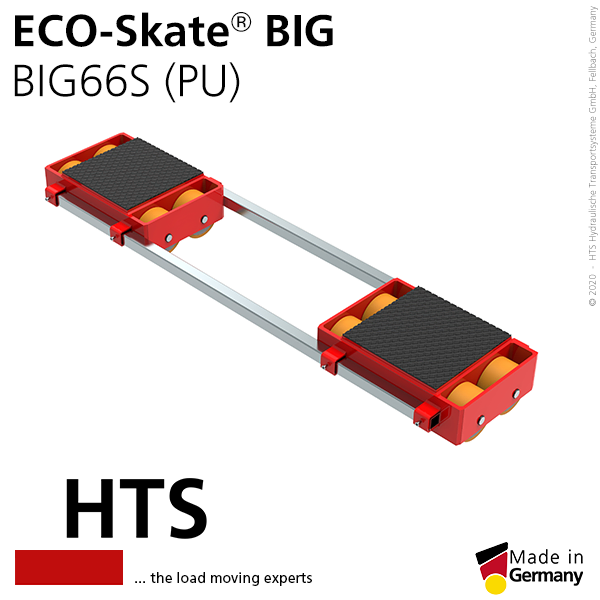

BIG66S (PU)

ECO-Skate-BIG-BIG66S-PU
Article Number
09.066.04.20
Load Areas x Max. Capacity
2 x 33000 kg
Wheels
2 x 12 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 180 x 89 / Ø 30 mm
Load Areas x (Length x Width)
2 x (400 x 406) mm
Adjustability
642 – 1530 mm
Dimensions: Length x Width x Height
542 x 642 x 220 mm
Weight
326 kg

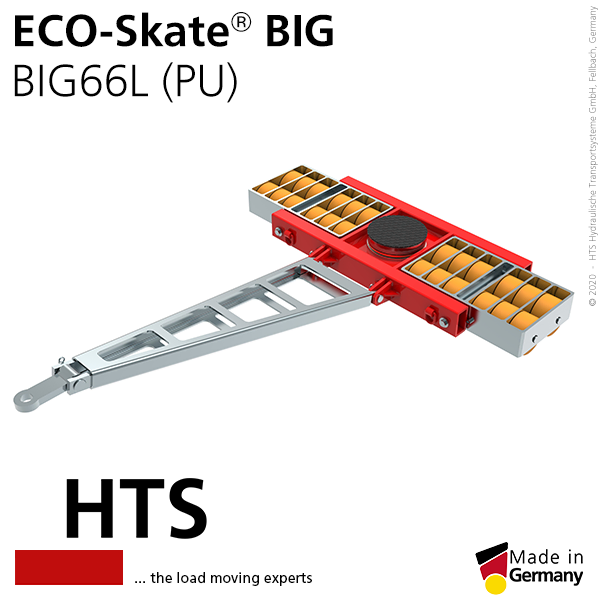

BIG66L (PU)

ECO-Skate-BIG-BIG66L-PU
Article Number
09.066.04.10
Max. Capacity
66000 kg
Wheels
24 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 180 x 89 / Ø 30 mm
Load Area Diameter
Ø 300 mm
Handle Length
1775 mm
Dimensions: Length x Width x Height
738 x 1802 x 220 mm
Weight
489 kg

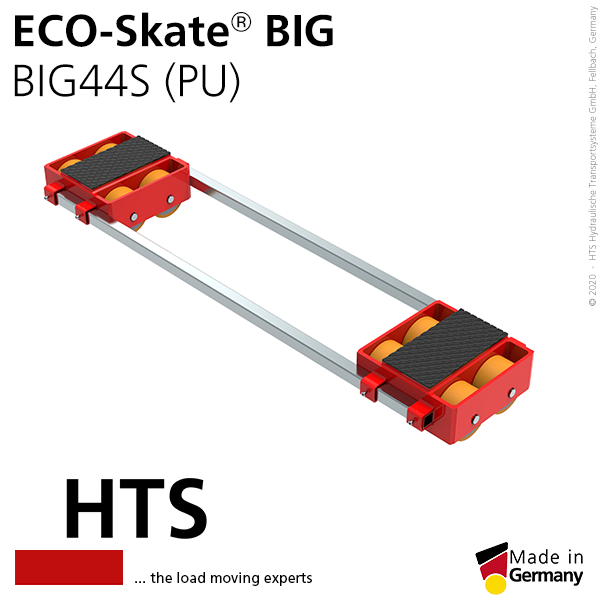

BIG44S (PU)

ECO-Skate-BIG-BIG44S-PU
Article Number
09.044.04.20
Load Areas x Max. Capacity
2 x 22000 kg
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 180 x 89 / Ø 30 mm
Load Areas x (Length x Width)
2 x (402 x 204) mm
Adjustability
436 – 1736 mm
Dimensions: Length x Width x Height
542 x 436 x 220 mm
Weight
220 kg

BIG44L (PU)

ECO-Skate-BIG-BIG44L-PU
Article Number
09.044.04.10
Max. Capacity
44000 kg
Wheels
16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 180 x 89 / Ø 30 mm
Load Area Diameter
Ø 300 mm
Handle Length
1775 mm
Dimensions: Length x Width x Height
738 x 1390 x 220 mm
Weight
392 kg

XN50S (NY)

ECO-Skate-XL-XN50S-NY
Article Number
10.500.03.20
Load Areas x Max. Capacity
2 x 25000 kg
Wheels
2 x 10 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (318 x 480) mm
Adjustability
550 – 1650 mm
Dimensions: Length x Width x Height
456 x 507 x 180 mm
Weight
174 kg

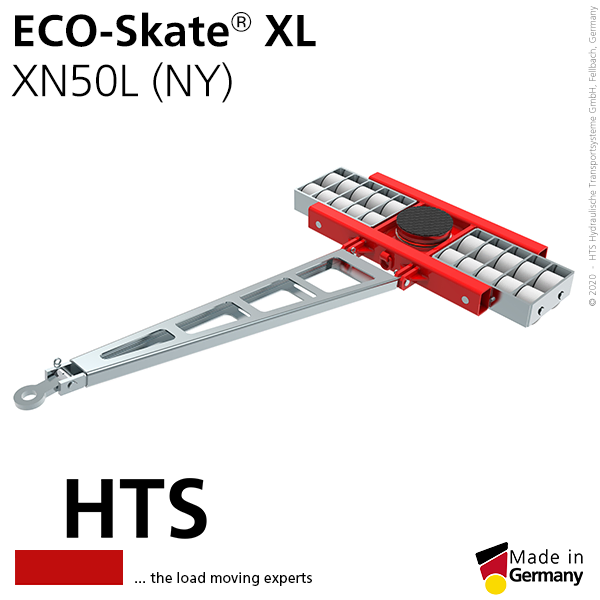

XN50L (NY)

ECO-Skate-XL-XN50L-NY
Article Number
10.500.03.10
Max. Capacity
50000 kg
Wheels
20 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diameter
Ø 250 mm
Handle Length
1620 mm
Dimensions: Length x Width x Height
607 x 1335 x 180 mm
Weight
214 kg

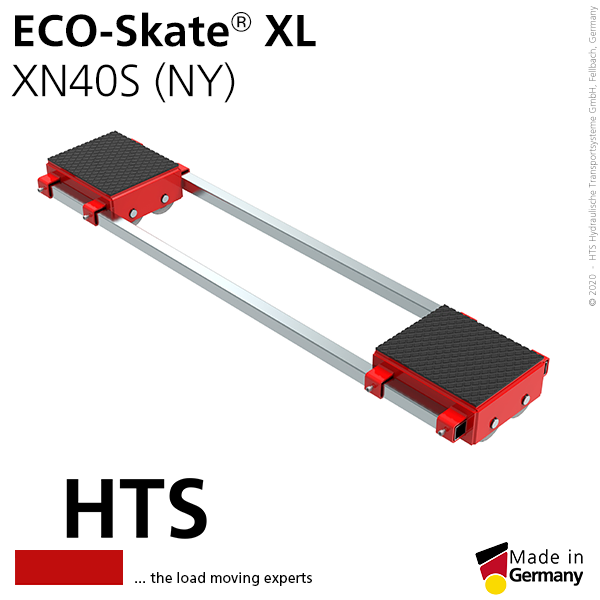

XN40S (NY)

ECO-Skate-XL-XN40S-NY
Article Number
10.400.03.20
Load Areas x Max. Capacity
2 x 20000 kg
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (318 x 382) mm
Adjustability
420 – 1660 mm
Dimensions: Length x Width x Height
456 x 410 x 180 mm
Weight
135 kg

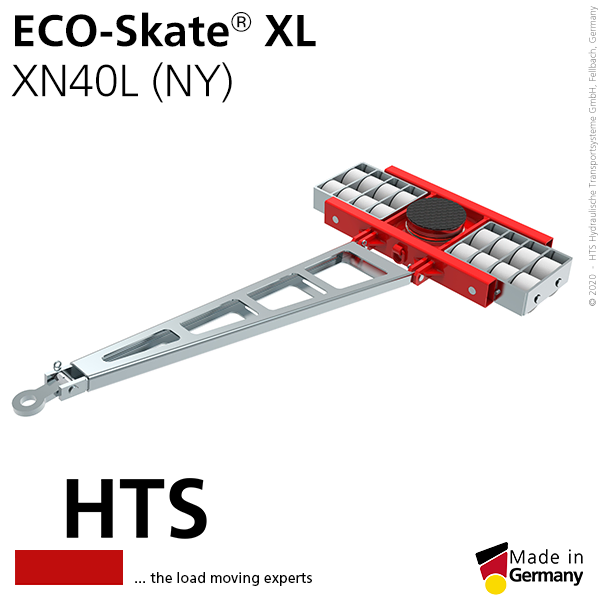

XN40L (NY)

ECO-Skate-XL-XN40L-NY
Article Number
10.400.03.10
Max. Capacity
40000 kg
Wheels
16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diameter
Ø 250 mm
Handle Length
1620 mm
Dimensions: Length x Width x Height
567 x 1138 x 180 mm
Weight
182 kg

XN30S (NY)

ECO-Skate-XL-XN30S-NY-174px
Article Number
10.300.03.20
Load Areas x Max. Capacity
2 x 15000 kg
Wheels
2 x 6 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (318 x 285) mm
Adjustability
320 – 1940 mm
Dimensions: Length x Width x Height
456 x 313 x 180 mm
Weight
108 kg

XN30L (NY)

ECO-Skate-XL-XN30L-NY-174px
Article Number
10.300.03.10
Max. Capacity
30000 kg
Wheels
12 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diameter
Ø 220 mm
Handle Length
1620 mm
Dimensions: Length x Width x Height
567 x 931 x 180 mm
Weight
149 kg

XN20S (NY)

ECO-Skate-XL-XN20S-NY
Article Number
10.200.03.20
Load Areas x Max. Capacity
2 x 10000 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (318 x 188) mm
Adjustability
220 – 1940 mm
Dimensions: Length x Width x Height
456 x 216 x 180 mm
Weight
81 kg

XN20L (NY)

ECO-Skate-XL-XN20L-NY
Article Number
10.200.03.10
Max. Capacity
20000 kg
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diameter
Ø 220 mm
Handle Length
1620 mm
Dimensions: Length x Width x Height
568 x 724 x 180 mm
Weight
127 kg

X64S (PU)

HTS ECO-Skate XL PU X64S (PU)
Article Number
10.640.02.20
Load Areas x Max. Capacity
2 x 32000 kg
Wheels
2 x 16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (400 x 300) mm
Adjustability
880 – 1600 mm
Dimensions: Length x Width x Height
579 x 880 x 180 mm
Weight
316 kg

X48S (PU)

ECO-Skate-XL-X48S-PU
Article Number
10.480.02.20
Load Areas x Max. Capacity
2 x 24000 kg
Wheels
2 x 12 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (400 x 300) mm
Adjustability
692 – 1690 mm
Dimensions: Length x Width x Height
579 x 692 x 180 mm
Weight
264 kg

X48L (PU)

ECO-Skate-XL-X48L-PU
Article Number
10.480.02.10
Max. Capacity
48000 kg
Wheels
24 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diameter
Ø 250 mm
Handle Length
1620 mm
Dimensions: Length x Width x Height
660 x 1671 x 180 mm
Weight
319 kg

X40S (PU)

ECO-Skate-XL-X40S-PU
Article Number
10.400.02.20
Load Areas x Max. Capacity
2 x 20000 kg
Wheels
2 x 10 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (318 x 480) mm
Adjustability
550 – 1650 mm
Dimensions: Length x Width x Height
456 x 507 x 180 mm
Weight
192 kg

X40L (PU)

ECO-Skate-XL-X40L-PU
Article Number
10.400.02.10
Max. Capacity
40000 kg
Wheels
20 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diameter
Ø 250 mm
Handle Length
1620 mm
Dimensions: Length x Width x Height
607 x 1335 x 180 mm
Weight
230 kg

X32S (PU)

ECO-Skate-XL-X32S-PU-174px
Article Number
10.320.02.20
Load Areas x Max. Capacity
2 x 16000 kg
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (318 x 382) mm
Adjustability
420 – 1660 mm
Dimensions: Length x Width x Height
456 x 410 x 180 mm
Weight
151 kg

X32L (PU)

ECO-Skate-XL-X32L-PU
Article Number
10.320.02.10
Max. Capacity
32000 kg
Wheels
16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diameter
Ø 250 mm
Handle Length
1620 mm
Dimensions: Length x Width x Height
567 x 1138 x 180 mm
Weight
196 kg

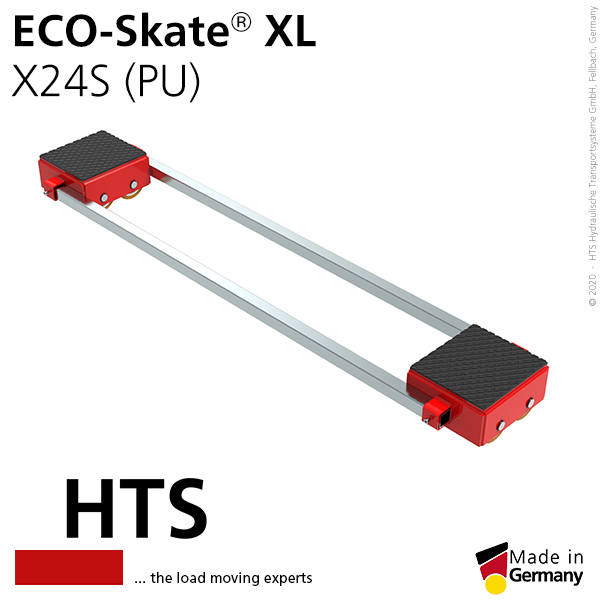

X24S (PU)

ECO-Skate-XL-X24S-PU
Article Number
10.240.02.20
Load Areas x Max. Capacity
2 x 12000 kg
Wheels
2 x 6 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (318 x 285) mm
Adjustability
320 – 1940 mm
Dimensions: Length x Width x Height
456 x 313 x 180 mm
Weight
119 kg

X24L (PU)

ECO-Skate-XL-X24L-PU
Article Number
10.240.02.10
Max. Capacity
24000 kg
Wheels
12 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diameter
Ø 220 mm
Handle Length
1620 mm
Dimensions: Length x Width x Height
567 x 931 x 180 mm
Weight
158 kg

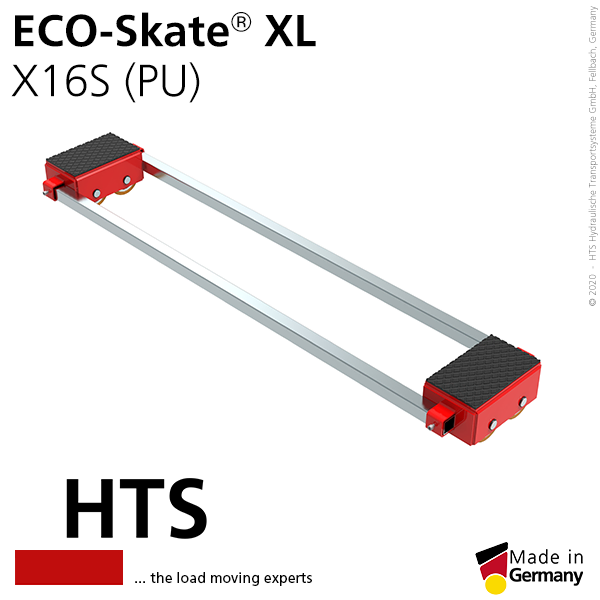

X16S (PU)

ECO-Skate-XL-X16S-PU
Article Number
10.160.02.20
Load Areas x Max. Capacity
2 x 8000 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (318 x 188) mm
Adjustability
220 – 1940 mm
Dimensions: Length x Width x Height
456 x 216 x 180 mm
Weight
87 kg

X16L (PU)

ECO-Skate-XL-X16L-PU
Article Number
10.160.02.10
Max. Capacity
16000 kg
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diameter
Ø 220 mm
Handle Length
1620 mm
Dimensions: Length x Width x Height
568 x 724 x 180 mm
Weight
133 kg

RFN60‑G‑CR (NY)

ECO-Skate ROTO RFN60-CR (NY)
Article Number
12.060.09.40
Max. Capacity
6000 kg
Wheels
16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Handle Length
1170 mm
Adjustability
792 – 1940 mm
Dimensions: Length x Width x Height
650 x 585 x 102 mm
Weight
43 kg

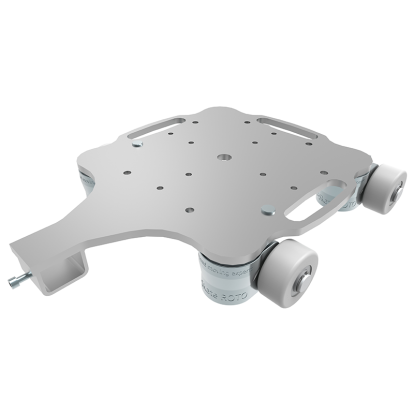

RFN30‑G‑CR (NY)

Transportfahrwerke ECO-Skate CR-Serie
Article Number
12.030.09.40
Max. Capacity
3000 kg
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Handle Length
1170 mm
Adjustability
540 – 1940 mm
Dimensions: Length x Width x Height
588 x 467 x 102 mm
Weight
33 kg

iN160D‑CR

HTS ECO-Skate DUO CR iN160D-CR
Article Number
12.160.01.30
Load Areas x Max. Capacity
2 x 8000 kg
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x Diameter
2 x Ø 150 mm
Handle Length
1170 mm
Adjustability
6 x (560 – 1300) mm
Dimensions: Length x Width x Height
963 x 1784 x 110 mm
Weight
80 kg

iN80D‑CR

HTS ECO-Skate DUO CR iN80D-CR
Article Number
12.080.01.30
Load Areas x Max. Capacity
2 x 4000 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x Diameter
2 x Ø 150 mm
Handle Length
1170 mm
Adjustability
6 x (560 – 1300) mm
Dimensions: Length x Width x Height
717 x 1581 x 110 mm
Weight
46 kg

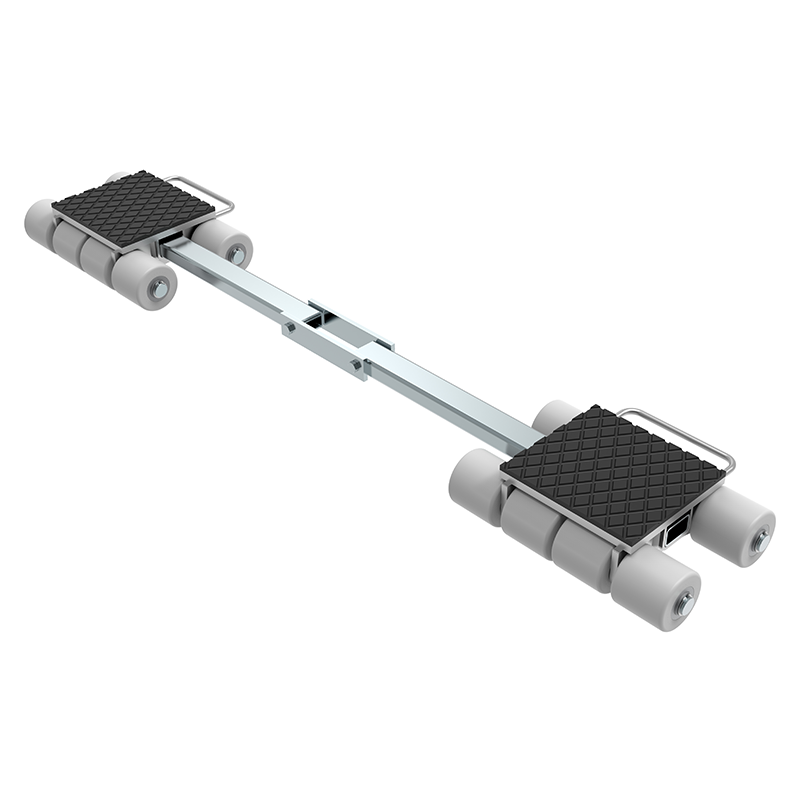

iN160S‑CR

HTS ECO-Skate CR iN160S-CR
Article Number
12.160.01.20
Load Areas x Max. Capacity
2 x 8000 kg
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x (Length x Width)
2 x (200 x 220) mm
Adjustability
560 – 1095 mm
Dimensions: Length x Width x Height
291 x 382 x 110 mm
Weight
36 kg

iN160L‑CR

HTS ECO-Skate CR iN160L-CR
Article Number
12.160.01.10
Max. Capacity
16000 kg
Wheels
16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
528 x 982 x 110 mm
Weight
60 kg

iN120S‑CR

HTS ECO-Skate CR iN120S-CR
Article Number
12.120.01.20
Load Areas x Max. Capacity
2 x 6000 kg
Wheels
2 x 6 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x (Length x Width)
2 x (180 x 170) mm
Adjustability
460 – 1145 mm
Dimensions: Length x Width x Height
295 x 295 x 110 mm
Weight
29 kg

iN120L‑CR

HTS ECO-Skate CR iN120L-CR
Article Number
12.120.01.10
Max. Capacity
12000 kg
Wheels
12 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
528 x 780 x 110 mm
Weight
50 kg

iN80S‑CR

HTS ECO-Skate CR iN80S-CR
Article Number
12.080.01.20
Load Areas x Max. Capacity
2 x 4000 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x (Length x Width)
2 x (120 x 220) mm
Adjustability
420 – 1100 mm
Dimensions: Length x Width x Height
291 x 220 x 110 mm
Weight
25 kg

iN80L‑CR

HTS ECO-Skate CR iN80L-CR
Article Number
12.080.01.10
Max. Capacity
8000 kg
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Area Diameter
Ø 150 mm
Handle Length
1000 mm
Dimensions: Length x Width x Height
339 x 483 x 110 mm
Weight
21 kg

iN40S‑CR

HTS ECO-Skate CR iN40S-CR
Article Number
12.040.01.20
Load Areas x Max. Capacity
2 x 2000 kg
Wheels
2 x 2 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Load Areas x (Length x Width)
2 x (150 x 75) mm
Adjustability
120 – 880 mm
Dimensions: Length x Width x Height
246 x 120 x 110 mm
Weight
12 kg

iN40L‑CR

HTS ECO-Skate CR iN40L-CR
Article Number
12.040.01.10
Max. Capacity
4000 kg
Wheels
4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Area Diameter
Ø 150 mm
Handle Length
1000 mm
Dimensions: Length x Width x Height
238 x 268 x 110 mm
Weight
12 kg

iN200S (NY)

ECO-Skate-IDEAL-iN200S-NY
Article Number
10.200.01.20
Load Areas x Max. Capacity
2 x 10000 kg
Wheels
2 x 10 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x (Length x Width)
2 x (200 x 220) mm
Adjustability
695 – 1403 mm
Dimensions: Length x Width x Height
291 x 500 x 110 mm
Weight
57 kg

iN200L (NY)

ECO-Skate-IDEAL-iN200L-NY
Article Number
10.200.01.10
Max. Capacity
20000 kg
Wheels
20 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
568 x 1192 x 110 mm
Weight
89 kg

iN160S (NY)

ECO-Skate-IDEAL-iN160S-NY
Article Number
10.160.01.20
Load Areas x Max. Capacity
2 x 8000 kg
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x (Length x Width)
2 x (200 x 220) mm
Adjustability
560 – 1095 mm
Dimensions: Length x Width x Height
291 x 382 x 110 mm
Weight
36 kg

iN160L (NY)

ECO-Skate-IDEAL-iN160L-NY
Article Number
10.160.01.10
Max. Capacity
16000 kg
Wheels
16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
528 x 982 x 110 mm
Weight
60 kg

iN120S (NY)

ECO-Skate-IDEAL-iN120S-NY
Article Number
10.120.01.20
Load Areas x Max. Capacity
2 x 6000 kg
Wheels
2 x 6 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x (Length x Width)
2 x (180 x 170) mm
Adjustability
460 – 1145 mm
Dimensions: Length x Width x Height
295 x 295 x 110 mm
Weight
29 kg

iN120L (NY)

ECO-Skate-IDEAL-iN120L-NY
Article Number
10.120.01.10
Max. Capacity
12000 kg
Wheels
12 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
528 x 780 x 110 mm
Weight
50 kg

iN80S (NY)

ECO-Skate-IDEAL-iN80S-NY
Article Number
10.080.01.20
Load Areas x Max. Capacity
2 x 4000 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x (Length x Width)
2 x (120 x 220) mm
Adjustability
420 – 1100 mm
Dimensions: Length x Width x Height
291 x 220 x 110 mm
Weight
25 kg

iN80L (NY)

ECO-Skate-IDEAL-iN80L-NY
Article Number
10.080.01.10
Max. Capacity
8000 kg
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Area Diameter
Ø 150 mm
Handle Length
1000 mm
Dimensions: Length x Width x Height
339 x 483 x 110 mm
Weight
21 kg

iN40S (NY)

ECO-Skate-IDEAL-iN40S-NY
Article Number
10.040.01.20
Load Areas x Max. Capacity
2 x 2000 kg
Wheels
2 x 2 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x (Length x Width)
2 x (150 x 75) mm
Adjustability
120 – 880 mm
Dimensions: Length x Width x Height
246 x 120 x 110 mm
Weight
12 kg

iN40L (NY)

ECO-Skate-IDEAL-iN40L-NY
Article Number
10.040.01.10
Max. Capacity
4000 kg
Wheels
4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Area Diameter
Ø 150 mm
Handle Length
1000 mm
Dimensions: Length x Width x Height
238 x 268 x 110 mm
Weight
12 kg

i150S (PU)

ECO-Skate-IDEAL-i150S-PU
Article Number
10.150.00.20
Load Areas x Max. Capacity
2 x 75000 kg
Wheels
2 x 10 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x (Length x Width)
2 x (200 x 220) mm
Adjustability
695 – 1403 mm
Dimensions: Length x Width x Height
291 x 500 x 110 mm
Weight
67 kg

i150L (PU)

ECO-Skate-IDEAL-i150L-PU
Article Number
10.150.00.10
Max. Capacity
15000 kg
Wheels
20 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
568 x 1192 x 110 mm
Weight
99 kg

i120S (PU)

ECO-Skate-IDEAL-i120S-PU
Article Number
10.120.00.20
Load Areas x Max. Capacity
2 x 6000 kg
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x (Length x Width)
2 x (200 x 220) mm
Adjustability
560 – 1095 mm
Dimensions: Length x Width x Height
291 x 382 x 110 mm
Weight
45 kg

i120L (PU)

ECO-Skate-IDEAL-i120L-PU
Article Number
10.120.00.10
Max. Capacity
12000 kg
Wheels
16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
528 x 982 x 110 mm
Weight
68 kg

i90S (PU)

ECO-Skate-IDEAL-i90S-PU
Article Number
10.090.00.20
Load Areas x Max. Capacity
2 x 4500 kg
Wheels
2 x 6 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x (Length x Width)
2 x (180 x 170) mm
Adjustability
460 – 1145 mm
Dimensions: Length x Width x Height
295 x 295 x 110 mm
Weight
36 kg

i90L (PU)

ECO-Skate-IDEAL-i90L-PU
Article Number
10.090.00.10
Max. Capacity
9000 kg
Wheels
12 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Area Diameter
Ø 170 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
528 x 780 x 110 mm
Weight
57 kg

i60S (PU)

ECO-Skate-IDEAL-i60S-PU
Article Number
10.060.00.20
Load Areas x Max. Capacity
2 x 3000 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Load Areas x (Length x Width)
2 x (120 x 220) mm
Adjustability
420 – 1100 mm
Dimensions: Length x Width x Height
291 x 220 x 110 mm
Weight
29 kg

i60L (PU)

ECO-Skate-IDEAL-i60L-PU-174px
Article Number
10.060.00.10
Max. Capacity
6000 kg
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Area Diameter
Ø 150 mm
Handle Length
1000 mm
Dimensions: Length x Width x Height
339 x 483 x 110 mm
Weight
26 kg

i30S (PU)

ECO-Skate-IDEAL-i30S-PU
Article Number
10.030.00.20
Load Areas x Max. Capacity
2 x 1500 kg
Wheels
2 x 2 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x (Length x Width)
2 x (150 x 75) mm
Adjustability
120 – 880 mm
Dimensions: Length x Width x Height
246 x 120 x 110 mm
Weight
14 kg

i30L (PU)

ECO-Skate-IDEAL-i30L-PU
Article Number
10.030.00.10
Max. Capacity
3000 kg
Wheels
4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Area Diameter
Ø 150 mm
Handle Length
1000 mm
Dimensions: Length x Width x Height
238 x 268 x 110 mm
Weight
14 kg

ICX32S TLS (PU)

HTS ECO-Skate ISOCON XL (PU) - ICX32S TLS (PU)
Article Number
10.320.02.25
Load Areas x Max. Capacity
2 x 16000 kg
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Handle Length
n.A.
Adjustability
410 – 2259 mm
Dimensions: Length x Width x Height / Container Lock
456 x 2669 x 221 / 298 mm
Weight
199 kg

ICX32D TLS (PU)

HTS ECO-Skate ISOCON XL (PU) - ICX32D TLS (PU)
Article Number
10.320.02.35
Load Areas x Max. Capacity
2 x 16000 kg
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Handle Length
1620 mm
Distance cone center
2259 mm
Dimensions: Length x Width x Height / Container Lock
1847 x 2983 x 221 / 298 mm
Weight
415 kg

ICX16S TLS (PU)

HTS ECO-Skate ISOCON XL (PU) - ICX16S TLS (PU)
Article Number
10.160.02.25
Load Areas x Max. Capacity
2 x 8000 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 150 x 85 / Ø 30 mm
Handle Length
n.A.
Adjustability
216 – 2259 mm
Dimensions: Length x Width x Height / Container Lock
456 x 2474 x 221 / 298 mm
Weight
104 kg

ICX16D TLS (PU)

HTS ECO-Skate ISOCON XL (PU) - ICX16D TLS (PU)
Article Number
10.160.02.35
Load Areas x Max. Capacity
2 x 8000 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Handle Length
1620 mm
Distance cone center
2259 mm
Dimensions: Length x Width x Height / Container Lock
1275 x 2636 x 221 / 298 mm
Weight
215 kg

IC120S (PU)

Article Number
10.120.00.25
Load Areas x Max. Capacity
2 x 6000 kg
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Handle Length
n.A.
Adjustability
382 – 2259 mm
Dimensions: Length x Width x Height / Container Lock
291 x 2641 x 102 / 162 mm
Weight
50 kg

IC120D (PU)

ECO-Skate-ISOCON-IC120S-PU
Article Number
10.120.00.35
Load Areas x Max. Capacity
2 x 6000 kg
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Handle Length
1170 mm
Distance cone center
2259 mm
Dimensions: Length x Width x Height / Container Lock
963 x 2740 x 102 / 162 mm
Weight
88 kg

IC60S (PU)

ECO-Skate-ISOCON-IC60S-PU
Article Number
10.060.00.25
Load Areas x Max. Capacity
2 x 3000 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Handle Length
n.A.
Adjustability
220 – 2259 mm
Dimensions: Length x Width x Height / Container Lock
291 x 2500 x 102 / 162 mm
Weight
35 kg

IC60D (PU)

ECO-Skate-ISOCON-IC60D-PU
Article Number
10.060.00.35
Load Areas x Max. Capacity
2 x 3000 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Handle Length
1170 mm
Distance cone center
2259 mm
Dimensions: Length x Width x Height / Container Lock
717 x 2540 x 102 / 162 mm
Weight
60 kg

PU Ø85x87xØ25

ECO-Skate-Rollen-Polyurethanrollen-PU-Ø85
Article Number
11.085.00.14
Max. Capacity
750 kg
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Weight
1.2 kg
Fits into …
IDEAL, DUO, ISOCON, ROTO

M25L (PU)

ECO-Skate-MINI-M25L-PU
Article Number
10.025.07.10
Max. Capacity
2500 kg
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 50 x 46 / Ø 15 mm
Load Areas x (Length x Width)
80 x 80 mm
Handle Length
1000 mm
Dimensions: Length x Width x Height
250 x 329 x 60 mm
Weight
11 kg

M25S (PU)

ECO-Skate-MINI-M25S-PU
Article Number
10.025.07.20
Load Areas x Max. Capacity
2 x 1250 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 50 x 46 / Ø 15 mm
Load Areas x (Length x Width)
2 x (75 x 75) mm
Adjustability
110 – 690 mm
Dimensions: Length x Width x Height
162 x 114 x 60 mm
Weight
6 kg

Conjunto M25L (PU) + M25S (PU)

ECO-Skate-MINI-M25L-PU-M25S-PU-Set
Weight
5000 kg

M50L (PU)

ECO-Skate-MINI-M50L-PU
Article Number
10.050.07.10
Max. Capacity
5000 kg
Wheels
16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 50 x 46 / Ø 15 mm
Load Areas x (Length x Width)
80 x 80 mm
Handle Length
1000 mm
Dimensions: Length x Width x Height
250 x 533 x 60 mm
Weight
15 kg

M50S (PU)

ECO-Skate-MINI-M50S-PU
Article Number
10.050.07.20
Load Areas x Max. Capacity
2 x 2500 kg
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 50 x 46 / Ø 15 mm
Load Areas x (Length x Width)
2 x (75 x 150) mm
Adjustability
221 – 584 mm
Dimensions: Length x Width x Height
162 x 221 x 60 mm
Weight
10 kg

Conjunto M50L (PU) + M50S (PU)

Transportfahrwerk ECO-Skate MINI PU M50L+M50S Set
Weight
10000 kg
